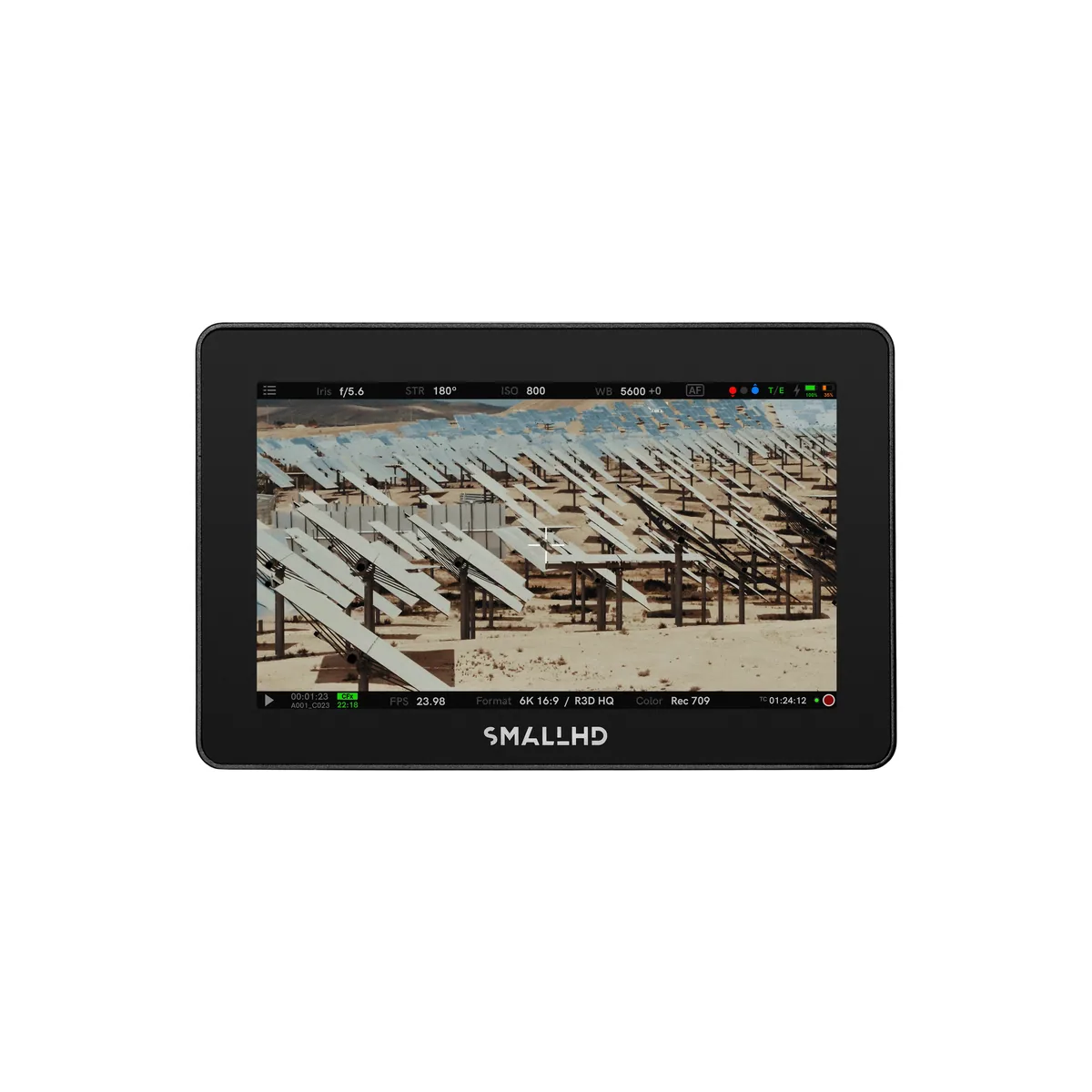

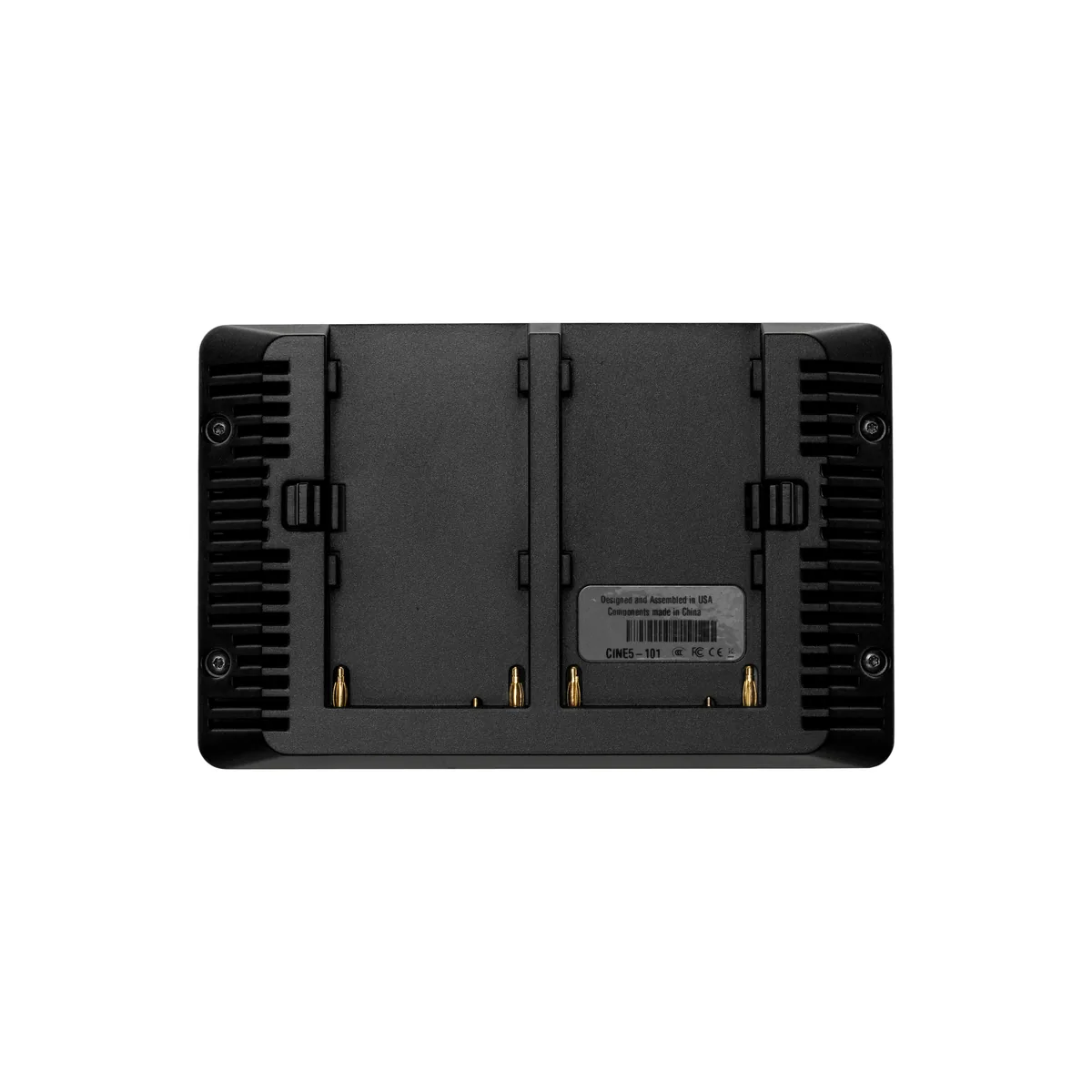

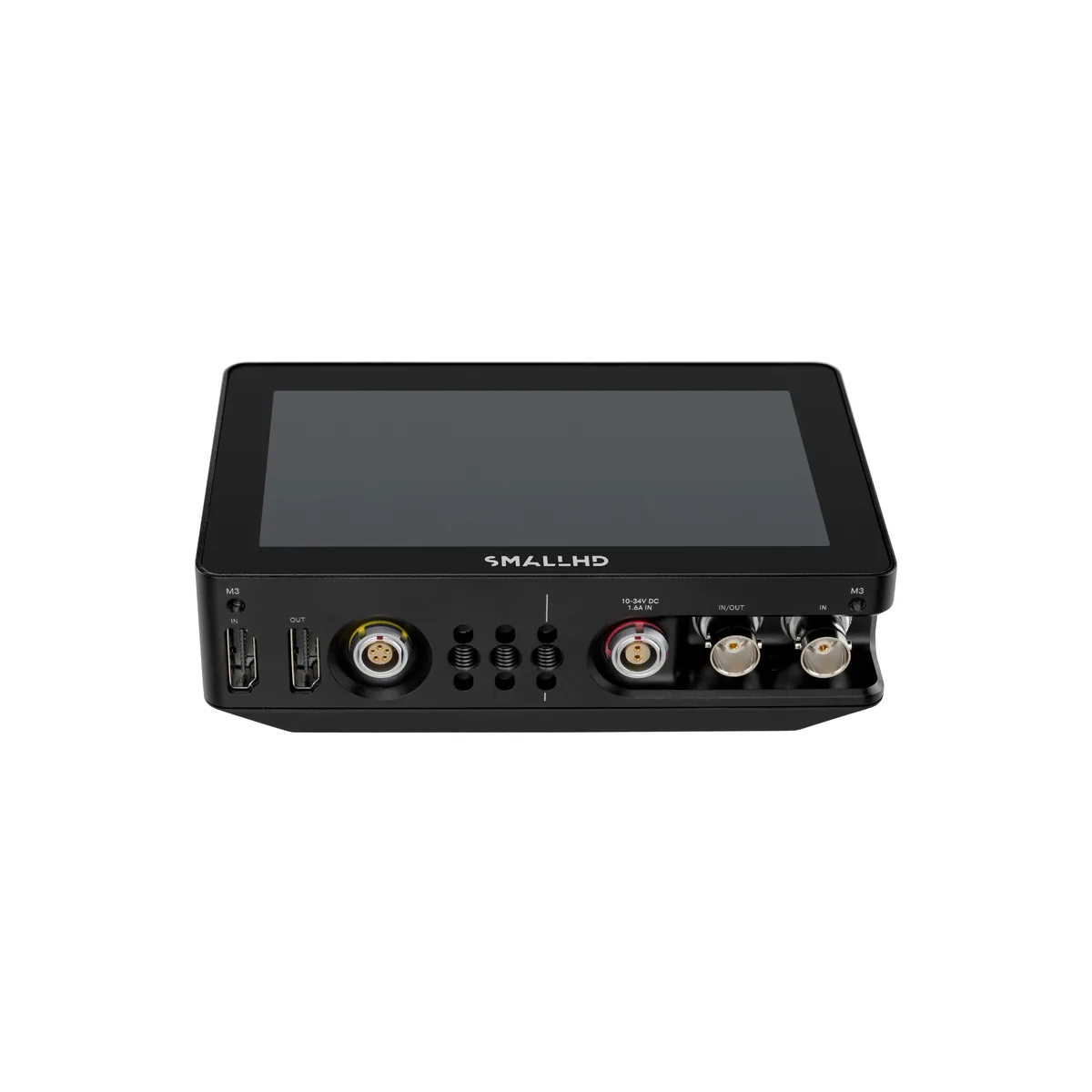

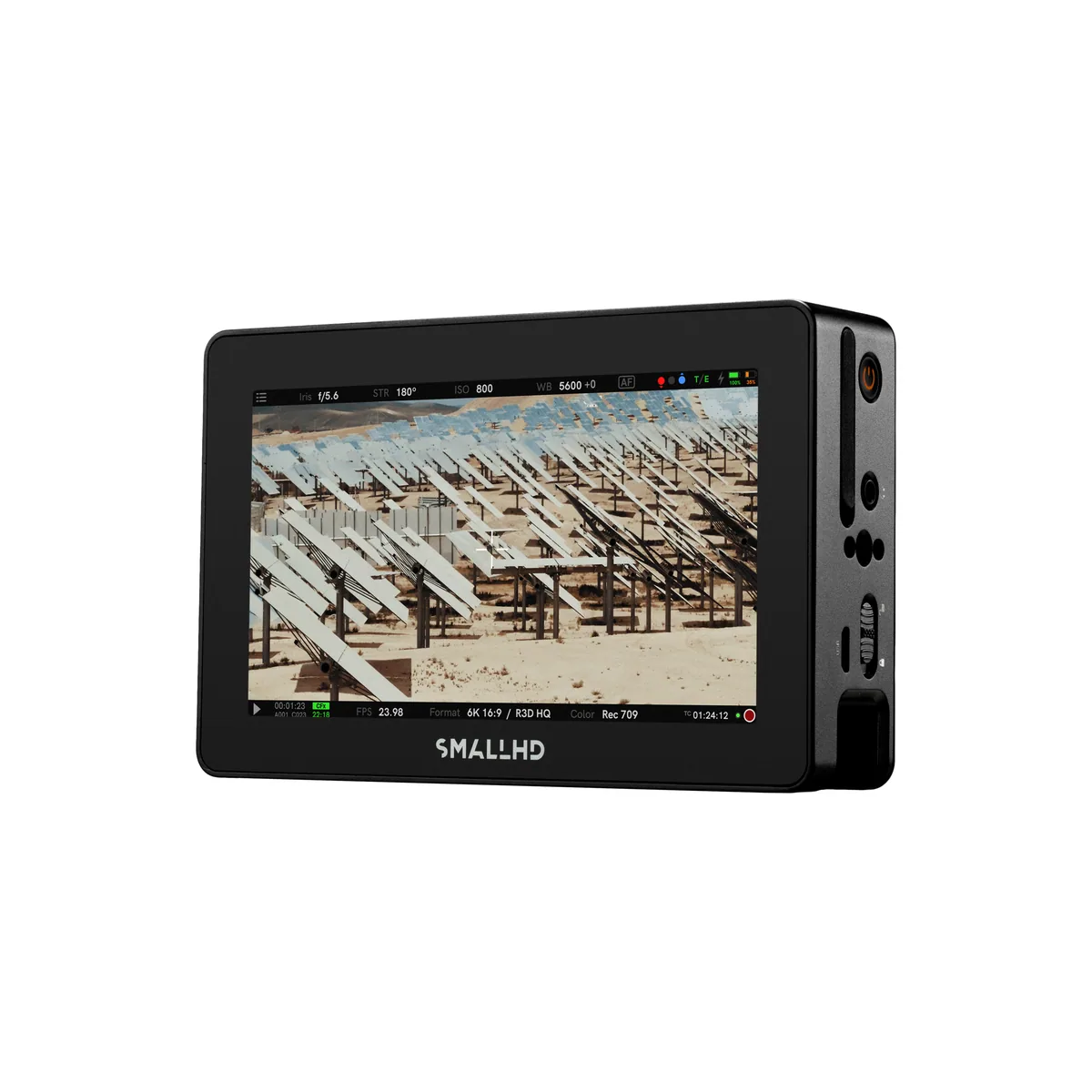

SmallHD CINE 5 Touchscreen On-Camera Monitor
SmallHD CINE 5 Touchscreen On-Camera Monitor
SmallHD CINE 5 Touchscreen On-Camera Monitor
SmallHD CINE 5 Touchscreen On-Camera Monitor
SmallHD CINE 5 Touchscreen On-Camera Monitor
SmallHD CINE 5 Touchscreen On-Camera Monitor
Small HD

SmallHD CINE 5 Touchscreen On-Camera Monitor

SKU
33.1.16-0526
Barcode
811786033423
  • 5" 1920 x 1080 Touchscreen Display
  • 2000 cd/m², 10-Bit LCD Panel, DCI P3
  • 2-Pin Locking Power Input
  • 5-Pin Locking USB for RED Camera Control

Overview

SmallHD CINE 5 Touchscreen On-Camera Monitor by Small HD, model 33.1.16-0526. Listed under Production Monitors in our Video range.

Key features

  • 5″ 1920 x 1080 Touchscreen Display
  • 2000 cd/m², 10-Bit LCD Panel, DCI P3
  • 2-Pin Locking Power Input
  • 5-Pin Locking USB for RED Camera Control

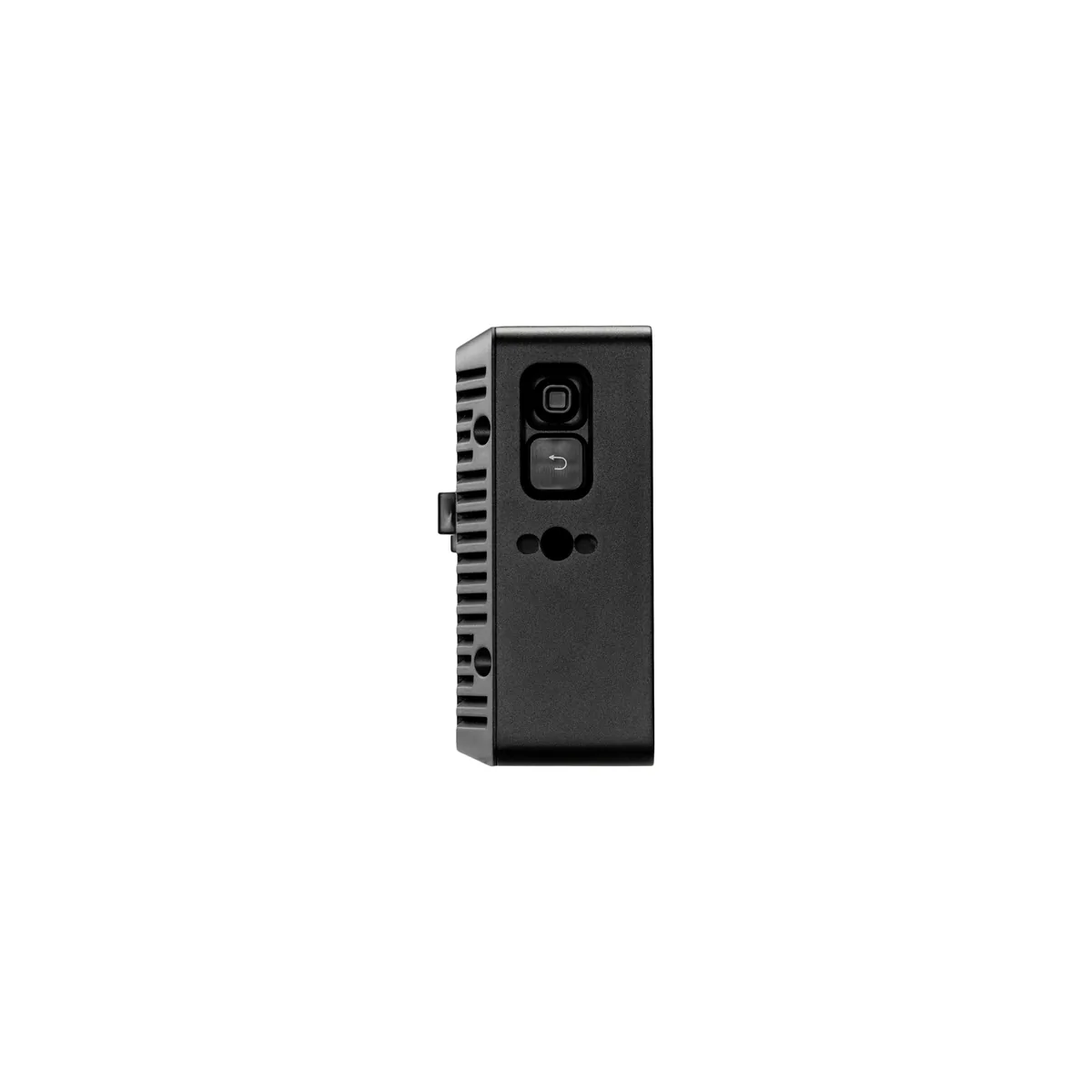

  • Side-Mounted Joystick, Back Button
  • 1 x HDMI Input, 1 x HDMI Output

Warranty: 1 year manufacturer warranty.

Specifications

Display

Panel TypeLCD
Display Size5.0" / 12.7 cm
Resolution1920 x 1080
Aspect Ratio16:9
TouchscreenYes
Maximum Brightness2000 cd/m 2
Bit Depth / Colour Support10-Bit (1.07 Billion Colours)
Pixels Per Inch (ppi)440 ppi
Colour Gamut100% DCI-P3
Image ControlsAnamorphic De-Squeeze, False Colour, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Video1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Loop Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output
Embedded AudioHDMI: 8-Channel SDI: 8-Channel
Audio I/O1 x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNone
Power I/O1 x LEMO 2-Pin (34 VDC) Input
Other I/O1 x LEMO 5-Pin 2.0 Output
Media/Memory Card SlotNone

Format Support

Video FormatHDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94
Video Signal ConversionSDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50

Mounting

Mounting4 x 1/4"-20 Female

General

MaterialAluminium

In the box

  • SmallHD CINE 5 Touchscreen On-Camera Monitor
