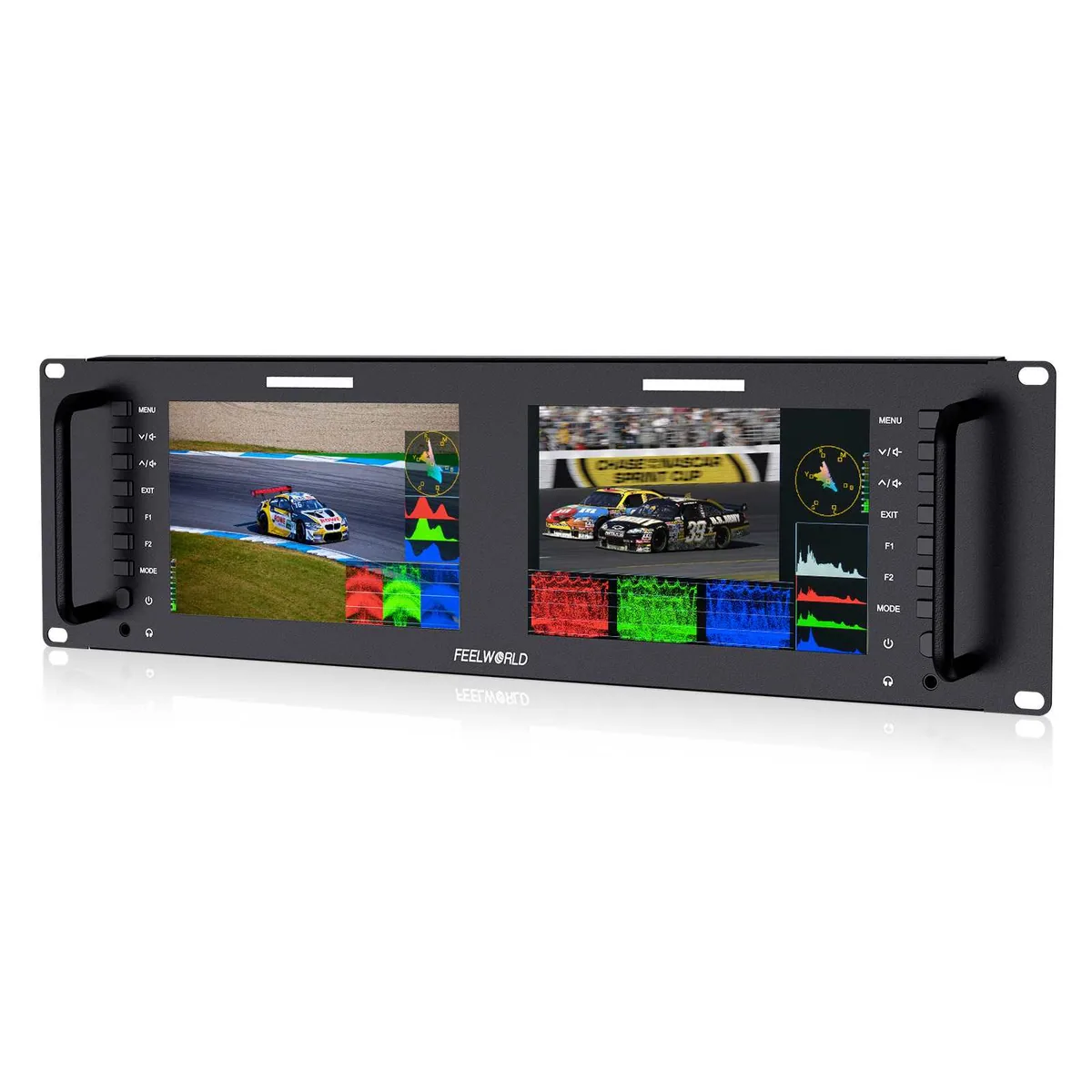

FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor
Feelworld

FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor

SKU
D71PLUS
Barcode
71
  • Two 7" 1900 x 1200 IPS Displays
  • 3G-SDI, HDMI, Composite BNC I/O
  • Up to 4K Input via HDMI, 1080p via SDI
  • LAN Control of up to Multiple Units

Overview

FeelWorld D71 PLUS Dual 7″ 3 RU Rackmount 4K HDMI/SDI Monitor by Feelworld, model D71PLUS. Listed under Production Monitors in our Video range.

Weight: 1.890 kg.

Key features

  • Two 7″ 1900 x 1200 IPS Displays
  • 3G-SDI, HDMI, Composite BNC I/O
  • Up to 4K Input via HDMI, 1080p via SDI
  • LAN Control of up to Multiple Units
  • 160° L/R Viewing Angle
  • RCA Audio Inputs, Headphone Outputs

Warranty: 1 year manufacturer warranty.

Specifications

Display

Panel TypeIPS-Type LCD
Display Size7.0" / 17.8 cm
Resolution1920 x 1200
Aspect Ratio16:10
Viewing AngleHorizontal: 160° (80/80) Vertical: 160° (80/80)
TouchscreenNo
Maximum Brightness450 nits / cd/m 2
Contrast Ratio1100:1
Dot Pitch0.07875 x 0.07875 mm
HDR CompatibilityNone
Pixels Per Inch (ppi)323 ppi
Image ControlsAnamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O2 x BNC (3G-SDI) Input 2 x BNC (Composite) Input 2 x HDMI 1.4 Input 2 x BNC (3G-SDI) Output 2 x BNC (Composite) Output 2 x HDMI 1.4 Output
Audio I/O2 x 2RCA Input 2 x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNone
Power I/O1 x XLR 4-Pin (3 A / 12 VDC) Input 1 x Barrel (3 A / 12 VDC) Input
Other I/O1 x DE-9/DB-9 (Tally) Input 1 x RJ45 (LAN) 1 x Mini-USB (Firmware), (LUT Upload) Input
Media/Memory Card SlotNone
Wi-FiNone
BluetoothNone
Mobile App CompatibleNo *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility

Format Support

Video FormatSDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i
Gamma CurveRec709

Power

DC Input Power9 to 24 VDC
Power Consumption21 W

Mounting

Rack Form Factor3 RU

Environmental

Operating Temperature-10 to 60°C
Storage Temperature-30 to 70°C

General

MaterialMetal
Dimensions482.6 x 132 x 30.5 mm
Weight1.890 kg

In the box

  • FeelWorld D71 PLUS Dual 7" 3 RU Rackmount 4K HDMI/SDI Monitor
  • Power Adapter
  • Tally Kit
