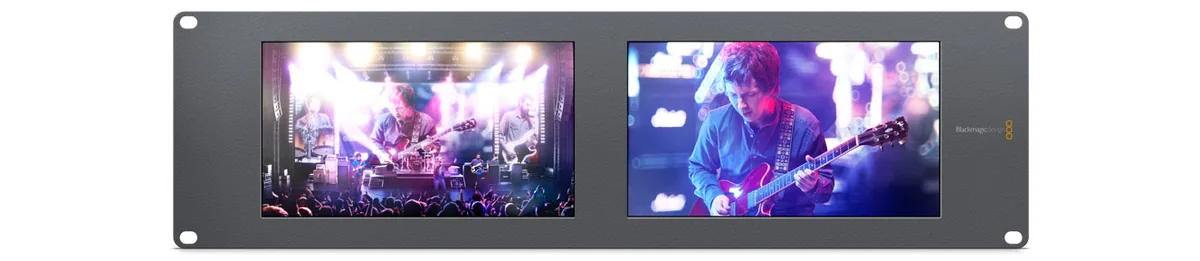

Blackmagic Design SmartView Duo Rackmountable Dual 8″ LCD Monitors
Blackmagic

Blackmagic Design SmartView Duo Rackmountable Dual 8″ LCD Monitors

SKU
HDL-SMTVDUO2
Model
SmartView Duo
Barcode
9338716004465
  • 3G/HD/SD-SDI Inputs, Both with Loop-Out
  • Integrated Tally for Live Broadcast
  • Ethernet Input for Adjustments
  • Upgradeable Firmware via USB

Overview

Blackmagic Design SmartView Duo Rackmountable Dual 8″ LCD Monitors by Blackmagic. Listed under Production Monitors in our Video range.

Weight: Not specified by manufacturer.

Key features

  • 3G/HD/SD-SDI Inputs, Both with Loop-Out
  • Integrated Tally for Live Broadcast
  • Ethernet Input for Adjustments
  • Upgradeable Firmware via USB
  • 2K, 1080i/p, 720p & 50/60 Hz SD Support

Specifications

Signal SystemDigital signal support for both 50 Hz (PAL) and 60 Hz (NTSC) regions
SDI InputSwitchable (auto-selects) between SD, HD and 3 Gb/s SDI. Reclocked loop-through output
Multi-Rate SupportAuto detection of 2K, HD or standard definition inputs
SDI Format Support525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Colour SpaceREC 601, REC 709
Video Sampling4:2:2 and 4:4:4
Colour Precision10-bit
Monitor TypeTFT active-matrix LCD
Screen Size2x 8" diagonal
Resolution800 x 480
Display Colours16.7 million colours
Viewing AngleNot specified by manufacturer (displays can rotate upside down for optimal viewing angle)
BrightnessNot specified by manufacturer
Contrast RatioTypically 500:1
Response Time< 15 ms
Inputs2x SD/HD/3G-SDI (switchable, with auto-detection of HD/SD/2K sources) 1x USB 2.0 (480 Mb/s for updates and configuration) 1x 9-pin D-type (standard parallel connector for tally) 1x 10/100 BaseT Ethernet (for configuration)
Outputs2x SD/HD/3G-SDI (loop-out) 1x 10/100 BaseT Ethernet (loop-out)
PlatformMac OS X and Windows software control
Remote ControlNo
Operating TemperatureNot specified by manufacturer
Power Requirements12-15V
Power Consumption< 20
Rack Space Height3 RU
Dimensions (WxHxD)48.3 x 13.3 x 2.5 cm SmartView Duo is actually less than 2.5 cm deep.
WeightNot specified by manufacturer

In the box

  • Blackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors
  • 12V Universal Power Supply with International Socket Adapters for All Countries
  • 1 Year Limited Warranty
