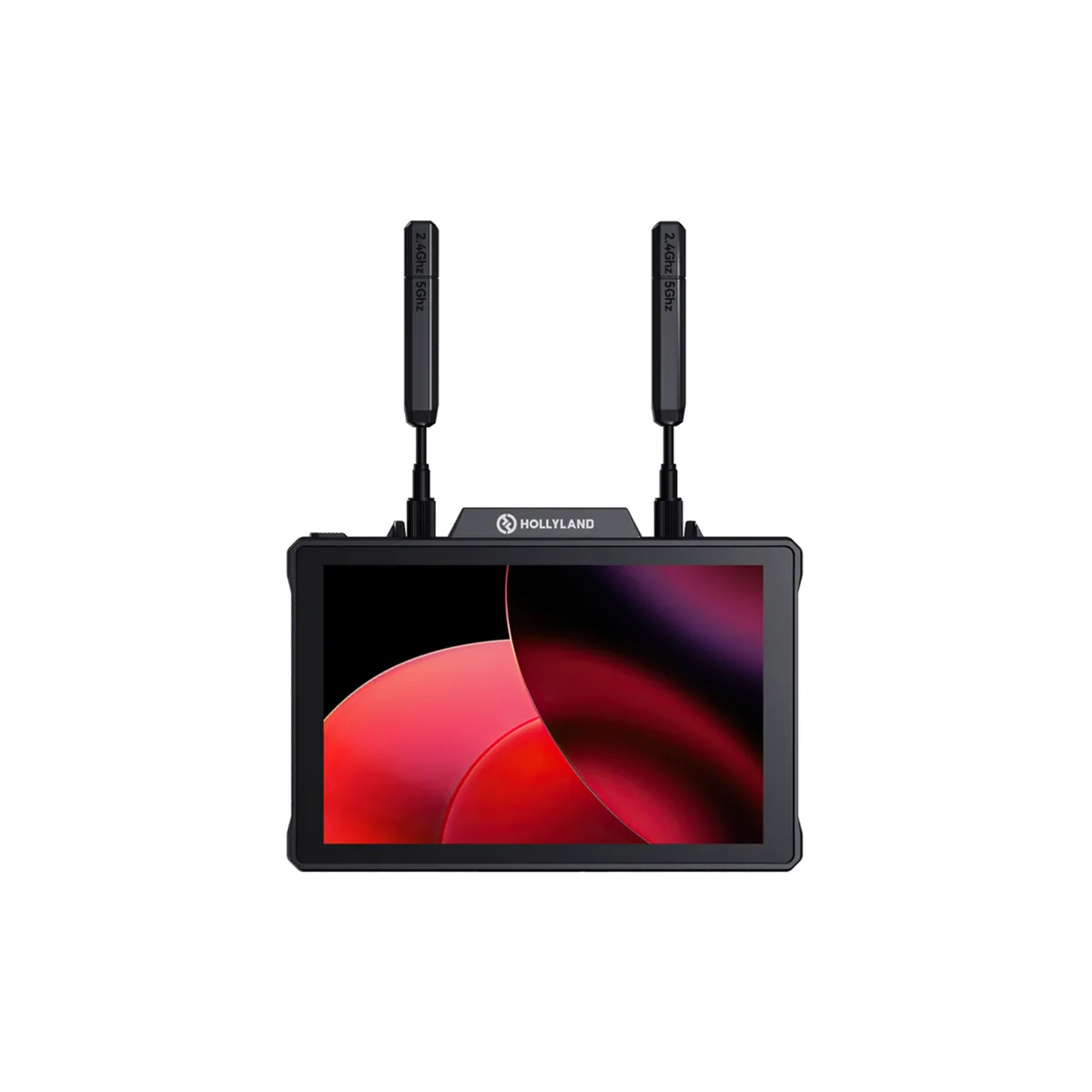

Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland Pyro 7 Video Transmission Monitoring Kit
Hollyland

Hollyland Pyro 7 Video Transmission Monitoring Kit

SKU
HL-PYRO VIDEO (7-INCH)
Model
PYRO S and PYRO 7 Kit
Barcode
191460007002

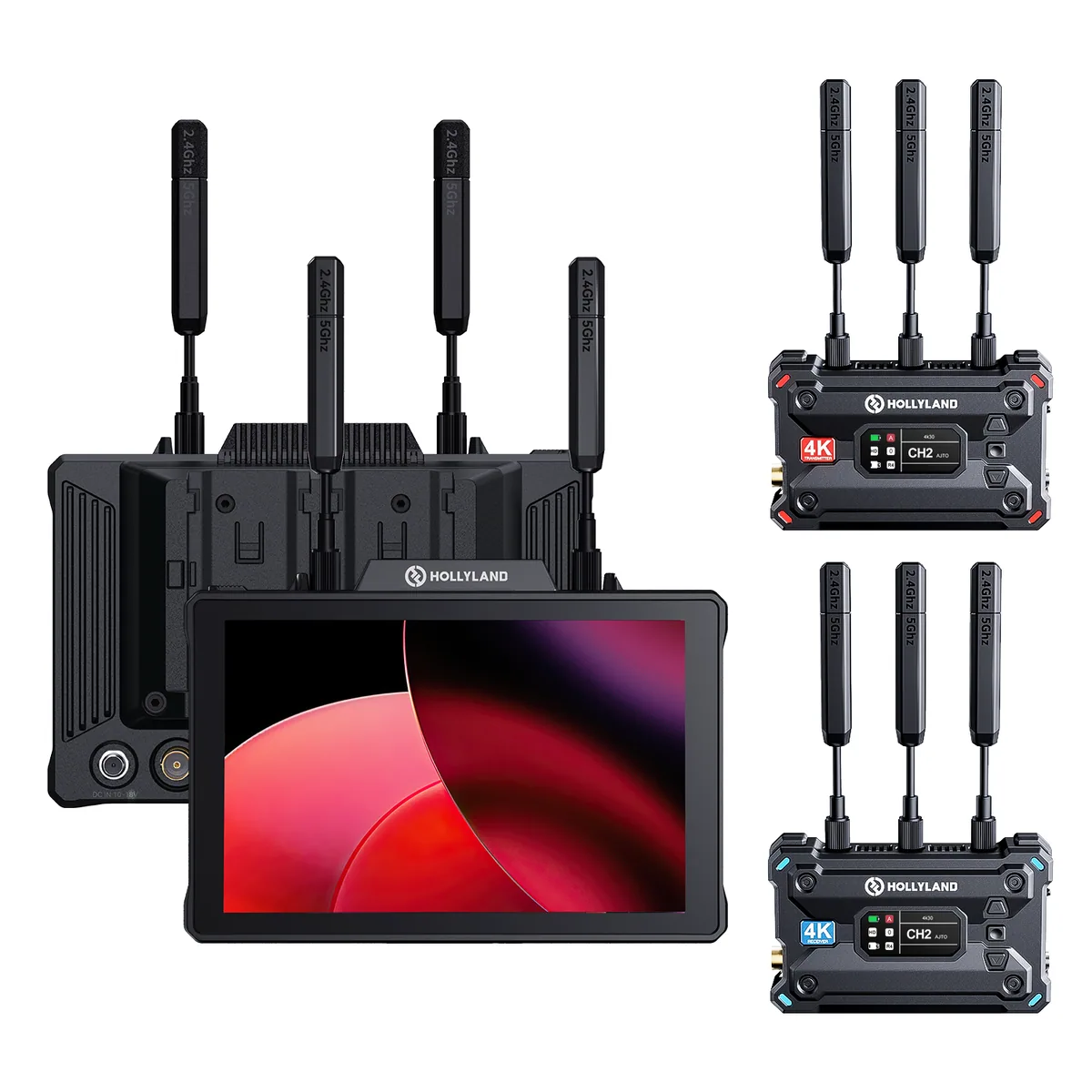

  • Pyro 7 Transceiver/Recording Monitor
  • Pyro S 4K Transmitter & Receiver Kit
  • Monitor Hood, Shoe Mount, Pyro 7 Handle
  • SDI/HDMI I/O, 1300' Transmission

Overview

Hollyland Pyro 7 Video Transmission Monitoring Kit by Hollyland, model PYRO S and PYRO 7 Kit. Listed under Production Monitors in our Video range.

Compatible with Hollyland Pyro 7. Weight: 1.2 lb / 545 g, Excluding Antenna.

Key features

  • Pyro 7 Transceiver/Recording Monitor
  • Pyro S 4K Transmitter & Receiver Kit
  • Monitor Hood, Shoe Mount, Pyro 7 Handle
  • SDI/HDMI I/O, 1300′ Transmission

Specifications

Key Specs

Display Size7.0" / 17.8 cm
Native Resolution1920 x 1200
TouchscreenYes
HDR SupportNo,
Video I/O1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 1.4b Input 1x HDMI 1.4b Output
Media/Memory Card SlotSingle Slot: SD/SDHC/SDXC
Video FormatHDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Phantom PowerNo
Built-In BatteryNo
Battery Type2x L-Series (Interchangeable Mount)
Power Consumption22 W (Maximum)
Mounting1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) 1x 1/4"-20 Female (Bottom)
ResolutionNot Specified by Manufacturer

Display

Panel TypeLCD
Aspect Ratio16:9
Maximum Brightness1200 nits / cd/m 2
Contrast Ratio1000:1
Pixels Per Inch (ppi)323 ppi
Response Time50 ms
Real-Time LUT MonitoringSDR
Image ControlsFocus Peaking, Waveform

Inputs / Outputs

Antenna I/O2x RP-SMA Male
Embedded AudioHDMI/SDI: 8-Channel
Audio I/O1x 1/8" / 3.5 mm Headphone Output
Power I/O1x Barrel Input
Other I/O1x USB-C (Firmware) Input
EncryptionNo
Wireless Range1300' / 396.2 m (Line-of-Sight) 650' / 198.1 m
Channel Bandwidth40 MHz, 20 MHz
Frequency RangeUS: 5.1 to 5.8 GHz US: 2.412 to 2.484 GHz
Latency60 ms
RF Power23 dBm
RF Sensitivity-80 dBm
Wi-FiNo
BluetoothNo
Mobile App CompatibleYes, Required: Android & iOS App Name: HollyView Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed

Format Support

Audio Format4-Channel
Wireless Video CompressionCompressed
Timecode SupportYes
Video Signal ConversionNo

Recording

Pulldown ConversionNo
Camera TriggerNo
Pre-Roll RecordNo
Closed Caption SupportNo
Reference InputNo

Power

Input Power10 to 18 VDC at 2.5 A

Environmental

Environmental ProtectionNo
CertificationsNo
Operating Temperature14 to 113°F / -10 to 45°C
Storage Temperature-40 to 140°F / -40 to 60°C

General

Internal StorageNo
MaterialAluminium, Magnesium
Dimensions7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm (Excluding Antenna)
Weight1.2 lb / 545 g, Excluding Antenna
CompatibilityHollyland Pyro 7

Wireless

Cellular SupportNo

Physical

ColourBlack

In the box

  • Hollyland Pyro 7 Wireless Transceiver Monitor
  • Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System
  • Hollyland Shoulder Strap for Pyro 7
  • Hollyland Monitor Hood for Pyro 7
  • Hollyland Side & Bottom-Mounted Aluminium Handle for Pyro 7 / Mars M1 Enhanced
  • Pyro Hard-Shell Case
  • Rotating Shoe Mount
