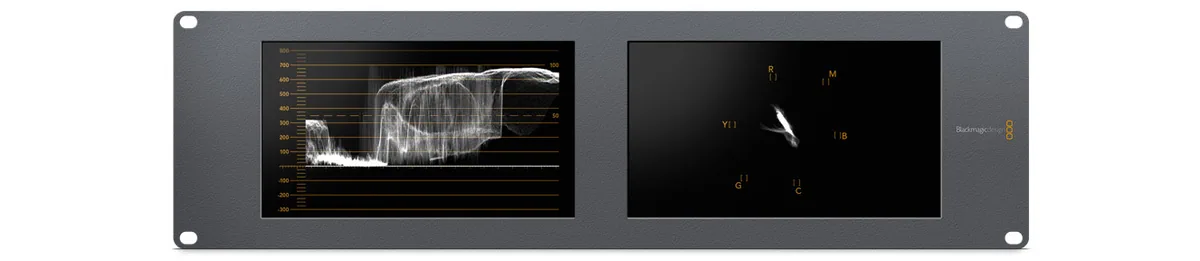

Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors
Blackmagic

Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors

SKU
HDL-SMTWSCOPEDUO4K2
Barcode
9338716004458
  • Supports SD/HD/3G/6G-SDI
  • Auto Format Sensing & Selection
  • 1 x Loop-Through SDI I/O per Monitor
  • Select Video, Waveform, Vectorscope

Overview

Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors by Blackmagic, model HDL-SMTWSCOPEDUO4K2. Listed under Production Monitors in our Video range.

Weight: 1.53 kg.

Key features

  • Supports SD/HD/3G/6G-SDI
  • Auto Format Sensing & Selection
  • 1 x Loop-Through SDI I/O per Monitor
  • Select Video, Waveform, Vectorscope
  • RGB Parade, YUV Parade, Histogram

Specifications

Supported FormatsUHD 4K 3840 x 2160p 23.98/24/25/29.97/30 2K 2048 x 1556PsF 23.98/24/25 2048 x 1080PsF 23.98/24/25 2048 x 1080p 23.98/24/25 HD 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 SD NTSC, PAL
SDI ComplianceSMPTE 259M SMPTE 292M SMPTE 296M SMPTE 372M SMPTE 425M
Video Sampling4:4:4 4:2:2
Bit Depth8-bit
Colour SpaceYUV RGB
Audio Sampling48 KHz
Screen Size8" (20.3 cm)
Inputs/OutputsVideo Inputs 1 x 6G/3G/HD/SD-SDI per monitor Video Outputs 1 x 6G/3G/HD/SD-SDI reclocked loop-through per monitor Audio Inputs 16 Channel embedded in SDI signal Audio Outputs 16 Channel embedded in SDI signal
Tally1 x 9-pin D connector
Computer Interface2 x Ethernet (1 x in, 1 x out) USB 2.0 (software updates and Ethernet configuration)
Computer RequirementsMac OS OS X 10.7 or later OS X 10.8 or later Windows Windows 7 Windows 8
Operating Temperature0 to 40°C
Storage Temperature-20 to 45°C
Relative Humidity0 to 90%, non-condensing
Power Requirements12 to 15 VDC
Power ConsumptionLess than 20 W
Dimensions (WxHxD)48.3 x 13.3 x 3.2 cm 3 RU
Weight1.53 kg

In the box

  • Blackmagic Design Smartscope Duo 4K Rack Mounted Dual 6G-SDI Monitors
  • Power Supply
  • Limited 1-Year Warranty
