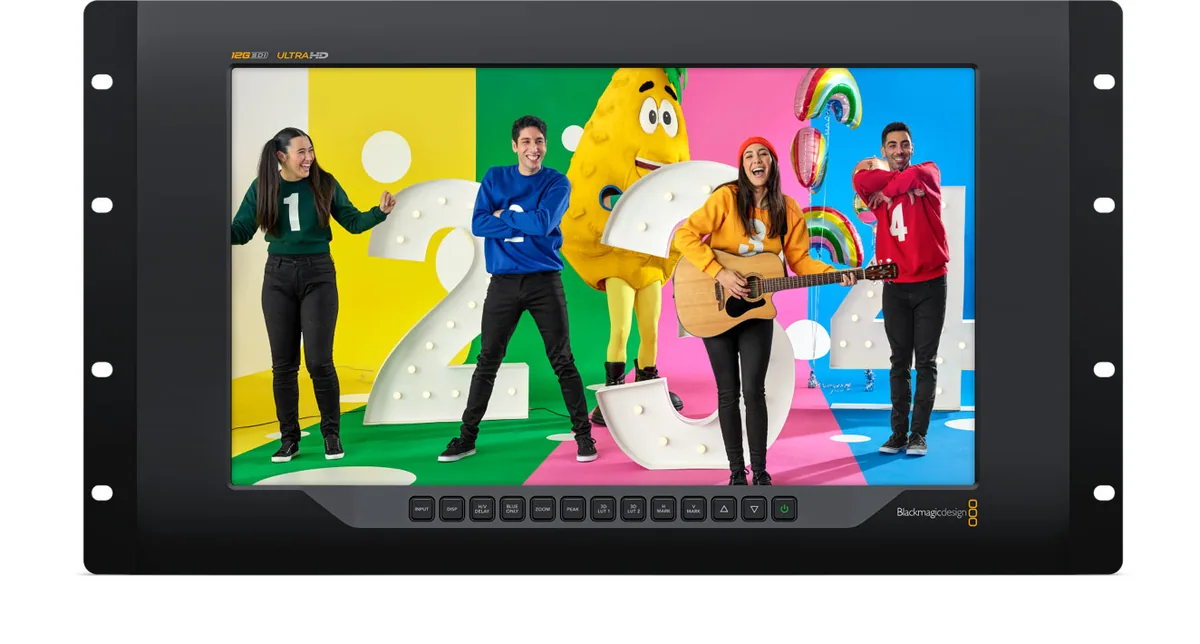

Blackmagic SmartView 4K G3 15.6″ DCI 4K Broadcast Monitor (6RU)
Blackmagic

Blackmagic SmartView 4K G3 15.6″ DCI 4K Broadcast Monitor (6RU)

SKU
HDL-SMTV4K12G3
Barcode
9338716008722
  • 15.6" 3840 x 2160 Active-Matrix TFT LCD
  • Supports up to DCI 4K60 Video
  • SMPTE 2110 IP In via RJ45, Optical Fiber
  • 2 x Multi-Rate 12G-SDI Inputs

Overview

Blackmagic SmartView 4K G3 15.6″ DCI 4K Broadcast Monitor (6RU) by Blackmagic, model HDL-SMTV4K12G3. Listed under Production Monitors in our Video range.

Key features

  • 15.6″ 3840 x 2160 Active-Matrix TFT LCD
  • Supports up to DCI 4K60 Video
  • SMPTE 2110 IP In via RJ45, Optical Fiber
  • 2 x Multi-Rate 12G-SDI Inputs
  • 1 x Optical Fiber SDI Socket
  • 12G-SDI Loop-Through Output, Tally Input

Specifications

Connections

SDI Inputs2
SDI Outputs1 loop out Reclocked video output that automatically switches to input selection.
SDI Rates270Mb, 1.5G, 3G, 6G, 12G.
Optical Video InputSFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI.
Multi Rate SupportAuto detection of 4K, Ultra HD, 2K, HD or SD inputs.
Updates and ConfigurationUSB
Ethernet1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Tally9-pin D connector

Standards

SD Format Support525i59.94 NTSC, 625i50 PAL
HD Format Support720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Format Support2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
Ultra HD Format Support2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Format Support4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B,SMPTE 425M, SMPTE 2082.
SDI Color SpaceREC 601, REC 709
SDI Auto SwitchingAutomatically selects between SD, HD, 3G, 6Gand 12G-SDI.
Video Sampling4:2:2 and 4:4:4

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)IGMP v2
SMPTE 2110-21 (Traffic Shaping)Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time ProtocolIEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
NMOS IS‑04 Discovery and Registrationv1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
NMOS IS-05 Connection Managementv1.1.2 NMOS BCP‑002‑01 Natural Grouping
NMOS BCP‑004‑01Receiver capabilities
CodeBlackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.

Software

Internal Software UpgradeVia included firmware updater software.
Settings ControlVia USB or Ethernet.
Operating SystemsMac 12.0 Monterey, Mac 13.0 Ventura or later. Windows 10, 64-bit. Windows 11.

Display

Display Element15.6" TFT Active Matrix LCD
Display Resolution3840 x 2160 pixels
Response25 ms
Contrast Ratio1000:1
Color Depth16.7 million colors

Power Requirements

Power Supply1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use.
Power Consumption24 W
Physical Installation6 rack units.

Environmental

Operating Temperature0° to 40° C (32° to 104° F)
Storage Temperature-20° to 60° C (-4° to 140° F)
Relative Humidity0% to 90% non-condensing

In the box

  • Blackmagic SmartView 4K G3 15.6" DCI 4K Broadcast Monitor (6RU)
