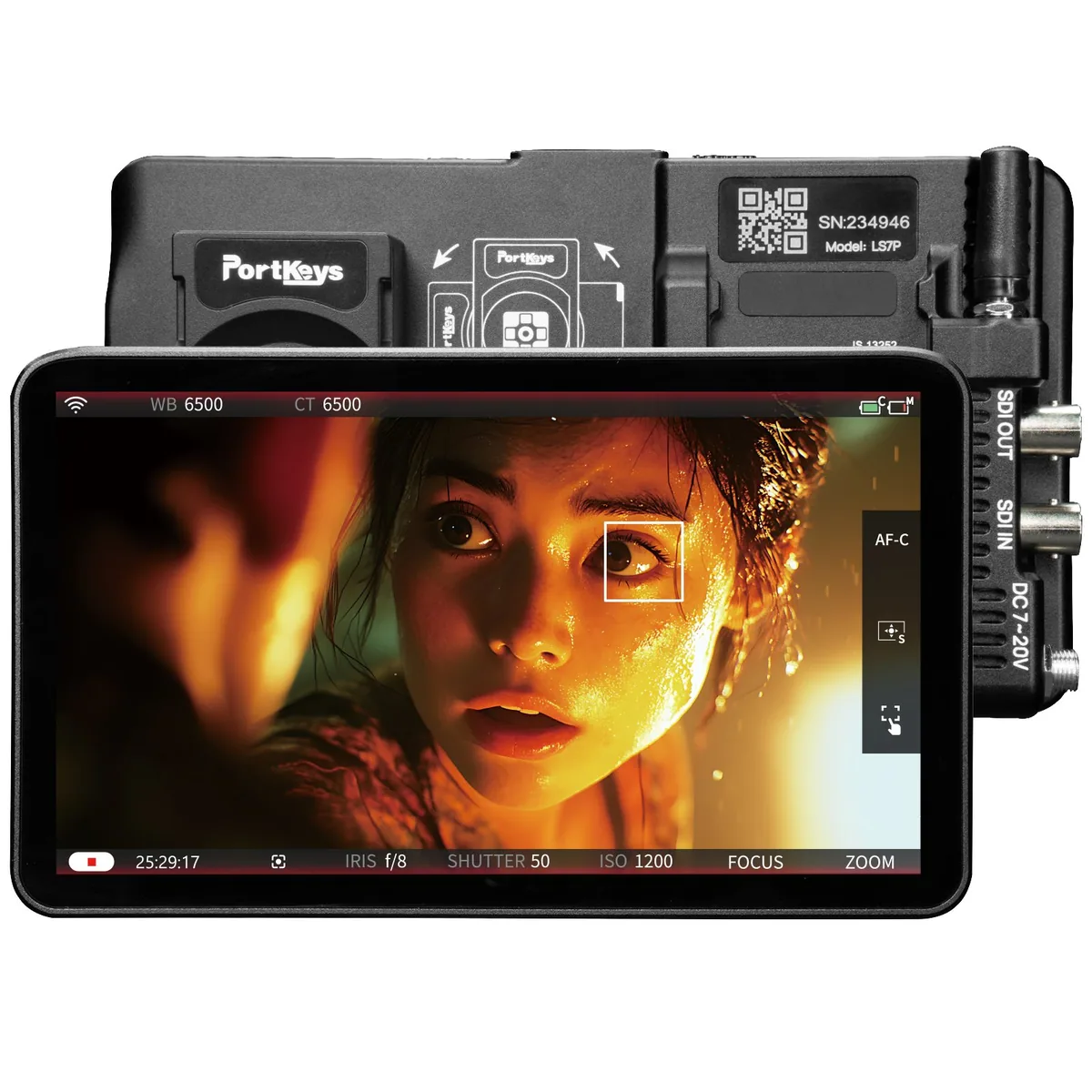

Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Portkeys

Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control

SKU
LS7P
  • 7" 1000 nits screen
  • 10-bit FHD display
  • SDI/HDMI input & output
  • Wireless camera control

Overview

Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control by Portkeys. Listed under Monitors in our Video range.

Weight: 409 g.

Key features

  • 7″ 1000 nits screen
  • 10-bit FHD display
  • SDI/HDMI input & output
  • Wireless camera control
  • Custom 3D LUT support
  • Touchscreen autofocus

Specifications

Screen Size7"
Color GamutRec.709
Color Depth10bit (8+2 FRC)
Resolution1920x1080
Dimensions176.2 x 103.8 x 39.3 mm
Viewing Angle80° all sides
Brightness1000 nits
Contrast Ratio1000:1
Weight409 g
MaterialAluminum Alloy
Input Voltage7-20V
Maximum Power13W
FanYes
Operating SystemMOVNORM OS

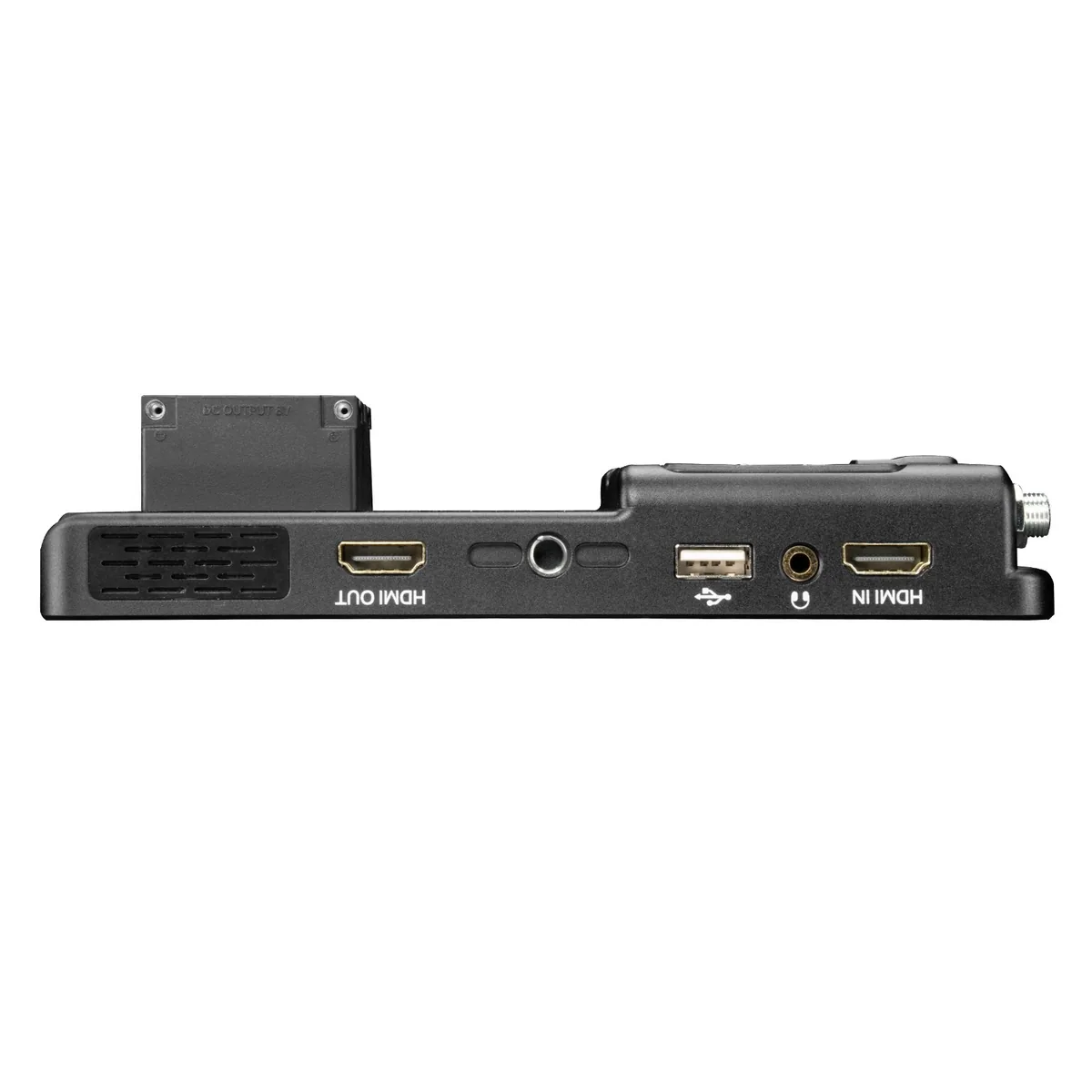

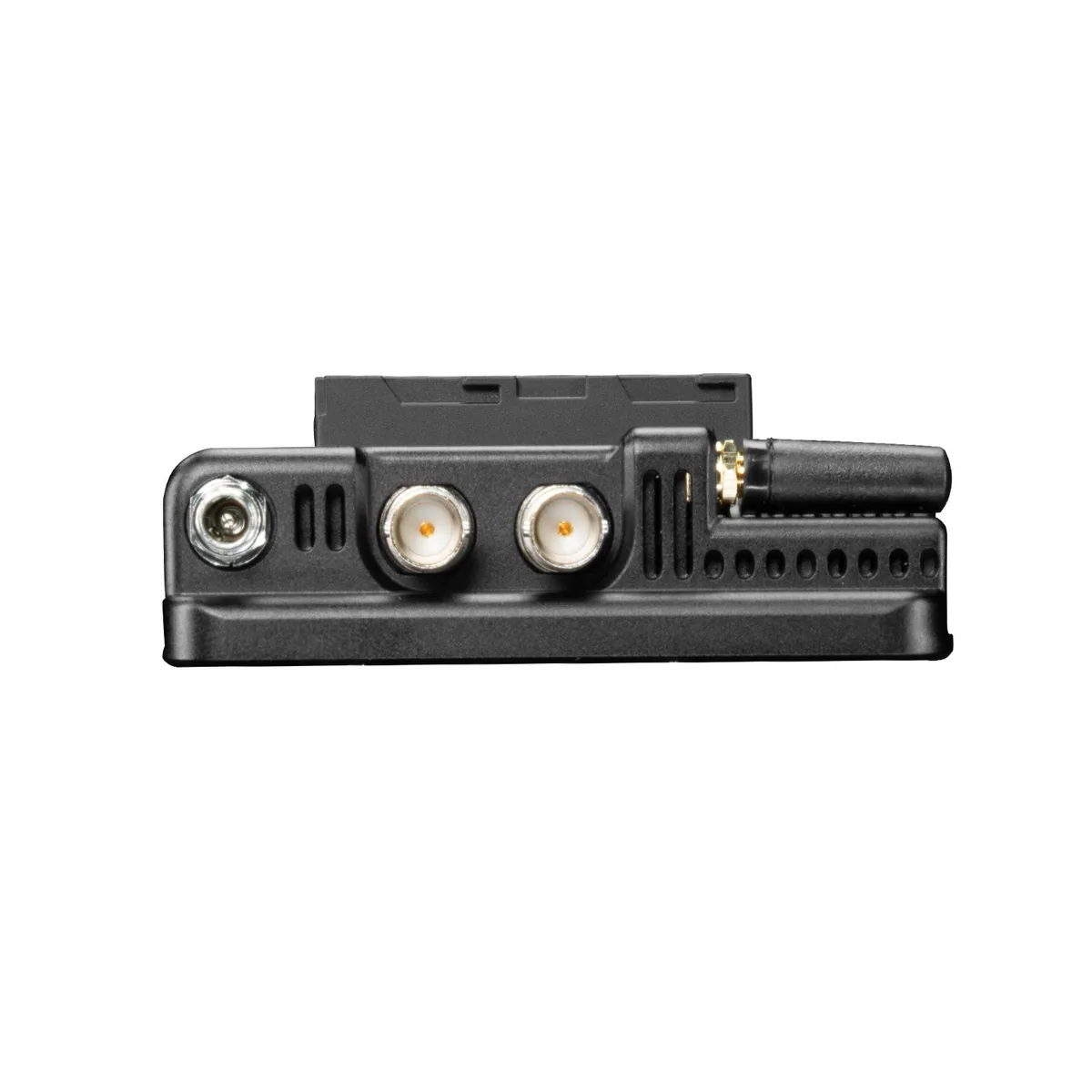

Input/Output Interfaces

HDMI Input4K30P
SDI Input3G-SDI
HDMI Output1080P60
SDI Output3G-SDI
Cross-ConversionSDI to HDMI

Power & Battery

Power InputDC 7-24V (5.5 x 2.0 mm)
Power OutputNP-F 8V/1.5A
Battery SupportSony NP-F970/F960/F750/F550

Audio & USB

Audio Output3.5mm headphone jack
USBUSB-A (USB 2.0)
USB FunctionsFirmware updates, LUT loading

Wireless

Wi-Fi Control2.4G
Bluetooth Bluetooth4.2

In the box

  • Portkeys LS7P 7" 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
