FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor
Feelworld

FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor

SKU
P6X
Barcode
6971863818153
  • 5.5" 1920 x 1080 Resolution Display

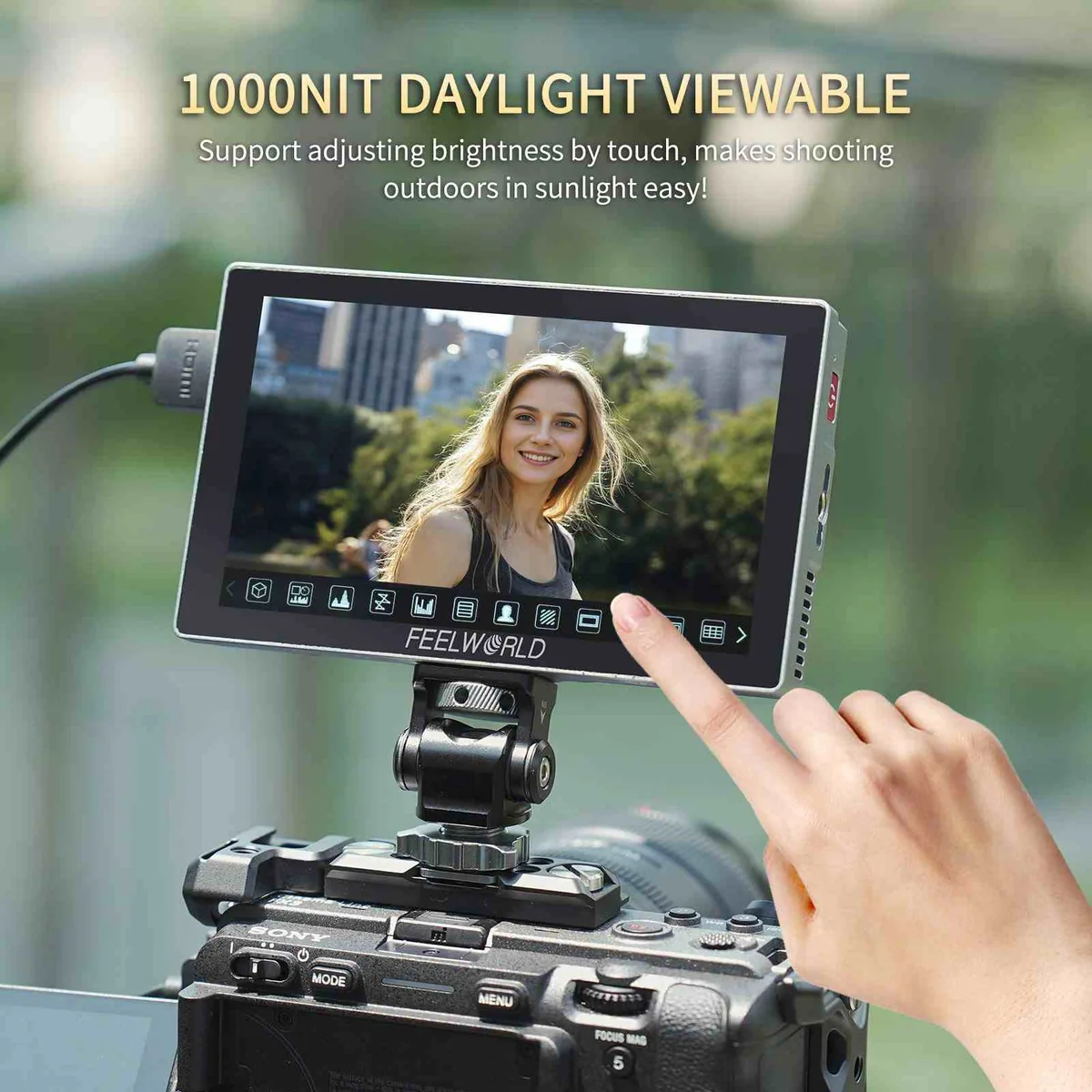

  • 1000 cd/m² Brightness
  • 4K HDMI Input and Output
  • 160° Viewing Angle

Overview

FeelWorld P6X 5.5″ 4K HDMI Touchscreen Monitor by Feelworld. Listed under Monitors in our Video range.

Weight: 0.5 lb / 249 g.

Key features

  • 5.5″ 1920 x 1080 Resolution Display
  • 1000 cd/m² Brightness
  • 4K HDMI Input and Output
  • 160° Viewing Angle

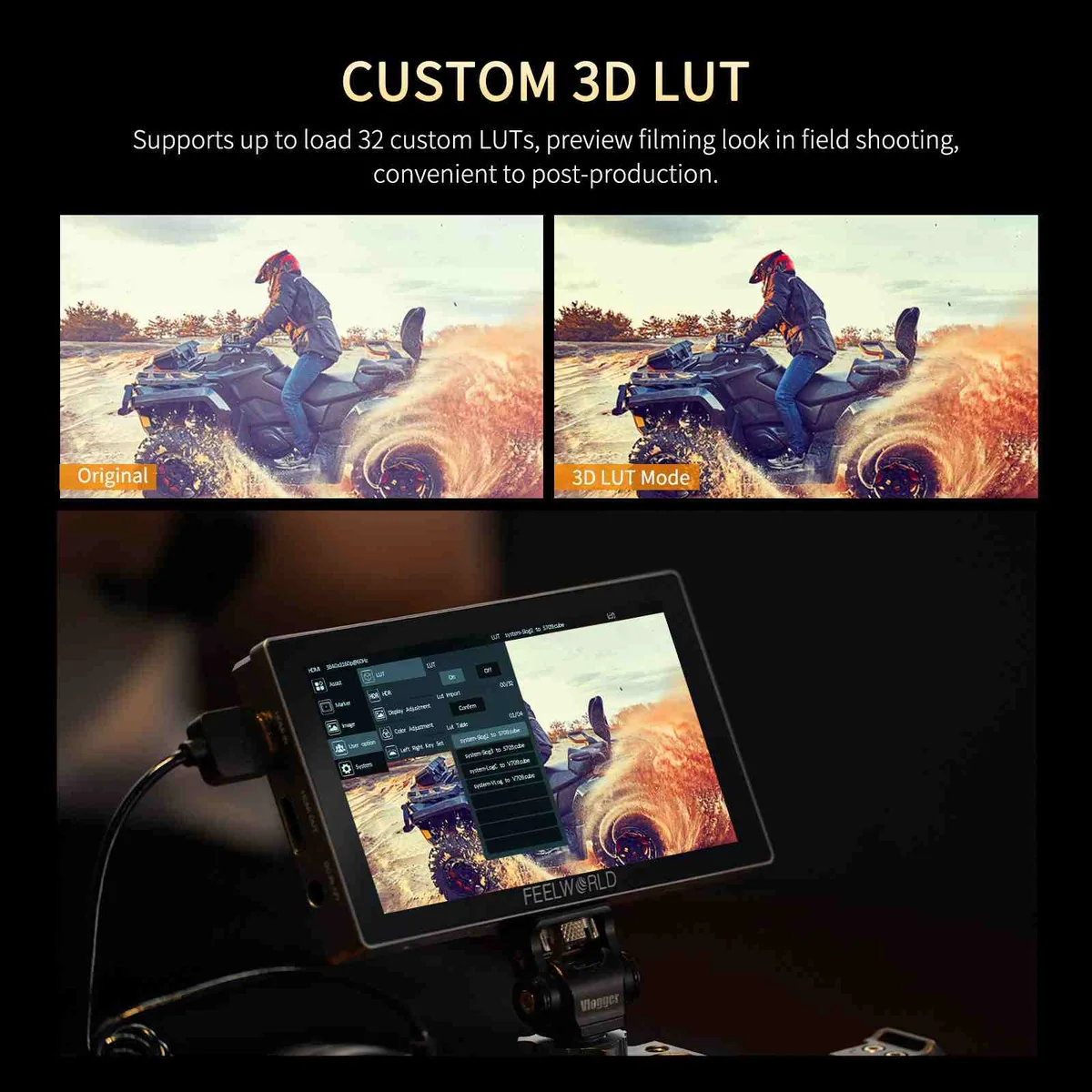

  • Up to 32 Custom 3D LUTs
  • NP-F Series Battery Plate

Warranty: 1 year manufacturer warranty.

Specifications

Key Specs

Display Size5.5" / 14.0 cm
Native Resolution1920 x 1080
TouchscreenYes
HDR SupportYes, Hybrid Log Gamma
Video I/O1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card SlotNo
Video FormatHDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i
Power Consumption10 W
Mounting1x 1/4"-20 Female (Bottom) 1x 1/4"-20 Female (Top) 1x 1/4"-20 Female (Right)

Display

Panel TypeIPS-Type LCD
Aspect Ratio16:9
Viewing AngleHorizontal: 160° (80/80) Vertical: 160° (80/80)
Maximum Brightness1000 nits / cd/m 2
Contrast Ratio1000:1
Pixels Per Inch (ppi)400 ppi

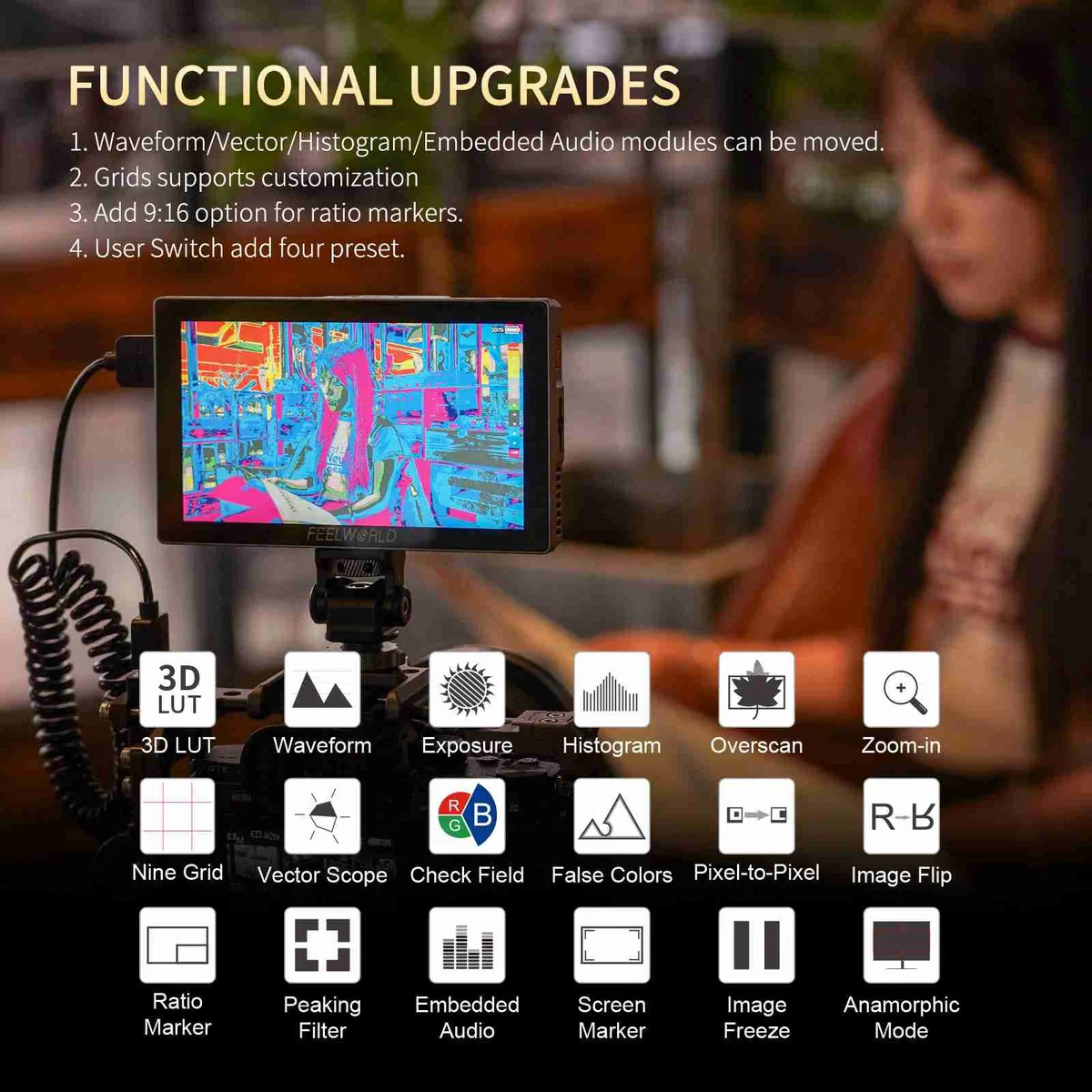

Image ControlsAnamorphic De-Squeeze, Cheque Field, False Colour, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform

Inputs / Outputs

Embedded AudioHDMI
Audio I/O1x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerStereo
Power I/O1x Barrel (12 VDC) Input 1x Barrel (8 VDC) Output 1x USB-C (5 VDC) Input
Other I/O1x USB-C (Firmware/LUT Upload) Input [Shared with Power]
Wi-FiNo
BluetoothNo
Mobile App CompatibleNo

Power

Input Power7 to 24 VDC

General

Operating Conditions-4 to 122°F / -20 to 50°C
Storage Conditions-22 to 140°F / -30 to 60°C
MaterialAluminium
Dimensions5.5 x 3.3 x 0.9" / 138.5 x 84.5 x 22 mm
Weight0.5 lb / 249 g

In the box

  • FeelWorld P6X 5.5" 4K HDMI Touchscreen Monitor
  • HDMI Cable
  • Micro-HDMI Cable
  • USB-C to USB-A Adapter
  • Mini Cold Shoe Mount
  • Allen Key
