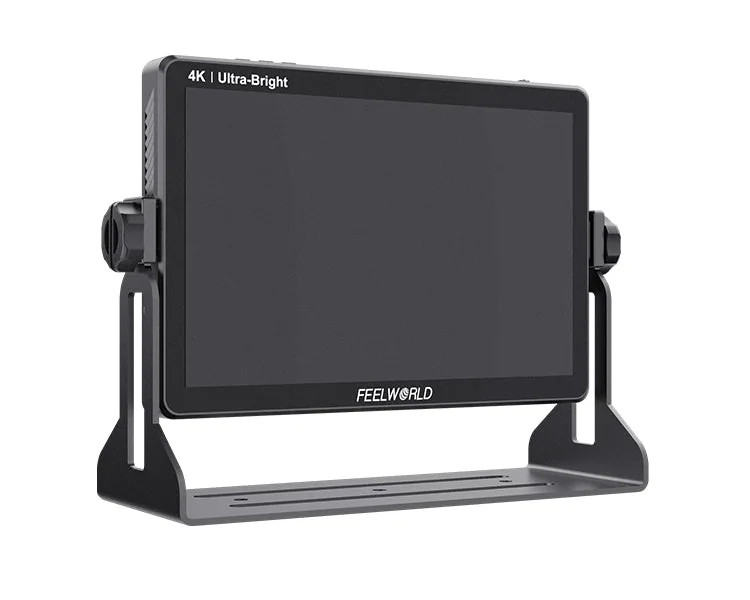

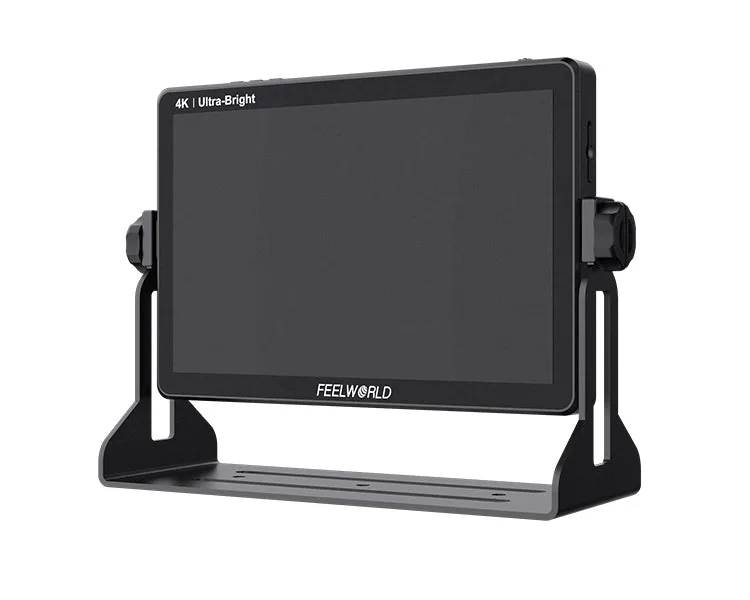

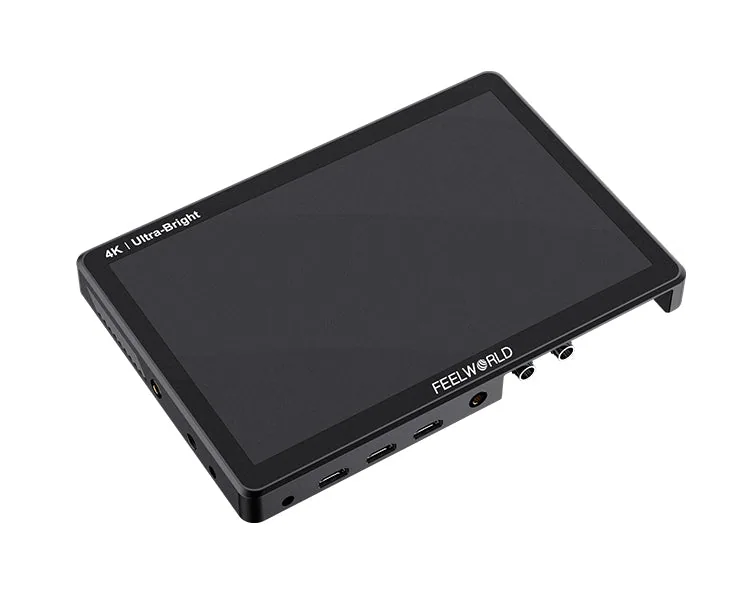

FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
Feelworld

FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI

SKU
LUT11S
Barcode
11
  • 10.1" 1920 x 1200 IPS Touchscreen LCD
  • HDMI & 3G-SDI I Inputs & Loop Outputs
  • Up to UHD 4K60 HDMI & 2K60 SDI Input
  • 2000 cd/m² Brightness

Overview

FeelWorld LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI by Feelworld. Listed under Monitors in our Video range.

Weight: 810 g.

Key features

  • 10.1″ 1920 x 1200 IPS Touchscreen LCD
  • HDMI & 3G-SDI I Inputs & Loop Outputs
  • Up to UHD 4K60 HDMI & 2K60 SDI Input
  • 2000 cd/m² Brightness
  • 800:1 Contrast Ratio
  • 170° Viewing Angle

Warranty: 1 year manufacturer warranty.

Specifications

Display

Panel TypeIPS-Type LCD
Display Size10.1" / 25.7 cm
Resolution1920 x 1200
Aspect Ratio16:10
Viewing AngleHorizontal: 170° (85/85) Vertical: 170° (85/85)
TouchscreenYes
Maximum Brightness2000 cd/m 2
Contrast Ratio800:1
Dot Pitch0.0113 x 0.113 mm
HDR CompatibilityYes
Pixels Per Inch (ppi)224 ppi
Colour Gamut100% Rec. 2020 100% DCI-P3 100% Rec. 709
Real-Time LUT MonitoringSDR

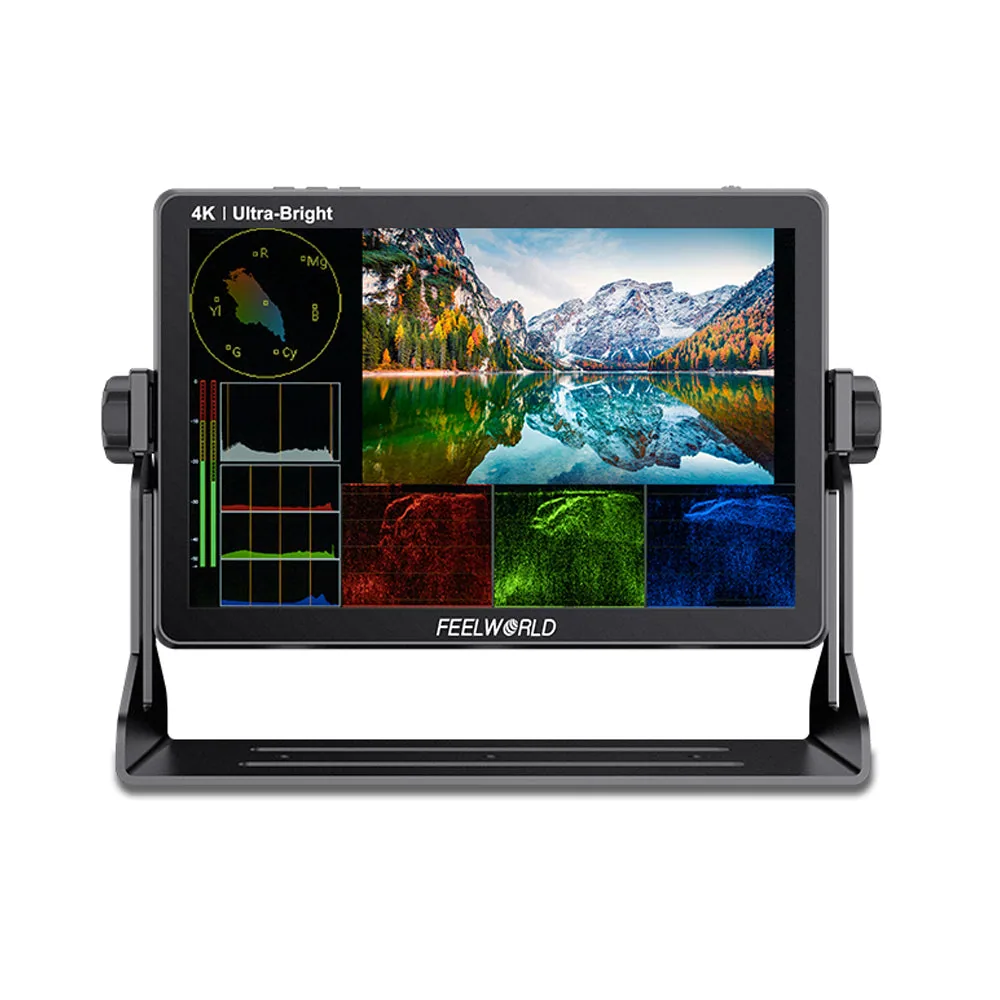

Image ControlsAnamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, Vectorscope, Waveform

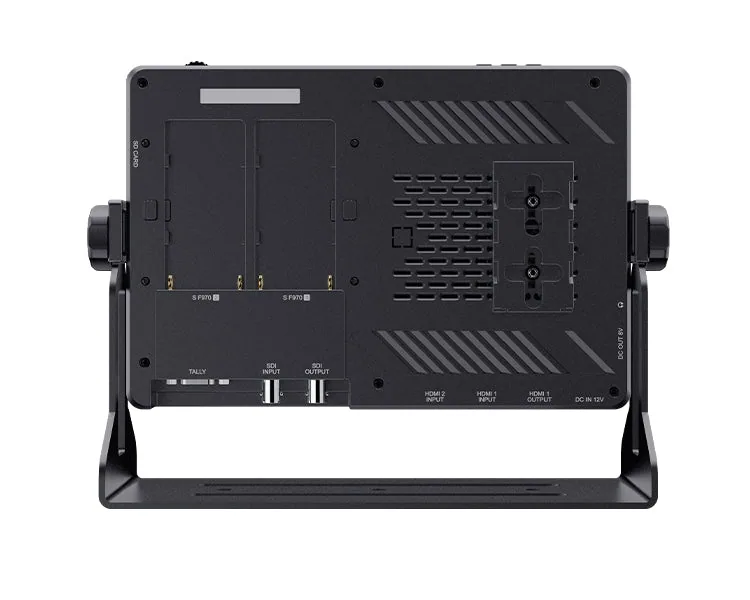

Inputs / Outputs

Video I/O1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output 2 x HDMI Input 1 x HDMI Loop Output
Embedded AudioSDI HDMI
Audio I/O1 x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNone
Power I/O1 x Barrel 2.1 mm Input 1 x Barrel 2.1 mm Output
Other I/O1 x DE-9/DB-9 (Tally) Input
Media/Memory Card SlotSingle Slot: SD/SDHC
Wi-FiNone
BluetoothNone
App CompatibleNo

Format Support

Video FormatSDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 576p 576i 480p 480i

Power

DC Input Power7 to 24 VDC
Battery Type2 x L-Series
Power Consumption28 W

Mounting

Mounting3 x 1/4"-20 Female

Environmental

Operating Temperature-10 to 50°C
Storage Temperature-20 to 60°C

General

Dimensions242 x 156 x 23 mm
Weight810 g

In the box

  • FeelWorld LUT11S 10.1" 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI and 3G SDI
