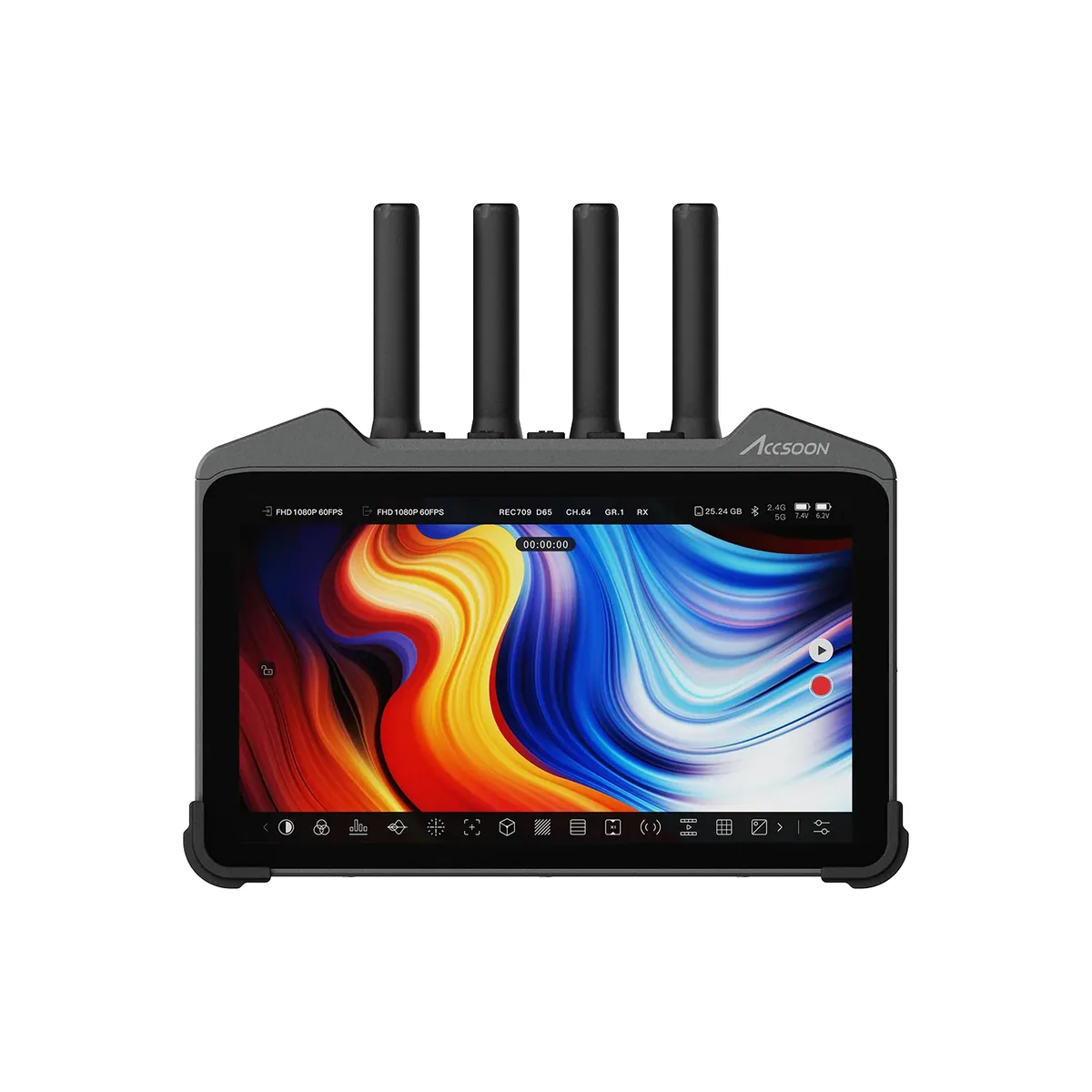

Accsoon CineView M7 Pro 7″ 4K60 Recording Monitor with Wireless Transmitter/Receiver
Accsoon

Accsoon CineView M7 Pro 7″ 4K60 Recording Monitor with Wireless Transmitter/Receiver

SKU
M7PRO
Barcode
607609770480
  • Edge-Lit 7" Multi-Touch Display
  • Integrated Dual-Band Wi-Fi RX/TX
  • 1920 x 1080 Resolution
  • 1000 cd/m² Brightness

Overview

Accsoon CineView M7 Pro 7″ 4K60 Recording Monitor with Wireless Transmitter/Receiver by Accsoon, model M7PRO. Listed under Monitors in our Video range.

Weight: 1.1 lb / 494.3 g, Excluding Antenna.

Key features

  • Edge-Lit 7″ Multi-Touch Display
  • Integrated Dual-Band Wi-Fi RX/TX
  • 1920 x 1080 Resolution
  • 1000 cd/m² Brightness
  • 3G-SDI & HDMI I/O up to DCI 4K60
  • Up/Down & SDI & HDMI Cross Conversion

Specifications

Display

Panel TypeLCD
Display Size7.0" / 17.8 cm
Native Resolution1920 x 1080
Aspect Ratio16:9
Viewing AngleHorizontal: 176° Vertical: 176°
TouchscreenYes
Maximum Brightness1000 nits / cd/m 2
Contrast Ratio1000:1
HDR SupportYes
Colour Gamut100% Rec. 709
LUT SupportYes
Image ControlsFalse Colour, Focus Assist, Focus Peaking, Histogram, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

Antenna I/O4x RP-SMA Female
Video I/O1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output
Embedded AudioHDMI/SDI
Audio I/O1x 1/8" / 3.5 mm Mic Input 1x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNo
Power I/O1x Barrel 2.1 mm (16.8 VDC) Input 1x USB-C (3 A / 9 VDC) Input 1x USB-C (2 A / 5 VDC) Output
Media/Memory Card SlotSingle Slot: SD (Unspecified Type) [Record/LUT/Firmware]

Wireless

Wireless Range1148.3' / 350 m (Line-of-Sight)
Latency60 ms
Wi-FiUnspecified Version; Dual-Band (2.4 & 5 GHz)
BluetoothYes
Mobile App CompatibleYes: Android & iOS App Name: Accsoon SEE Functionality: Access Stored Files, Remote Control, View Live Feed

Format Support

Video FormatHDMI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50
Video Signal ConversionSDI to HDMI
Audio Format2-Channel 16-Bit 48 kHz
Wireless Video CompressionCompressed
Timecode SupportYes

Recording

Pulldown ConversionNo
Camera TriggerNo
Pre-Roll RecordNo
Encoding FormatsUp to 4096 x 2160 H.264 Up to 4096 x 2160 H.265
Maximum Audio Tracks2

Power

Input Power6 to 16.8 VDC 9 to 15 VDC at 3 A
Battery2x L-Series Mount on Fixed Plate
Power Consumption12 W (Typical) 28 W (Maximum)

Mounting

Tripod/Accessory Mounting2x 1/4"-20 Female

General

Operating Conditions14 to 104°F / -10 to 40°C
MaterialAluminium
Dimensions7.2 x 4.8 x 1.2" / 182.2 x 120.7 x 31.5 mm
Weight1.1 lb / 494.3 g, Excluding Antenna

In the box

  • Accsoon CineView M7 Pro 7" 4K60 Recording Monitor with Wireless Transmitter/Receiver
  • 4 x Antenna
