FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor
Feelworld

FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor

SKU
FW568 PRO
Barcode
568
  • Touchscreen 1920 x 1080 Display
  • Up to DCI 4K HDMI Input; HDMI Output

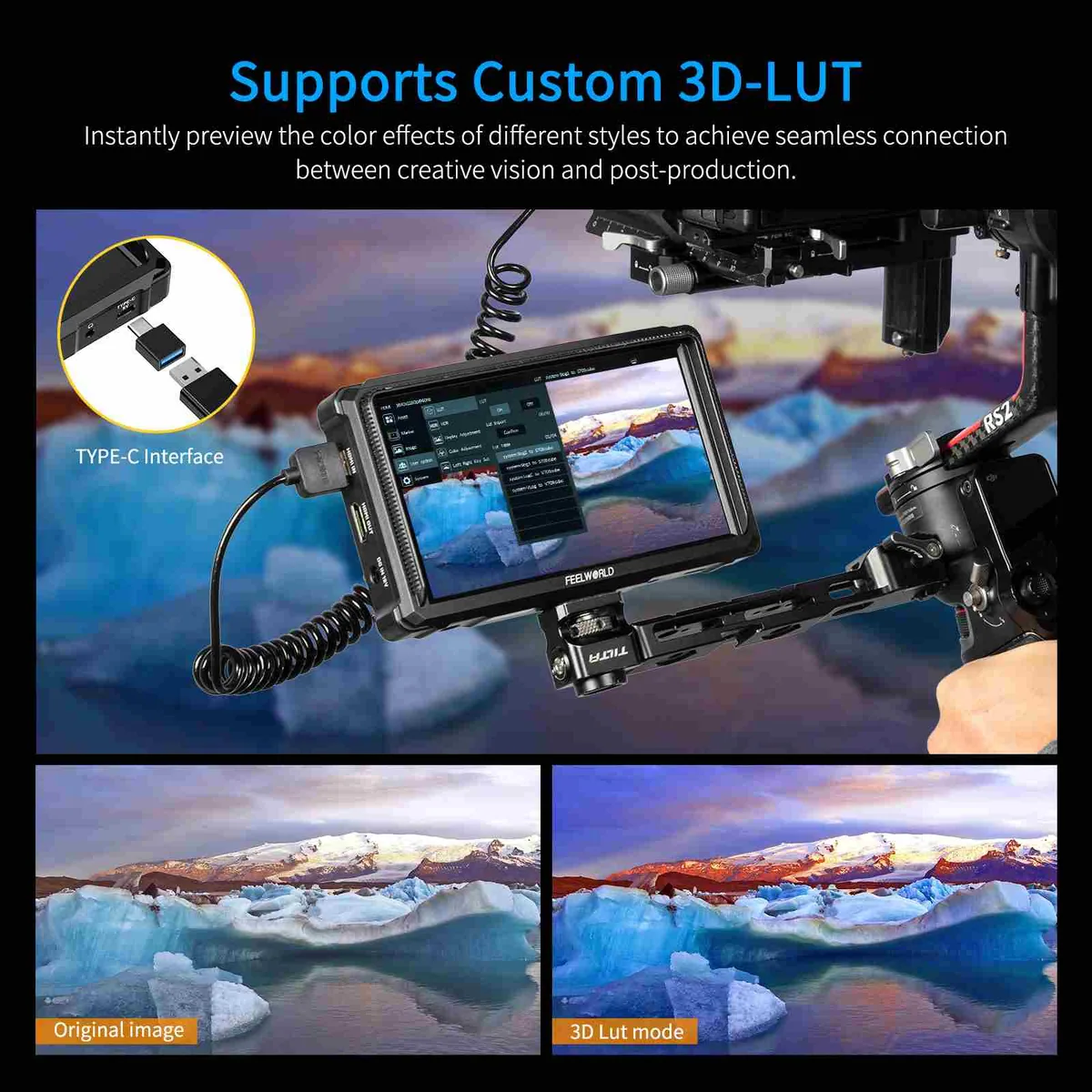

  • Custom 3D LUT Import via SD Card Slot
  • High 1200 cd/m² Brightness

Overview

FeelWorld FW568 PRO 6″ High-Bright On-Camera 4K HDMI Monitor by Feelworld. Listed under Monitors in our Video range.

Weight: 7.2 oz / 204.00 g.

Key features

  • Touchscreen 1920 x 1080 Display
  • Up to DCI 4K HDMI Input; HDMI Output
  • Custom 3D LUT Import via SD Card Slot
  • High 1200 cd/m² Brightness
  • USB-C L-Series/LP-E6 Power Input
  • 8.4 VDC 2.1mm Barrel Power Output

Warranty: 1 year manufacturer warranty.

Specifications

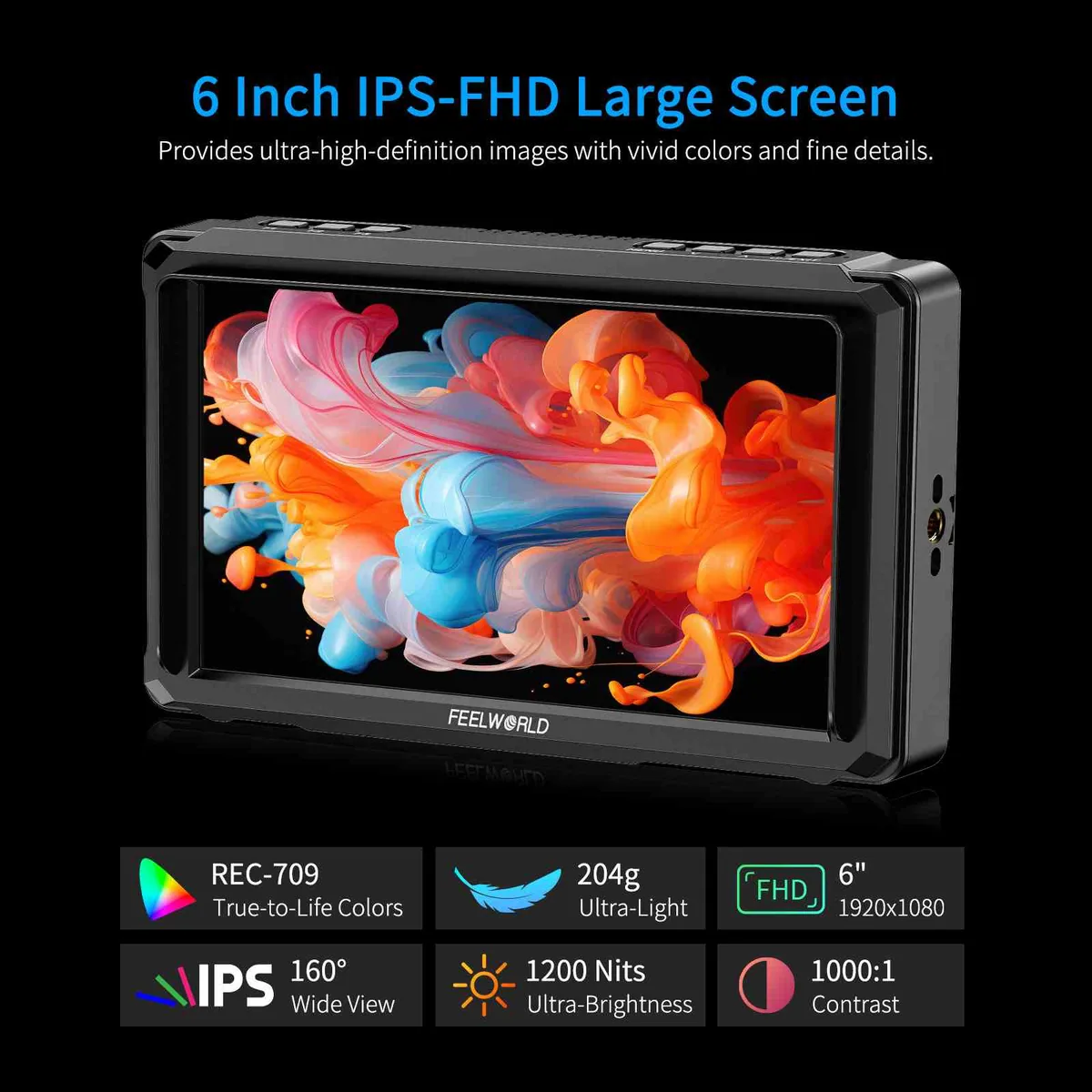

Display

Panel TypeIPS-Type LCD
Display Size6.0" / 15.2 cm
Native Resolution1920 x 1080
Aspect Ratio16:9
Viewing AngleHorizontal: 160° (80/80) Vertical: 160° (80/80)
TouchscreenNo
Maximum Brightness1200 nits / cd/m 2
Contrast Ratio1000:1
HDR SupportYes
LUT SupportYes

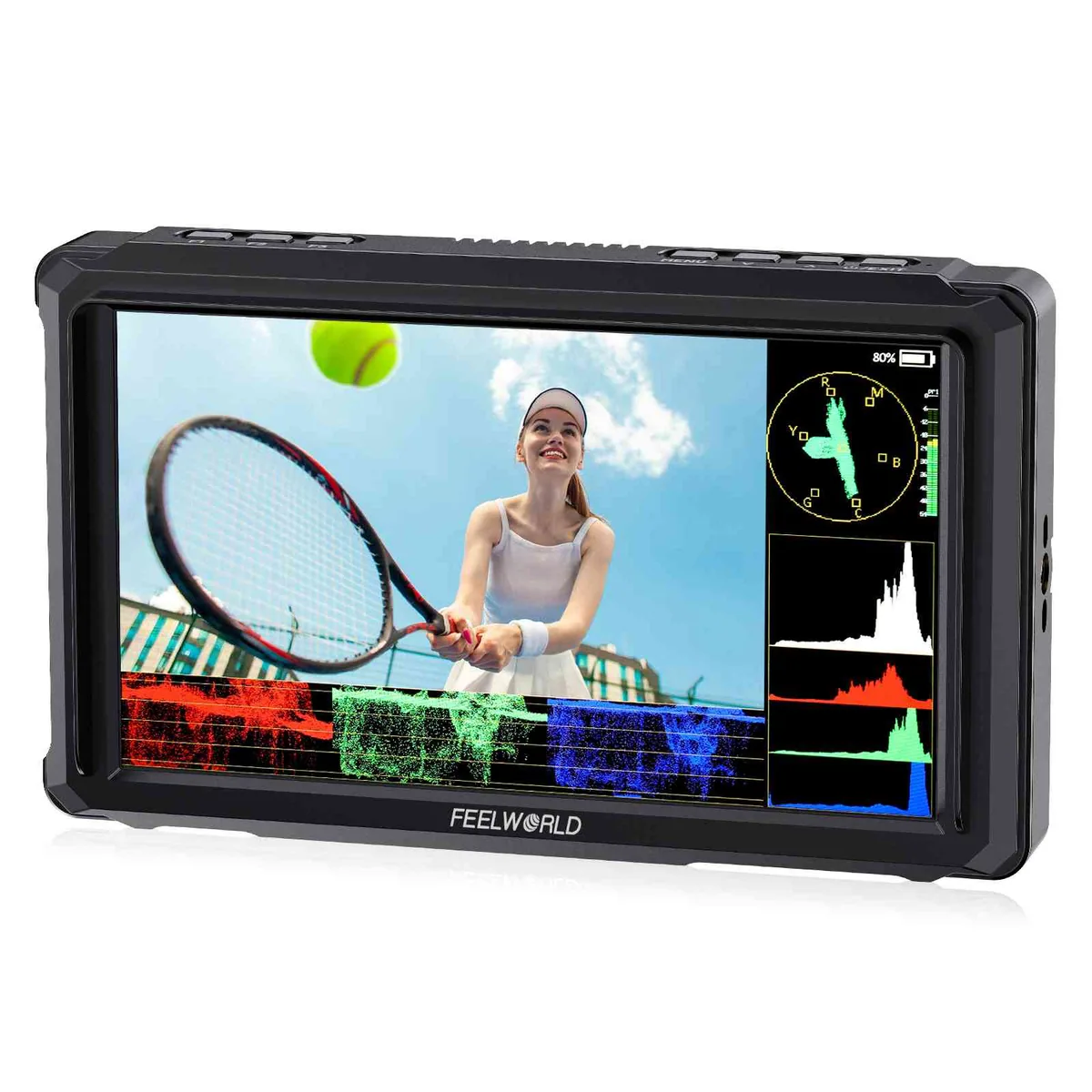

Image ControlsAnamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Image Rotate, Marker Colour, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs/Outputs

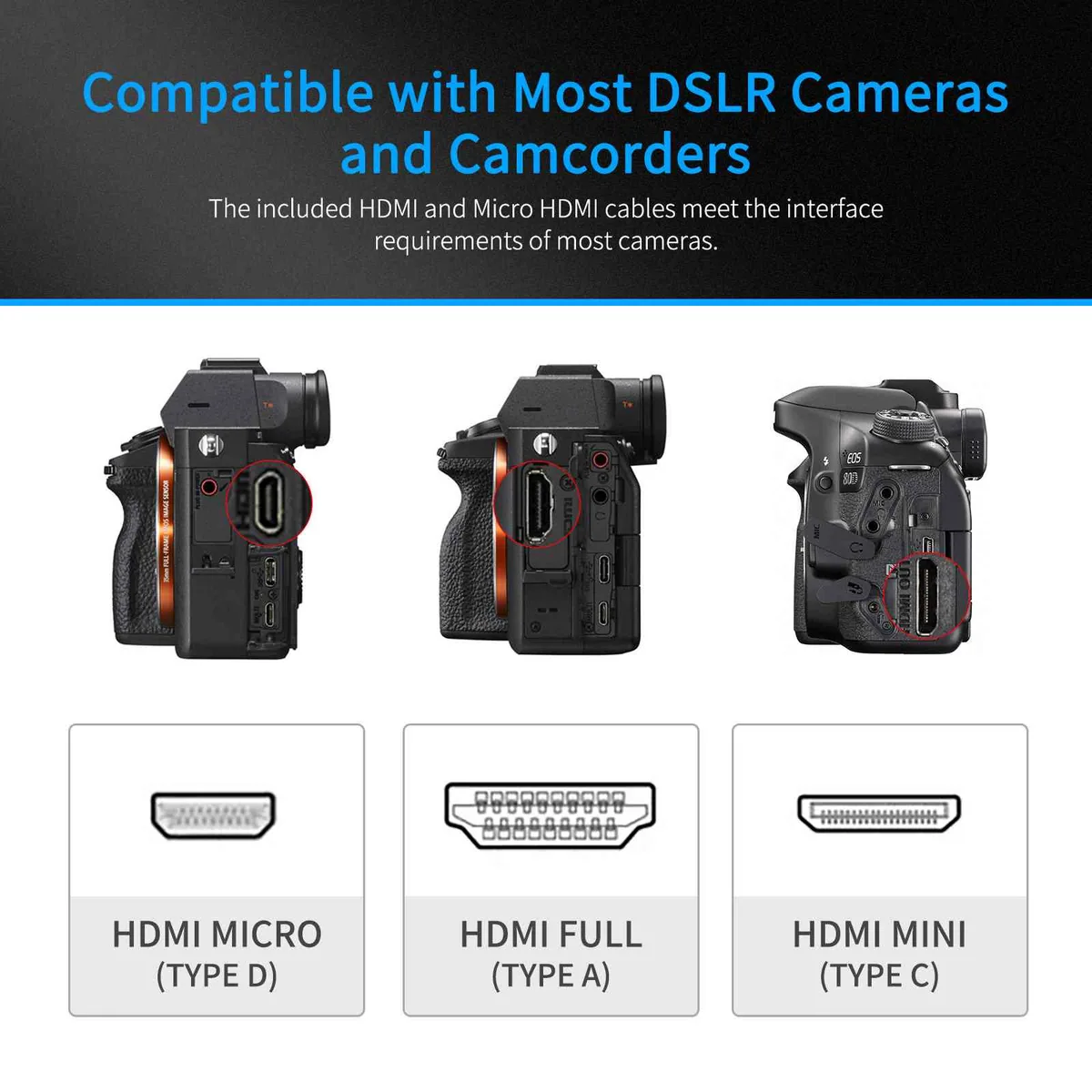

Video I/O1x HDMI 2.0 Input 1x Mini-HDMI 2.0 Output
Embedded AudioHDMI
Audio I/O1x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerMono
Power I/O1x USB-C (5 VDC) Input 1x Barrel (12 VDC) Input 1x Barrel (8.4 VDC) Output
Other I/ONo
Media/Memory Card SlotNo
Wi-FiNo
BluetoothNo
Mobile App CompatibleNo

Format Support

Video FormatHDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480p 480i 576p 576i
Gamma CurveARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log

Power

Input Power7 to 24 VDC
Battery1x L-Series Mount on Fixed Plate
Power Consumption11 W (Maximum)

Mounting

Tripod/Accessory MountingBottom/Left 1x Anti-Twist 1/4"-20 Female

General

Environmental ResistanceNo
Operating Conditions32 to 122°F / 0 to 50°C
Storage Conditions14 to 140°F / -10 to 60°C
Dimensions6.3 x 3.8 x 1.3" / 161 x 96 x 33.3 mm
Weight7.2 oz / 204.00 g

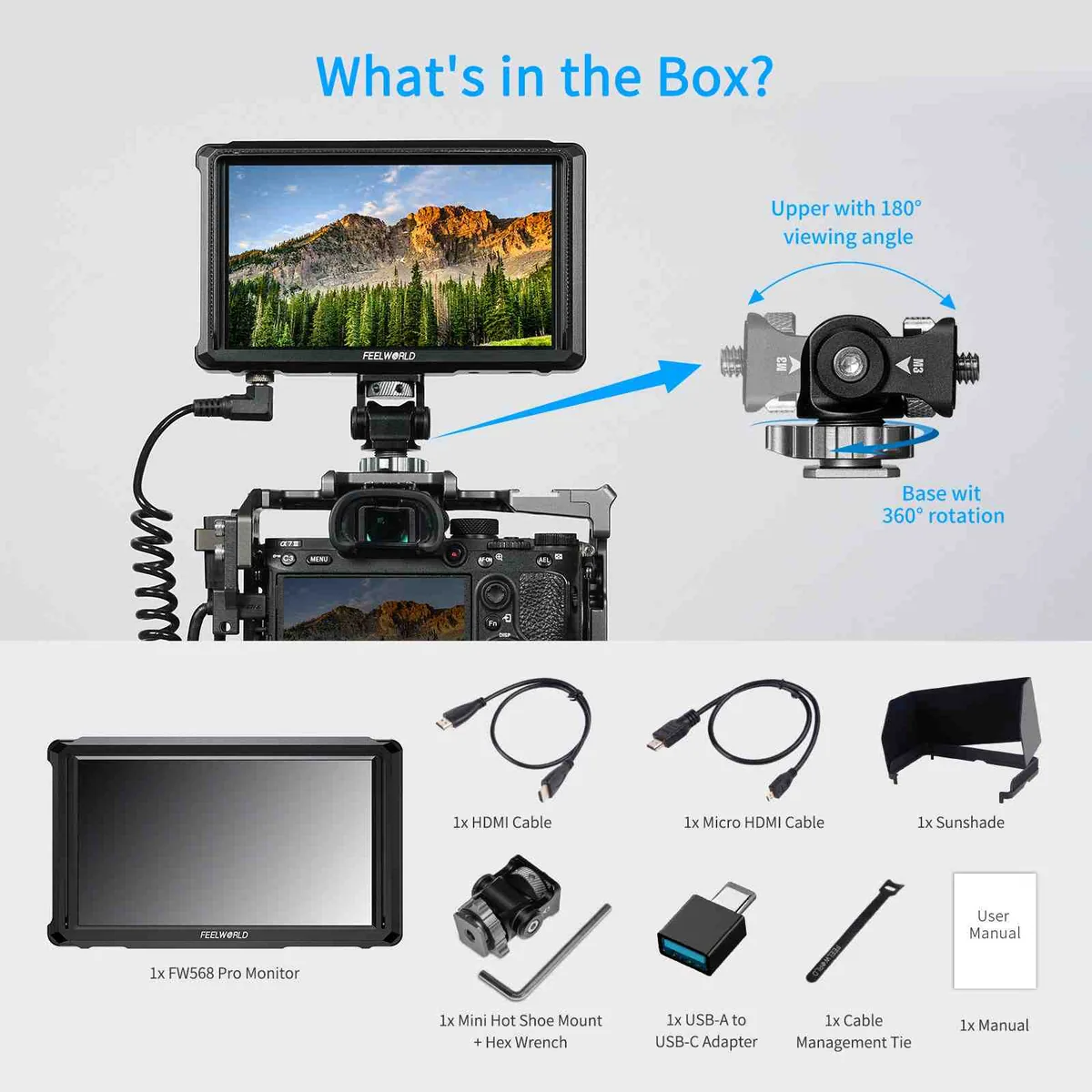

In the box

  • FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor
  • HDMI Cable
  • Micro-HDMI Cable
  • Sun Hood
  • Shoe Mount
  • Hex Wrench
  • USB-A to USB-C Adapter
  • Cable Tie
