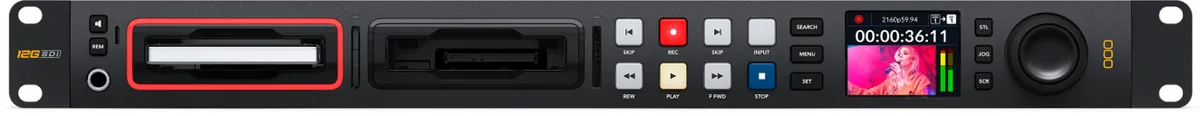

Blackmagic HyperDeck Studio 4K Pro
Blackmagic

Blackmagic HyperDeck Studio 4K Pro

SKU
HYPERD/ST/DG4P
Barcode
9338716007145
  • 1 RU File-Based Video Recorder
  • H.264/H.265 10-Bit 4:2:2 Video
  • Records Compressed in ProRes / DNxHD
  • 1 x 12G-SDI Input, 2 x 12G-SDI Outputs

Overview

Blackmagic HyperDeck Studio 4K Pro by Blackmagic, model HYPERD/ST/DG4P. Listed under Video Recorders in our Video range.

Weight: 4.65 lb / 2.11 kg.

Key features

  • 1 RU File-Based Video Recorder
  • H.264/H.265 10-Bit 4:2:2 Video
  • Records Compressed in ProRes / DNxHD
  • 1 x 12G-SDI Input, 2 x 12G-SDI Outputs
  • 2 x 2.5″ SSD Slots & 2 x SD Card Slots
  • 1 x HDMI Input, 1 HDMI Output

Specifications

General

Format SupportDCI/UHD 4K 2160p: 30/29.97/25/24/23.98 2K 1440p: 30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC/PAL 525i 59.94 625i 50 480p60 and 576p50 via HDMI Only
Display Size2.2" LCD

Inputs / Outputs

USB I/O1 x USB-C 3.1/3.2 Gen 2 Female Output
Video I/O1x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output
Audio I/O1x 1/4" Headphone Output
Network1 x RJ45, 10 Gb/s
Media Slots2 x 2.5" SSD 2 x SD Card
SSD Interface2 x 2.5" SATA III 6 Gb/s
Reference Input1 x BNC
Reference Output1 x BNC
Timecode1 x XLR (Input) 1 x XLR (Output)
Embedded AudioInput: 16 x Channels SDI 8 x Channels HDMI Output: 8 x Channels SDI 8 x Channels HDMI
SpeakerMono
Device Control1 x RS-422 Input 1 x RS-422 Output
Supported Operating SystemsmacOS 10.15 Catalina macOS 11.1 Big Sur or Later Windows 10, 64-Bit
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1
SDI Metadata SupportHD RP188 and closed captioning CEA-708 HDR Metadata Supported on SDI
SamplingVideo: 4:2:2 YUV Audio: 24-Bit, 48 kHz
Colour Precision10-Bit
Colour SpaceRec. 601, Rec. 709, Rec. 2020 3D LUTS can be Applied to SDI Monitor Out
Multiple Rate SupportAutodetection of SD, HD, 6G-SDI, and 12G-SDI
HDR SupportHybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Codecs SupportedProRes HQ QuickTime ProRes 422 QuickTime ProRes LT QuickTime ProRes Proxy QuickTime for all Formats up to 2160p30 ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs (Playback Only) DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps H.265 SDI 4:2:2 10-Bit, H.265 High 4:2:0 10-Bit, H.265 Medium 4:2:0 10-Bit, H.265 Low 4:2:0 10-Bit for all 2160p Formats up to 60 fps H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive formats up to 1080p60
Rack Size1 RU

Power

Power SourceAC Input
AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power12 VDC
Power Consumption100 W (Maximum)
Power Input Connection4-Pin XLR Input
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity0 to 90% ()
Storage Temperature-4 to 140°F / -20 to 60°C
Storage Humidity0 to 90%

Physical

Dimensions19 x 9.3 x 1.7" / 48.3 x 23.6 x 4.4 cm
Weight4.65 lb / 2.11 kg

In the box

  • Blackmagic Design HyperDeck Studio 4K Pro
