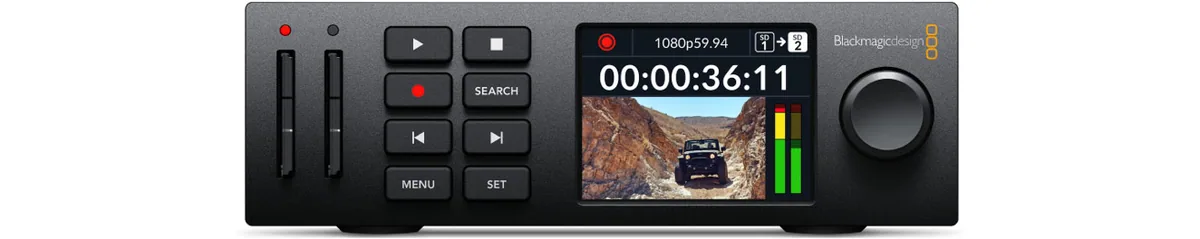

Blackmagic Design HyperDeck Studio HD Mini

Name: Blackmagic Design HyperDeck Studio HD Mini
Brand: Blackmagic
SKU: HYPERD/ST/DAHM
Price: 739.00 AUD
Availability: InStock

Overview

Blackmagic Design HyperDeck Studio HD Mini by Blackmagic, model HYPERD/ST/DAHM. Listed under Video Recorders in our Video range.

Weight: 1.8 lb / 0.82 kg.

Video Input	3G-SDI: 1 x BNC
Video Output	3G-SDI: 1 x BNC HDMI: 1 x HDMI (Type A) USB: 1 x Type-C (Webcam or External Recording of SD, HD, 2K DCI)
Timecode	In: 1 x BNC Out: 1 x BNC
Reference	Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC
Audio Input	None (Embedded Audio Only, 16 Channels)
Audio Output	None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI)
Device Control	1 x RS-422 Deck Control Port on DB9 Female
Ethernet	1 x RJ45 for Remote Operation
Media Interface	2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+

Supported Resolutions	2K 2048 x 1080p: 30/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL
SDI Compliance	SMPTE 259M//292M/296M/372M/424M/425M level A and B SMPTE 2084 SMPTE 2108‑1
SDI Metadata Support	HD RP188 and closed captioning CEA‑708 HDR Metadata supported on SDI
Video Sampling	4:2:2 YUV
Colour Depth	10-Bit
Colour Space	REC 601 REC 709 REC 2020
HDR Support	Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support	Auto Detection of SD and HD
Audio Sampling	Television Standard 48 kHz, 24-Bit
Supported Codecs	ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for all formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD formats up to 60fps H.264 SDI 4:2:2 10‑bit High 4:2:0 8‑bit Medium 4:2:0 8‑bit Low 4:2:0 8‑bit for all progressive formats up to 1080p60

Operating System	macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit

Rack Height	1 RU
Power Supply	AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5mm Barrel
Operating Temperature	41 to 122°F / 5 to 50°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Relative Humidity	0 to 90% Non-Condensing
Dimensions	6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm
Weight	1.8 lb / 0.82 kg
