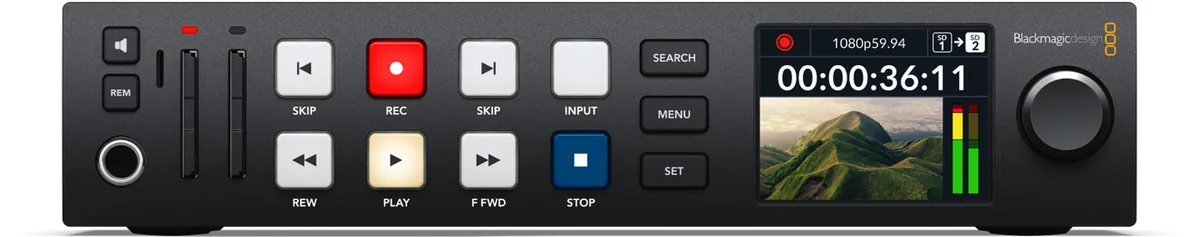

Blackmagic Design HyperDeck Studio HD Plus

Name: Blackmagic Design HyperDeck Studio HD Plus
Brand: Blackmagic
SKU: HYPERD/ST/DCHP
Price: 980.00 AUD
Availability: InStock

Overview

Blackmagic Design HyperDeck Studio HD Plus by Blackmagic, model HYPERD/ST/DCHP. Listed under Video Recorders in our Video range.

Weight: 1.8 lb / 0.82 kg.

Video Input	1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A
Video Output	1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out)
Timecode	In: 1 x BNC Out: 1 x BNC
Reference	Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC
Audio Input	None (Embedded Audio Only, 16 Channels)
Audio Output	Headphone: 1 x 1/4" Phone
Device Control	2 x RS-422 Deck Control Port on DB9 Female
Ethernet	1 x RJ45 for Remote Operation
Media Interface	2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+

Supported Resolutions	4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 0/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL
SDI Compliance	SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1
SDI Metadata Support	HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI
Video Sampling	4:2:2 YUV
Color Depth	10-Bit
Color Space	Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support	Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support	Autodetection of SD, HD, and 6G-SDI
Audio Sampling	Television Standard 48 kHz, 24-Bit
Supported Codecs	ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps H.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

Operating System	macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit

Rack Height	1 RU
Power Supply	AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x 4-Pin XLR Consumption 100 W Max
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Non-Condensing
Dimensions	8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm
Weight	1.8 lb / 0.82 kg
