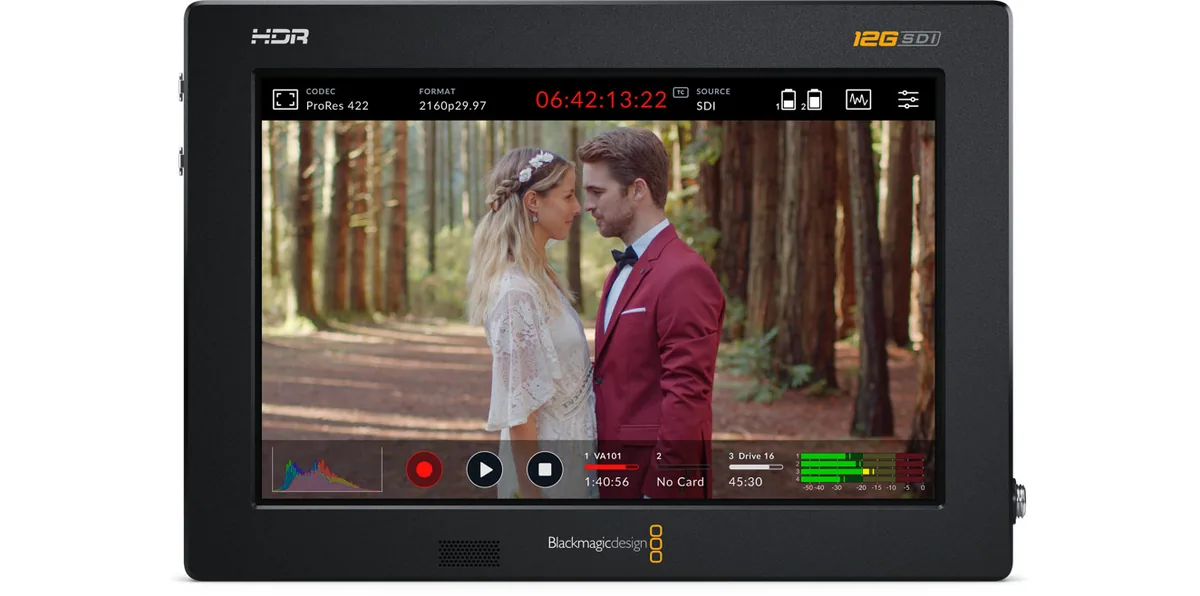

Blackmagic Design Video Assist 7″ 12G-SDI/HDMI HDR Recording Monitor
Blackmagic

Blackmagic Design Video Assist 7″ 12G-SDI/HDMI HDR Recording Monitor

SKU
HYPERD/AVIDA12/7HDR
Barcode
9338716006438
  • 7" 1920 x 1200 Touchscreen LCD
  • Record up to DCI or UHD 4K HDR Video
  • HDMI and 12G-SDI Video Inputs & Outputs
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding

Overview

Blackmagic Design Video Assist 7″ 12G-SDI/HDMI HDR Recording Monitor by Blackmagic, model HYPERD/AVIDA12/7HDR. Listed under Video Recorders in our Video range.

Weight: 29.1 oz / 824.99 g.

Key features

  • 7″ 1920 x 1200 Touchscreen LCD
  • Record up to DCI or UHD 4K HDR Video
  • HDMI and 12G-SDI Video Inputs & Outputs
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding
  • Blackmagic Raw with Select Cameras
  • 3D LUTs, 2500 cd/m² Brightness

Specifications

Key Specs

Display Size7.0" / 17.8 cm
Resolution1920 x 1200
TouchscreenYes
HDR CompatibilityHDR10, Hybrid Log Gamma
Video I/O1 x HDMI 2.0a Input 1 x BNC (12G-SDI) Input 1 x HDMI 2.0a Output 1 x BNC (12G-SDI) Output
Media/Memory Card SlotDual Slot: SD/SDHC/SDXC (UHS-II)

Display

Panel TypeTFT LCD
Aspect Ratio16:10
Maximum Brightness2500 nits / cd/m 2
Bit Depth / Colour Support10-Bit (1.07 Billion Colours)
Pixels Per Inch (ppi)323 ppi
Colour Gamut100% Rec. 709 100% Rec. 2020
Real-Time LUT MonitoringSDR, HDR
Image ControlsHistogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform

Inputs / Outputs

HDCP SupportNo
Embedded AudioHDMI: 8-Channel SDI: 16-Channel
Audio I/O1 x 1/8" / 3.5 mm Headphone Output 2 x Mini-XLR Mic/Line Input
Built-In Speaker1
Power I/O1 x Barrel (12 VDC) Input
Other I/O1 x USB-C 1 x 2.5 mm (LANC)
Wi-FiNone
BluetoothNone
Mobile App CompatibleNo *As of June, 2023: Cheque with manufacturer for the most up-to-date compatibility

Format Support

Video FormatSDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Gamma CurveHDR-HLG, Rec709, Rec2020
Timecode SupportYes

Recording

Pre-Roll RecordNone
Encoding FormatsUp to 4096 x 2160 Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks16
Phantom Power+48 V

Power

AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power12 VDC
Built-In BatteryNone
Battery Type2 x L-Series
Power Consumption36 W

Environmental

Operating Temperature32 to 72°F / 0 to 40°C
Operating Humidity0 to 90%
Storage Temperature-4 to 113°F / -20 to 45°C

General

Dimensions7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm
Weight29.1 oz / 824.99 g

In the box

  • Blackmagic Video Assist 12G HDR (7")
