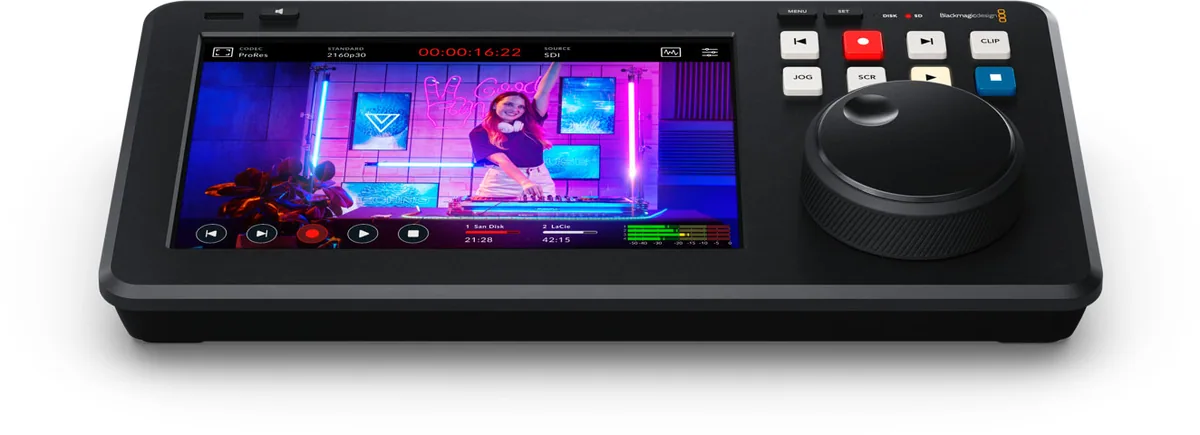

Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic

Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)

SKU
HYPERD/PTSKD/2TB
Model
HyperDeck Shuttle 4K Pro
Barcode
9338716009880
  • 7" Touchscreen Display
  • Broadcast Deck Controls with Search Dial
  • Includes 2TB M.2 Card
  • Records to SD and USB-C Disk

Overview

Blackmagic Design HyperDeck Shuttle 4K Pro (2TB) by Blackmagic. Listed under Video Recorders in our Video range.

Weight: 2.39 lb / 1.08 kg.

Key features

  • 7″ Touchscreen Display
  • Broadcast Deck Controls with Search Dial
  • Includes 2TB M.2 Card
  • Records to SD and USB-C Disk
  • DCI 4K Video, HDR Colour Space
  • H.264/265, ProRes, and DNx File Formats

Specifications

General

Video ResolutionDCI 4K at 23.98, 24, 25, 30 UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K at 23.98, 24, 25, 29.97, 30 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94
Sampling RateAudio 24-bit, 48 kHz Video 4:2:2 YUV
Video CodecsProRes, DNx, H.265, H.264
Audio FormatAAC 2-Channel PCM 2/4/8/16/32/64-Channel

Display

Panel TypeLCD
Display Size7"
TouchscreenYes

Inputs/Outputs

USB I/O1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output
Video I/O1x HDMI Input 1x HDMI Output 1x HDMI Output ( Monitor ) 1x BNC Input 1x BNC Output ( Loop Output ) 2x BNC Output 1x BNC Output ( Monitor )
Audio I/O1x 1/4" Headphone Input
Media/Memory Card SlotSingle Slot: SD (Unspecified Type) Single Slot: M.2 SSD
Other I/O1 x DB-9 RS-422 Input 1 x RJ45 10G Ethernet 1 x BNC Reference/Tri-Sync/Blackburst Input 1 x BNC Reference/Tri-Sync/Blackburst Output

Wireless

WirelessYes

Power

Power SourceDC Input
DC Input Power12 VDC
Power Consumption60 W (Maximum)

Physical

ColourBlack
Operating Conditions32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm
Weight2.39 lb / 1.08 kg

In the box

  • Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
  • M.2 PCIe NVMe Card (2TB)
  • 12 VDC Universal Power Supply
