Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
Sound Devices

Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder

SKU
MIXPRE-3 II
Model
MixPre-3 II
Barcode
854454006527
  • Field Recording, Filmmaking & Podcasting
  • 32-Bit Recording / 142 dB Dynamic Range
  • Record up to 192 kHz
  • 3 x High-Gain, Low-Noise Mic Preamps

Overview

Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder by Sound Devices. Listed under Portable Digital Recorders in our Music & Audio range.

Weight: 16.8 oz / 0.5 kg (Without Batteries).

Key features

  • Field Recording, Filmmaking & Podcasting
  • 32-Bit Recording / 142 dB Dynamic Range
  • Record up to 192 kHz
  • 3 x High-Gain, Low-Noise Mic Preamps
  • Records 3 Inputs & Stereo Mix

Warranty: 1 year warranty, extends to 2 years as long as you register it with Sounds Devices at the time of purchase.

Specifications

Portable Recorder

Number of TracksWAV: 5 (3 Inputs + Stereo Mix)
Max Sample Rate/Resolution192 kHz / 32-Bit
MicrophoneNone
Built-In SpeakerNone
Display1.6" / 40.64 mm Colour LCD Touchscreen
Memory Card SupportSD, SDHC, SDXC (Up to 512 GB)
Internal StorageNone

Recording

Audio File FormatsRecording: WAV
Sample RatesWAV: 44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz
Bit Depth16 / 24 / 32-Bit (A/D Conversion)
Signal ProcessingDelay, Limiter, Low-Cut Filter
TimecodeYes
Frame Rates Supported23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy±2 ppm / 0.5 Frame per 24 Hrs (Timecode)

Connectivity

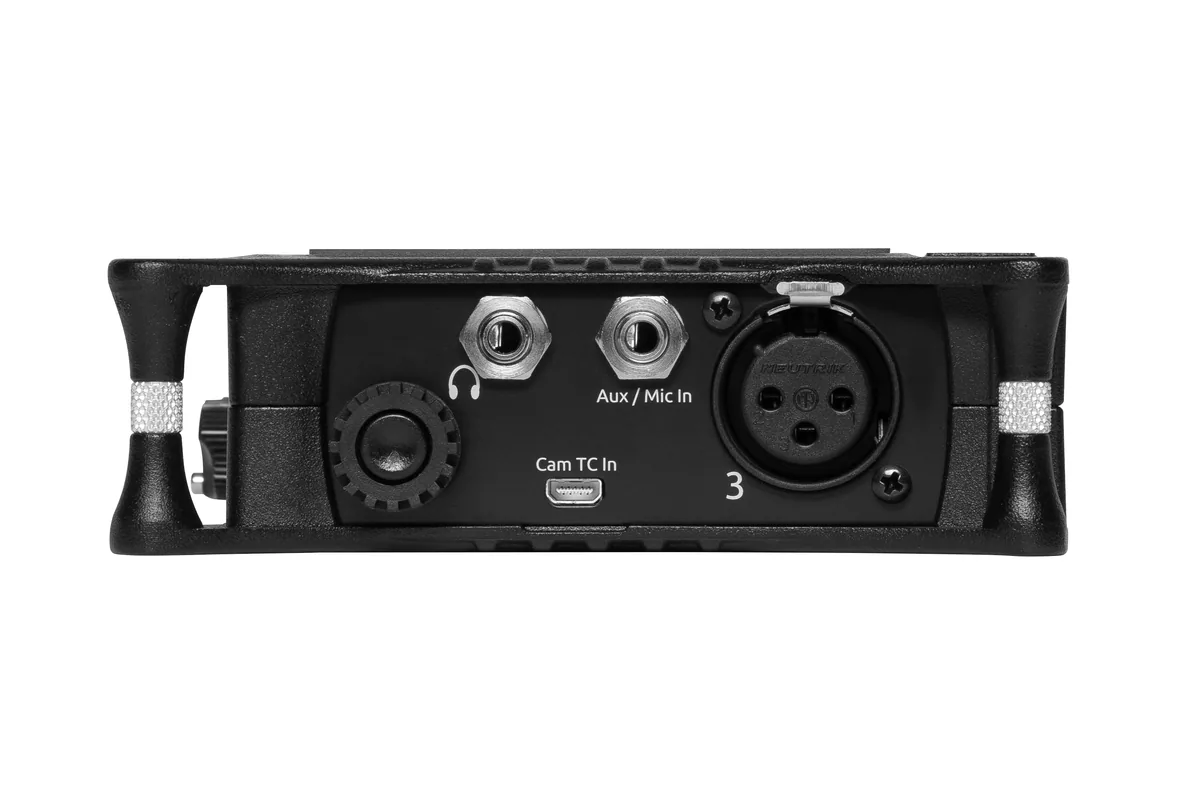

Analogue I/O3 x Combo XLR-1/4" 3-Pin Female Balanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Digital I/O1 x 1/8" / 3.5 mm SMPTE Timecode Input 1 x 1/8" / 3.5 mm SMPTE Timecode Output 1 x HDMI Type-D SMPTE Timecode Input
Phantom Power+48 V, Selectable On/Off
Phantom Power Current10 mA per Channel
Plug-In PowerYes, 3 V
Host Connection1 x USB Type-C (USB 2.0) 1 x USB Type-A (Control, Text Entry, Thumb Drive)
BluetoothBluetooth 4.0 (Remote)

Performance

Frequency ResponseWAV: 10 Hz to 80 kHz ±0.5 dB (At 192 kHz)
Gain RangeMic Inputs: +6 dB to +76 dB Line Inputs: -20 dB to +30 dB Mic/Aux Inputs: +10 dB to +40 dB Line/Aux Inputs: -10 dB to +20 dB Fader: Up to +20 dB Headphone Outputs: Up to +20 dB
Max Input LevelMic Inputs: +14 dBu Line Inputs: +28 dBu Mic/Aux Inputs: -10 dBu Line/Aux Inputs: +10 dBu
Max Output LevelOutputs: +7.8 dBu
Headphone Output Power300 mW per Channel
Dynamic RangeA/D Convertors: 142 dB
ImpedanceMic/Line Inputs: 4 Kilohms (Active-Balanced, Line Level, Mic Level) Mic/Aux Inputs: 100 Kilohms (Mic Level, Unbalanced) Timecode Input: 20 Kilohms Timecode Output: 1 Kilohms
THD+NInputs: -10 dBu (0.005%)
EIN-128 dBu (A-Weighted)

Power

Power OptionsBatteries, USB Bus Power, AC/DC Power Adapter
Battery Type4 x AA (Included) 2 x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)
AC/DC Power Adapter5 VDC (Included)
AC Input Power100 to 240 VAC, 50 / 60 Hz

Physical

Mounting Options1/4"-20 Male (Top) 1/4"-20 Female (Bottom)
Operating Temperature-4 to 86°F / -20 to 30°C
Storage Temperature-40 to 185°F / -40 to 85°C
Operating Humidity0 to 90%
Dimensions5.7 x 1.4 x 4.3" / 144.0 x 36.0 x 110.0 mm
Weight16.8 oz / 0.5 kg (Without Batteries)

In the box

  • Sound Devices MixPre-3 II 3-Channel / 5-Track Multitrack 32-Bit Field Recorder
  • Sound Devices MX-4AA Battery Sled for MixPre-3 and MixPre-6
  • Sound Devices MX-Charge AC Power Supply for MixPre-3 and MixPre-6
