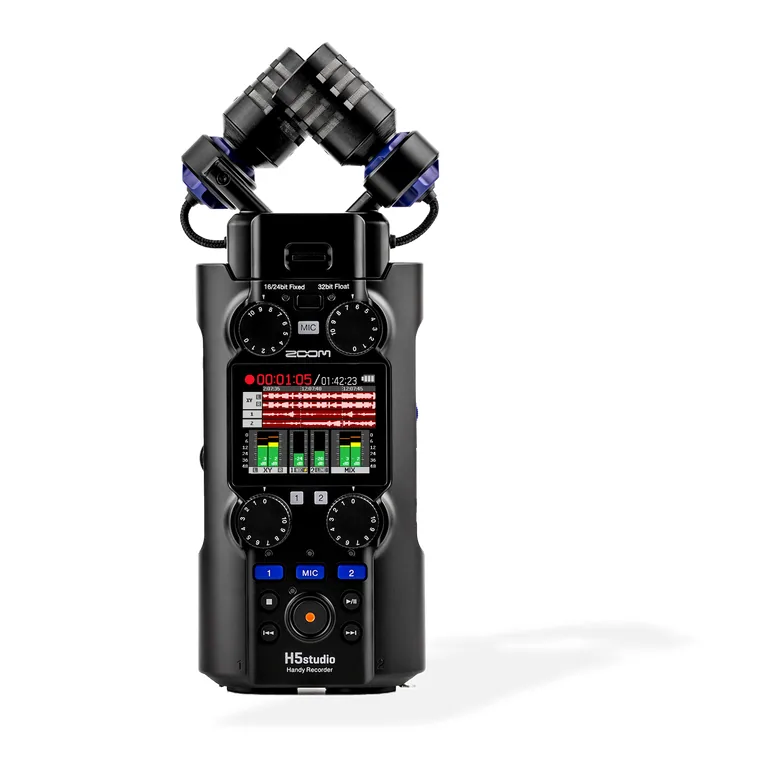

Zoom H5studio 4-Track Handy Recorder with 32-Bit Float Recording
Zoom

Zoom H5studio 4-Track Handy Recorder with 32-Bit Float Recording

SKU
H5studio
Barcode
4515260030170
  • Music, Podcasts, Video, Field Recording
  • Large-Diameter X/Y Stereo Microphone
  • Record 4-Tracks + Stereo Mix
  • 32-Bit Float and 16-/24-Bit Modes

Overview

Zoom H5studio 4-Track Handy Recorder with 32-Bit Float Recording by Zoom. Listed under Portable Digital Recorders in our Music & Audio range.

Weight: 14.5 oz / 410 g (with Batteries).

Key features

  • Music, Podcasts, Video, Field Recording
  • Large-Diameter X/Y Stereo Microphone
  • Record 4-Tracks + Stereo Mix
  • 32-Bit Float and 16-/24-Bit Modes
  • Rates up to 192 kHz, Colour LCD Screen
  • 2 XLR/TRS Combo Inputs with 48V Phantom

Specifications

Portable Recorder

Form FactorHandheld Recorder
Number of Tracks6 (4 Inputs + Stereo Mix)
Number of Input Channels4 (4 x Mono)
Maximum Sampling Rate192 kHz / 32-Bit Float
MicrophoneInterchangeable Cardioid
Number of Microphone Inputs2
Built-In SpeakerYes
Display2" / LCD
Memory Card SupportmicroSDHC, microSDXC (2 TB)
Internal StorageNo
Special FeaturesSlate Function

Recording

Audio File FormatsWAV
Sample Rates192 kHz
Bit DepthUp to 32-Bit (Floating Point)
Signal Processing & FXSpeed Change
Timecode SupportYes
Recording Time15 Hrs
Included SoftwareNo

Connectivity

Analogue I/O2x Combo XLR-1/4" 3-Pin Input 1x 1/8" / 3.5 mm TRS Mic Input
Digital I/ONo
Phantom Power+48 V
Plug-In PowerYes
System ConnectionUSB-C
Audio Interface CapabilityMulti-Track
WirelessBluetooth *Via Optional Adapter
Mobile App CompatibleYes: Android & iOS

Performance

Gain/Trim Range0 to +60 dB
Max Input Level1/8" / 3.5 mm Mic Inputs: +4 dBu 1/8" / 3.5 mm Line Inputs: +24 dBu
Max Output LevelLine Outputs: +1 dBu
Headphone Output Power20 mW per Channel
ImpedanceMic/Line Inputs: ≥3 Kilohms
Microphone Sensitivity-40 dB/Pa
Microphone Max SPL140 dB SPL

Power

Power OptionsBattery, USB Bus Power
Battery Type4x AA
Approximate Battery Life15 Hours
AC/DC Power Adapter5 VDC (Not Included)

Physical

Included AccessoriesNo
Mounting Options1/4"-20 Female
Dimensions3.4 x 2.1 x 8.1" / 86 x 54.6 x 206 mm
Weight14.5 oz / 410 g (with Batteries)

In the box

  • Zoom H5studio 4-Track Handy Recorder with 32-Bit Float Recording
