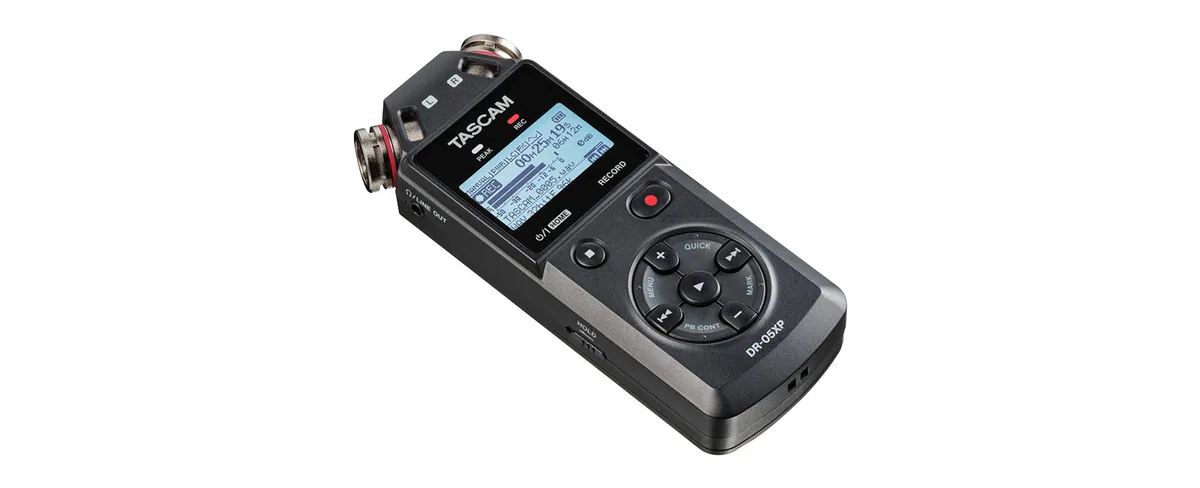

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
Tascam

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder

SKU
DR-05XP
Barcode
4907034135394
  • Speech, Effects, and Music Recording
  • Onboard Omni Mics, Built-In Speaker
  • 3.5mm Mic/Line Input w/ Plug-In Power
  • Built-In Tuner, AEQ, and Reverb

Overview

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder by Tascam. Listed under Portable Digital Recorders in our Music & Audio range.

Weight: 4.4 oz / 126 g (without Batteries) 6.1 oz / 174 g (with Batteries).

Key features

  • Speech, Effects, and Music Recording
  • Onboard Omni Mics, Built-In Speaker
  • 3.5mm Mic/Line Input w/ Plug-In Power
  • Built-In Tuner, AEQ, and Reverb
  • Records in 32-Bit Float up to 96 kHz
  • 3.5mm Line/Headphone Output

Specifications

Portable Recorder

Form FactorHandheld Recorder
Number of TracksWAV: 2
Number of Input Channels2 (2 x Mono, 1 x Stereo)
Maximum Sampling Rate96 kHz / 32-Bit Float
MicrophoneBuilt-In Omnidirectional Condenser Stereo Pair, A/B Configuration
Number of Microphone Inputs1
Built-In SpeakerYes, 0.3 W Mono
DisplayMonochrome LCD (Backlit)
Memory Card SupportmicroSD microSDHC microSDXC (Up to 512 GB)
Internal StorageNo
Special FeaturesOverdubbing, Voice Activation

Recording

Audio File FormatsBWF, MP3, WAV
Sample RatesWAV: 44.1 / 48 / 96 kHz
Bit Depth16 / 24 / 32-Bit
Bit Rates32 to 320 kb/s (Record) 32 to 320 kb/s + VBR (Playback)
Signal Processing & FXAuto Gain, AEQ, Limiter, Low-Cut Filter, Reverb
Timecode SupportNo
Recording TimeWAV 44.1 kHz/16-Bit: 789 Hrs (Stereo) WAV 48 kHz/16-Bit: 526 Hrs (Stereo) WAV 96 kHz/16-Bit: 362 Hrs (Stereo) WAV 44.1 kHz/24-Bit: 526 Hrs (Stereo) WAV 48 kHz/24-Bit: 724 Hrs (Stereo) WAV 96 kHz/24-Bit: 241 Hrs (Stereo) WAV 44.1 kHz/32-Bit: 394 Hrs WAV 48 kHz/32-Bit: 362 Hrs WAV 96 kHz/32-Bit: 181 Hrs
Included SoftwareNo

Connectivity

Analogue I/O1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output
Digital I/ONo
Phantom PowerNo
Plug-In PowerYes
System Connection1x USB-C (1.1, 2.0)
Audio Interface CapabilityStereo Only
WirelessNo
Mobile App CompatibleNo

Performance

Frequency Response20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA) 20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA)
Max Input LevelMic/Line Inputs: -4 dBV
Max Output LevelLine Outputs: +2 dBV
ImpedanceMic/Line Inputs: ≥18 Kilohms (Plug-In Power Off) ≥2 Kilohms (Plug-In Power On)
THD+N≤0.01%
Microphone Max SPL125 dB SPL

Power

Power OptionsBattery, USB Bus Power, AC/DC Power Adapter
Battery Type2x AA (Not Included)
Approximate Battery LifeWAV 44.1 kHz/16-Bit: 17.5 Hours (Alkaline, 2 Channels, Recording) WAV 96 kHz/24-Bit: 15.5 Hours (Alkaline, 2 Channels, Recording)
AC/DC Power Adapter5 VDC at 0.5 A (Not Included)

Physical

Included AccessoriesNo
Mounting Options1/4"-20 Female
Operating Conditions32 to 104°F / 0 to 40°C
Dimensions2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm
Weight4.4 oz / 126 g (without Batteries) 6.1 oz / 174 g (with Batteries)

In the box

  • TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
