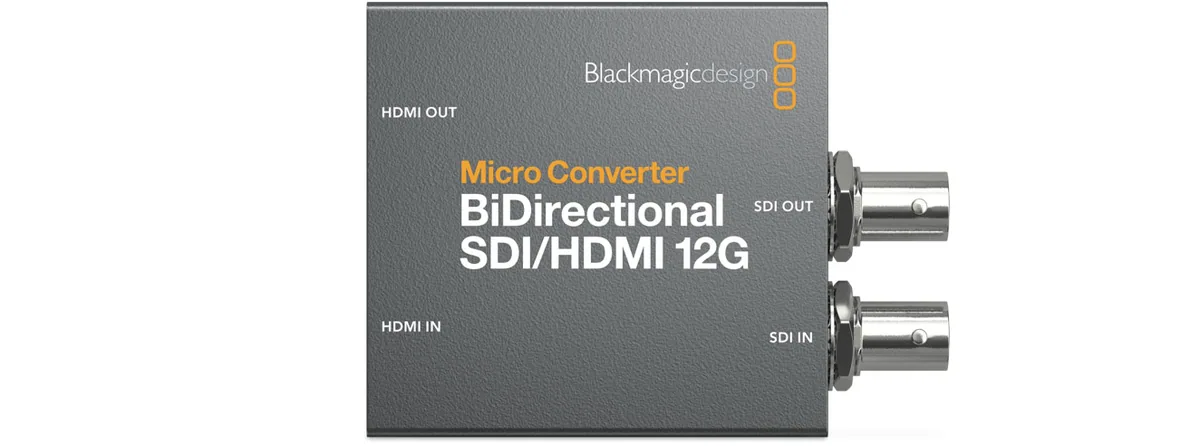

Blackmagic Micro Converter BiDirectional SDI/HDMI 12G
Blackmagic

Blackmagic Micro Converter BiDirectional SDI/HDMI 12G

SKU
CONVBDC/SDI/HDMI12G
Barcode
9338716007046
  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support

Overview

Blackmagic Micro Converter BiDirectional SDI/HDMI 12G by Blackmagic, model CONVBDC/SDI/HDMI12G. Listed under Signal Converters in our Video range.

Weight: 6.13 oz / 174 g.

Key features

  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support
  • SDI Re-Clocking/HDMI Timecode
  • HDMI Copy Protection Support

Specifications

Inputs / Outputs

Video Inputs1x BNC (12G-SDI) Female 1x HDMI (2.0) Female
Audio InputsNo
Video Outputs1x BNC (12G-SDI) Female 1x HDMI (2.0) Female
Audio OutputsNo
Other I/O1x USB-C Firmware Input (Shared Power)
Expansion SlotsNo

Format Support

Input Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 50 fps 576i / 625 lines at 59.94 fps
Output Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded AudioHDMI/SDI

Standards

Video Standard ComplianceSMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP SupportYes, Version 2.2
HDR SupportNot Specified by Manufacturer
HDMI CECYes

Hardware

Tally LightYes
WirelessNo
OS CompatibilitymacOS 10.15.15 or Later Windows 11.1 or Later

Power

Power I/O1x USB-C (4.4 to 5.2 VDC ) Input
Power ConsumptionDevice: 5 W

Environmental

Operating Temperature32 to 72°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90%

General

Dimensions3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight6.13 oz / 174 g

In the box

  • Blackmagic Micro Convertor BiDirectional SDI/HDMI 12G
