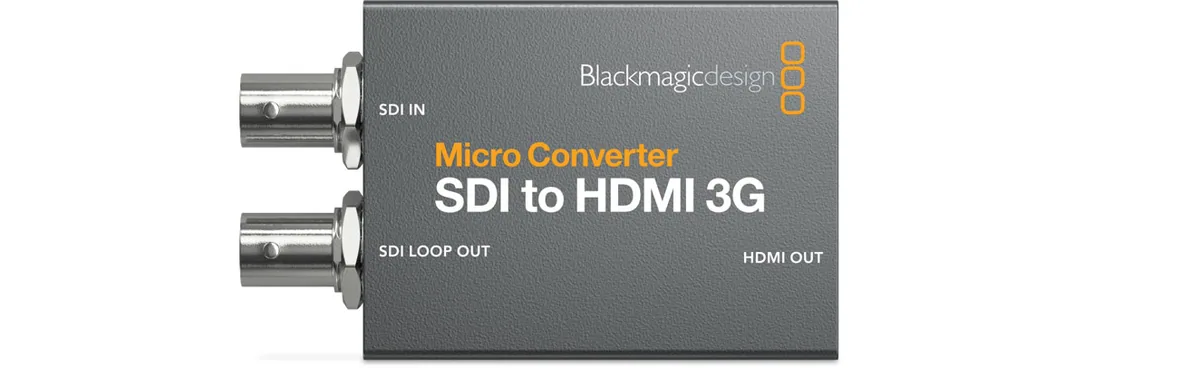

Blackmagic Design Micro Converter SDI to HDMI 3G
Blackmagic

Blackmagic Design Micro Converter SDI to HDMI 3G

SKU
CONVCMIC/SH03G
Barcode
9338716007176
  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out
  • 1080p60 HDMI Out

Overview

Blackmagic Design Micro Converter SDI to HDMI 3G by Blackmagic, model CONVCMIC/SH03G. Listed under Signal Converters in our Video range.

Weight: 5.29 oz / 150 g.

Key features

  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out
  • 1080p60 HDMI Out
  • 3D LUT for Calibrating or Loop Output
  • SDI A/B Selection
  • USB Power
  • Embedded Audio

Specifications

Inputs / Outputs

Video Inputs1x BNC (3G-SDI)
Audio InputsNo
Video Outputs1x BNC (3G-SDI) (Loop Output) 1x HDMI
Audio OutputsNo
Other I/O1x USB-C Input
Expansion SlotsNo

Format Support

Input Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps
Output Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded AudioHDMI/SDI

Standards

Video Standard ComplianceSMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP SupportYes, Version 2.2

Hardware

Tally LightYes
WirelessNo
OS CompatibilitymacOS 10.14.15 or Later Windows 10

Power

Power I/O1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption2.5 W

Environmental

Operating Temperature32 to 72°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90%

General

Dimensions3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight5.29 oz / 150 g

In the box

  • Blackmagic Micro Convertor SDI to HDMI 3G
