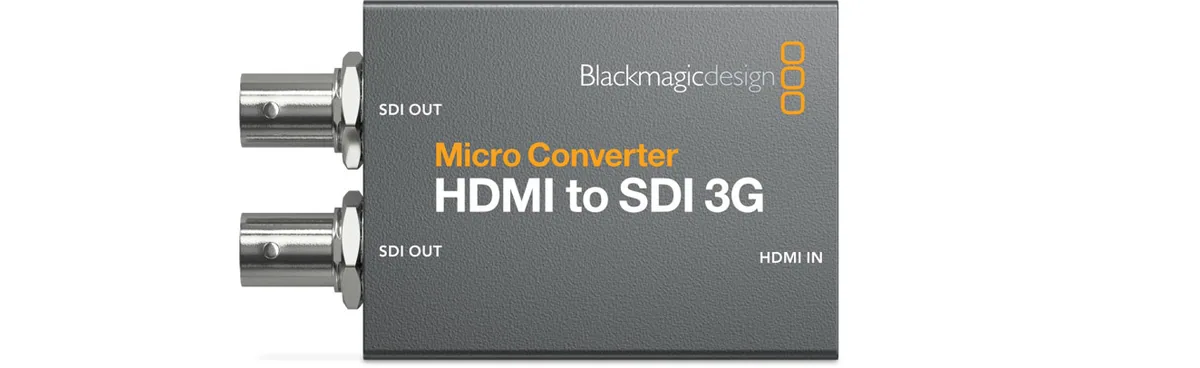

Blackmagic Micro Converter HDMI to SDI 3G no PSU
Blackmagic

Blackmagic Micro Converter HDMI to SDI 3G no PSU

SKU
CONVCMIC/HS03G
Barcode
9338716007152
  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to 1080p60 Resolution I/O
  • USB Power/SDI Re-Clocking/Timecode

Overview

Blackmagic Micro Converter HDMI to SDI 3G no PSU by Blackmagic, model CONVCMIC/HS03G. Listed under Signal Converters in our Video range.

Weight: 5.29 oz / 150 g.

Key features

  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to 1080p60 Resolution I/O
  • USB Power/SDI Re-Clocking/Timecode
  • Automatic Input Signal Detection
  • Compact, Rugged Design

Specifications

Inputs / Outputs

Video Inputs1x HDMI (2.0)
Audio InputsNo
Video Outputs2x BNC (3G-SDI)
Audio OutputsNo
Other I/O1x USB-C Input
Expansion SlotsNo

Format Support

Input Video FormatHDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Output Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded AudioHDMI/SDI
Video Standard ComplianceSMPTE 259M/292M/296M/424M/425M
HDCP SupportYes, Version 2.2

Hardware

WirelessNo
OS CompatibilitymacOS 10.14.15 or Later Windows 10

Power

Power I/O1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption2 W

Environmental

Operating Temperature32 to 72°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90%

General

Dimensions3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight5.29 oz / 150 g

In the box

  • Blackmagic Micro Convertor HDMI to SDI 3G
