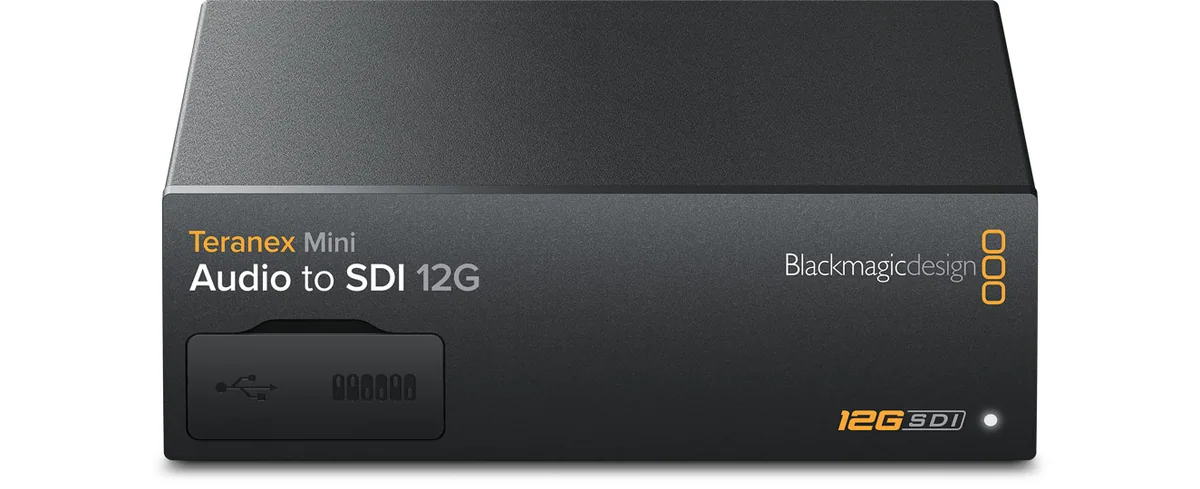

Blackmagic Design Teranex Mini Audio to SDI 12G Converter
Blackmagic

Blackmagic Design Teranex Mini Audio to SDI 12G Converter

SKU
CONVNTRM/CB/AUSDI
Barcode
9338716003291
  • Advanced High-Data Rate Embedder
  • Embed Audio into up to 4K SDI Signals
  • Embed via XLR, AES/EBU, RCA, or S/PDIF
  • 12G-SDI Input and Output

Overview

Blackmagic Design Teranex Mini Audio to SDI 12G Converter by Blackmagic, model CONVNTRM/CB/AUSDI. Listed under Signal Converters in our Video range.

Weight: 0.6 kg.

Key features

  • Advanced High-Data Rate Embedder
  • Embed Audio into up to 4K SDI Signals
  • Embed via XLR, AES/EBU, RCA, or S/PDIF
  • 12G-SDI Input and Output
  • Supports up to Full 4K DCI 4096x2160p

Specifications

SDI Video Input1x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output1x 12G-SDI output
Analogue Audio Input2 channels professional balanced analogue audio via XLR connectors 2 channel unbalanced analogue line level via RCA connectors Right XLR can be configured for timecode input
AES/EBU Audio Input4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input
Optical Audio InputS/PDIF signal with TOSLINK connector
Multi Rate SupportAutomatic switching between SD/HD/2K and 4K
Updates and ConfigurationUSB or Ethernet
Re-ClockingYes
SD Format Support525/29.97 NTSC, 625/25 PAL
HD Format Support1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
4K Format Support3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
SDI Video RatesSDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling4:2:2 and 4:4:4
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
SDI Colour PrecisionYUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
SDI Colour SpaceREC 601, REC 709
Software ControlMac OS X and Windows software upgrade via USB and Ethernet
Internal Software UpgradeVia included updater application
Basic Settings ControlMini Switches, USB, and Ethernet via free software utility
Power Supply1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input
Power Over EthernetCan be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption15 W
Operational Voltage Range90 - 240 VAC
Operating Temperature0 to 40°C
Storage Temperature-20 to 60°C
Relative Humidity0 to 90% non-condensing
DimensionsW x H x D: 14 x 4.6 x 17 cm (with SDI port included)
Weight0.6 kg

In the box

  • Blackmagic Design Teranex Mini Audio to SDI 12G Converter
  • Software SD Card
  • Limited 3-Year Warranty
