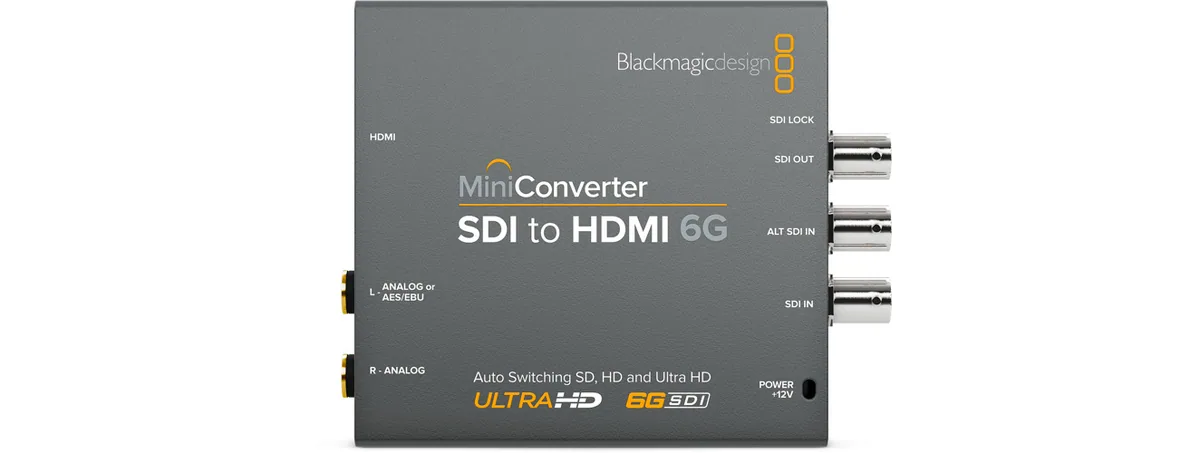

Blackmagic Design Mini Converter – SDI to HDMI 6G
Blackmagic

Blackmagic Design Mini Converter – SDI to HDMI 6G

SKU
CONVMBSH4K6G
Model
CONVMBSH
Barcode
9338716005172
  • 2 x 4K SDI Input
  • 1 x HDMI Type A and 1 x SDI Output
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection

Overview

Blackmagic Design Mini Converter – SDI to HDMI 6G by Blackmagic, model CONVMBSH. Listed under Signal Converters in our Video range.

Weight: 256.85 g.

Key features

  • 2 x 4K SDI Input
  • 1 x HDMI Type A and 1 x SDI Output
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-Bit, 48 kHz Audio

Specifications

Video Input2 x 6G-SDI
Video Output1 x HDMI type A 1 x 6G-SDI
Multi-Rate SupportAuto detection of SD, HD, or 4K signals
ReclockingYes
Audio OutputAnalogue: 2 channels with 1 x 1/4" (6.3 mm) jack per channel AES/EBU: 4 channels with 1 x 1/4" jack (6.3 mm)
Format SupportDCI 4K 24p UHD 4K 3840x2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD: NTSC: 525i/59.94 PAL: 625i/50
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081
SDI Video RatesSDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
SDI Video Sampling4:2:2 4:4:4
SDI Colour Precision4:2:2 4:4:4
SDI Colour SpaceYUV RGB
SDI Audio Sampling24-bit, 48 kHz
SDI Auto SwitchingAutomatically detects SD, HD, or 6G-SDI
HDMI Format SupportUHD 4K 3840x2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD: NTSC: 525i/59.94 PAL: 625i/50
HDMI Colour SpaceYUV and RGB
HDMI Colour Precision4:2:2 4:4:4
Format ConversionHD down conversion
Settings ControlMini switches or USB software
Firmware UpgradeableVia USB
Power Supply12 VDC
Power Consumption5.2 W
Operational Voltage Range12 to 31 VDC
Operating Temperature32 to 104°F / 0 to 40 °C
Storage Temperature-4 to 113°F / -20 to 45 °C
Relative Humidity0 to 90% non-condensing
Dimensions11.40 x 9.22 x 2.29 cm
Weight256.85 g

In the box

  • Blackmagic Design Mini Converter - SDI to HDMI 6G
  • 12V Power Supply with International Socket Adapters
