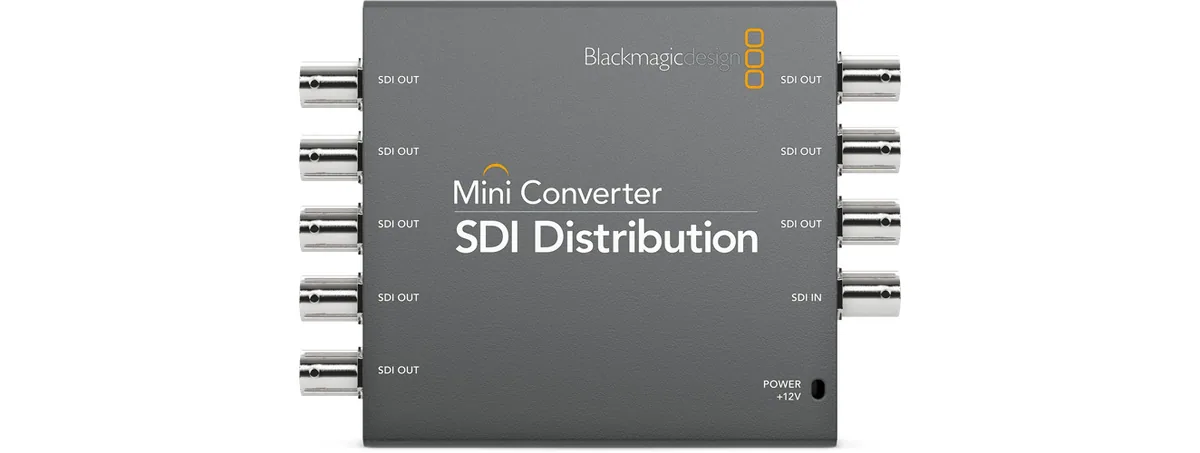

Blackmagic Design Mini Converter SDI Distribution
Blackmagic

Blackmagic Design Mini Converter SDI Distribution

SKU
CONVMSDIDA
Barcode
9338716001235
  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio

Overview

Blackmagic Design Mini Converter SDI Distribution by Blackmagic, model CONVMSDIDA. Listed under Video Routers, Switchers & DA’s in our Video range.

Key features

  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio
  • 1080p & 2K Distribution

Specifications

Inputs1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs8x SDI: Automatically match the SDI video input
Re-clockingYes
Supported FormatsNTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling4:2:2 and 4:4:4
Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
Colour Precision4:2:2 and 4:4:4
Colour SpaceYUV and RGB
ASI SupportYes
Power Supply12V universal power supply included
Power Consumption110V: 40mA 220V: 20mA
Voltage Range12-30V

In the box

  • Blackmagic Design Mini Converter SDI Distribution
  • 12V Universal Power Supply with International Socket Adapters for All Countries
  • 3 Year Limited Warranty
