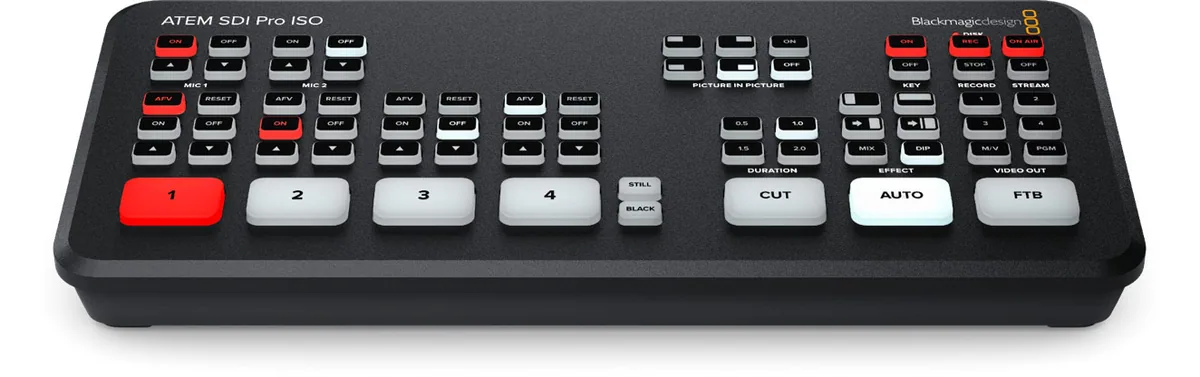

Blackmagic Design ATEM SDI Pro ISO Live Production Switcher
Blackmagic

Blackmagic Design ATEM SDI Pro ISO Live Production Switcher

SKU
SWATEMMXEPBPRISO
Barcode
9338716007954
  • 4-Channel Live Stream 3G-SDI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status

Overview

Blackmagic Design ATEM SDI Pro ISO Live Production Switcher by Blackmagic, model SWATEMMXEPBPRISO. Listed under Video Routers, Switchers & DA’s in our Video range.

Key features

  • 4-Channel Live Stream 3G-SDI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status

Specifications

Connections

Total Video Inputs4
Total Outputs3
Total Aux Outputs2
Total Audio Inputs2 x 3.5mm stereo mini jack.
Total Audio OutputsNone, embedded audio only.
Timecode ConnectionNone
SDI Video Inputs4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video Input Re-SyncOn all 4 SDI inputs.
Frame Rate and Format ConvertersOn all 4 SDI inputs.
SDI Program Outputs2
EthernetEthernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

HD Video Input Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HD Video Output Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video StandardsNone
Video Sampling4:2:2 YUV
Colour Precision10-bit
Colour SpaceRec 709
Colourspace ConversionHardware based real time.

Product Specifics

Upstream Keyers1
Downstream Keyers1
Advanced Chroma Keyers1
Linear/Luma Keyers2
Transition KeyerDVE only.
Total Number of Layers5
Pattern Generators1
Colour Generators2
DVE With Borders and Drop Shadow1
InterfaceMinimum monitor resolution of 1366 x 768.

Audio

Audio Mixer6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog InputUnbalanced stereo
Analog Input DelayUp to 8 frames
Input Impedance1.8k
Max Input Level+6dBV
Mic Plug In PowerAvailable on both 3.5mm mini jack connections.

Streaming

Direct StreamingATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and AudioUSB-C 3.1 Gen 1 expansion port can record directly to external media.
Video Recording4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.
SwitchingProgram switching recorded as a DaVinci Resolve project .drp file.
Media FormatSupports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video StandardHD

Media Player

Media Players1
ChannelsFill and key for each Media Player.
Media Pool Still Image Capacity20 with fill and key.
Media Pool Still Image FormatPNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control PanelBuilt in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel ConnectionEthernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control Panel CompatibilityIncludes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel IncludedATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11.

Software

Software UpdatesUsing USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
ConfigurationSet via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating SystemsMac 11.0 Big Sur; Mac 12.0 Monterey or later. Windows 10, 64-bit; Windows 11.

Power Requirements

Power Supply1 x External 12V power supply.
Power Usage36W

Environmental Specifications

Operating Temperature5° C to 40° C
Storage Temperature-10° to 60° C
Relative Humidity0% to 90% non-condensing
