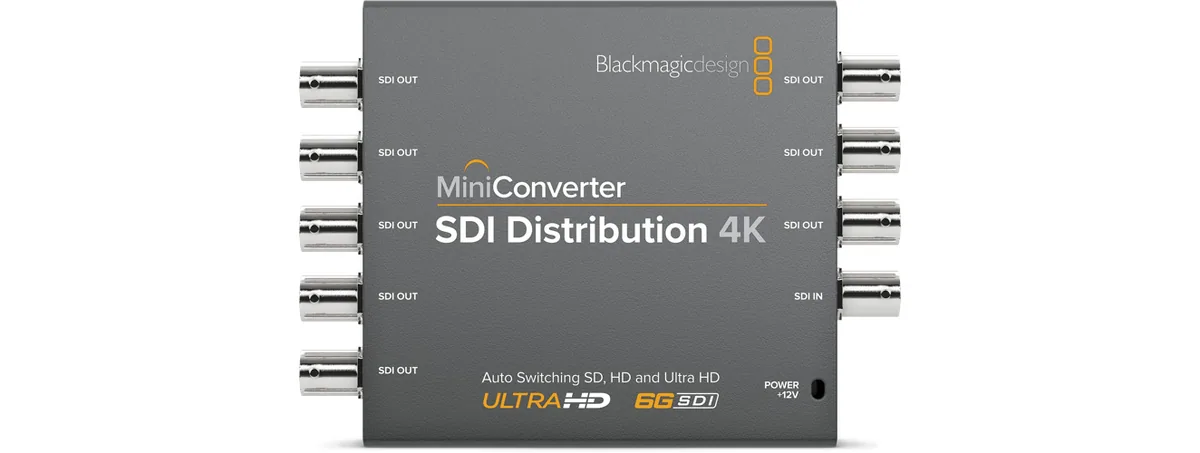

Blackmagic Design Mini Converter SDI Distribution 4K
Blackmagic

Blackmagic Design Mini Converter SDI Distribution 4K

SKU
CONVMSDIDA4K
Model
Mini Converter
Barcode
9338716002621
  • Single Link SD/HD/3G/6G-SDI Input
  • 8x Single Link SD/HD/3G/6G-SDI Outputs
  • Re-Clocked Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals

Overview

Blackmagic Design Mini Converter SDI Distribution 4K by Blackmagic. Listed under Video Routers, Switchers & DA’s in our Video range.

Weight: 336.79 g.

Key features

  • Single Link SD/HD/3G/6G-SDI Input
  • 8x Single Link SD/HD/3G/6G-SDI Outputs
  • Re-Clocked Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection

Specifications

Video Input1 x 6G-SDI
Video Output8 x 6G-SDI
Multi-Rate SupportAuto detection of SD, HD, or 6G SDI signals
ReclockingYes
Format SupportSD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
SDI Video RatesSwitchable between SD, HD, and 6G SDI
SDI Video Sampling4:2:2 and 4:4:4
SDI Audio Sampling24-bit, 48 kHz
SDI Colour Precision4:2:2 and 4:4:4
SDI Colour SpaceYUV and RGB
SDI Auto SwitchingAutomatically detects SD, HD, or 6G-SDI
ASI SupportYes
Settings ControlDIP switches or USB software for Mac PS X and Windows
Firmware UpgradeableVia USB 2.0
Power Supply12 VDC
Power Consumption4.8 W
Operational Voltage Range12 to 30 VDC
Operating Temperature0 to 40 ° C
Storage Temperature-20 to 45 ° C
Relative Humidity0 to 90% non-condensing
Dimensions12.19 x 9.22 x 2.29 cm
Weight336.79 g

In the box

  • Blackmagic Design Mini Converter SDI Distribution 4K
  • Software CD-ROM
  • 12V Power Supply with International Socket Adapters
  • Limited 3-Year Warranty
