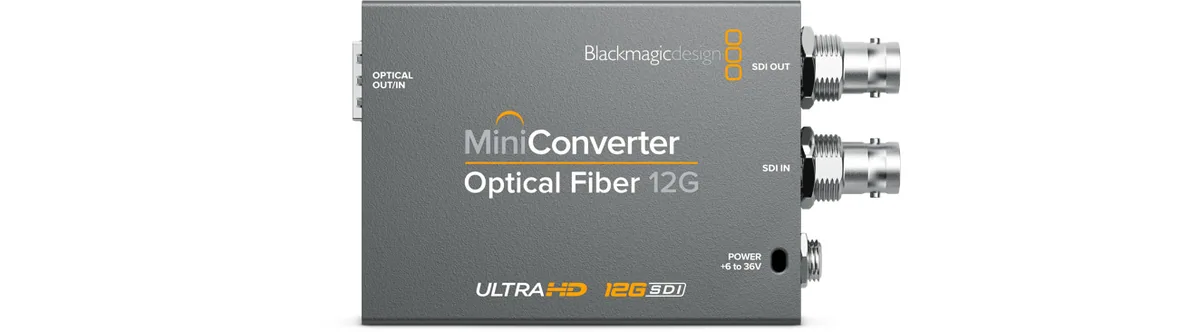

Blackmagic Design Mini Converter Optical Fibre 12G SDI
Blackmagic

Blackmagic Design Mini Converter Optical Fibre 12G SDI

SKU
CONVMOF12G
Model
CONVMOF
Barcode
9338716005400
  • SDI to Optical Fibre Conversion
  • Bi-Directional Capability
  • 12G-SDI Technology
  • Auto detection of SD, HD or 12G-SDI

Overview

Blackmagic Design Mini Converter Optical Fibre 12G SDI by Blackmagic, model CONVMOF. Listed under Signal Converters in our Video range.

Key features

  • SDI to Optical Fibre Conversion
  • Bi-Directional Capability
  • 12G-SDI Technology
  • Auto detection of SD, HD or 12G-SDI

Specifications

Connections

SDI Video Inputs1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input
SDI Video OutputsAutomatically matches the SD, HD and 12G-SDI video input on the Optical Fiber
Optical Fiber Video Inputs1 x 10 bit SD/HD/12G- SDI switchable
Optical Fiber Video OutputsAutomatically matches the SD, HD and 12G-SDI video input
Optical Fiber Audio Inputs16 channel embedded
Optical Fiber Audio Outputs16 channel embedded
Multi Rate SupportAuto detection of SD, HD or 12G-SDI
ReclockingYes

Standards

SD Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
2K Video Standards2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video RatesSDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling4:2:2 and 4:4:4
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit
SDI Color Precision4:2:2 and 4:4:4
SDI Color SpaceYUV and RGB
SDI Auto SwitchingAutomatically detects SD, HD or 12G-SDI
ASI SupportYes

Operating Systems

MacmacOS 10.12 Sierra macOS High Sierra 10.13 or later
WindowsWindows 8.1 Windows 10

Power Requirements

Power Supply+12V universal power supply included with international socket adapters for all countries. Cable tie point
Power Consumption2 Watts
Operational Voltage Range6 - 36V DC

Environmental Specifications

Operating temperature0° to 40° C (32° to 104° F)
Storage temperature-20° to 45° C (-4° to 113° F)
Relative Humidity0% to 90% non-condensing

In the box

  • Blackmagic Design Mini Converter Optical Fibre 12G
  • Universal power supply with international socket adapters
