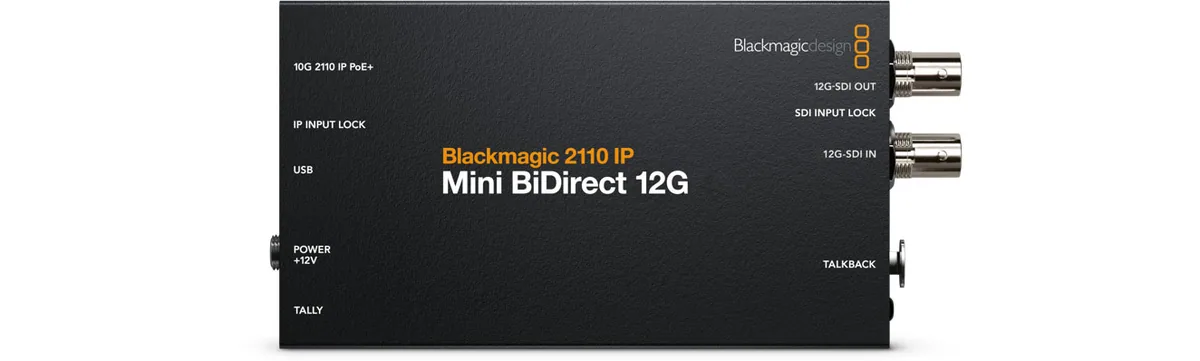

Blackmagic 2110 IP Mini BiDirect 12G Converter
Blackmagic

Blackmagic 2110 IP Mini BiDirect 12G Converter

SKU
CONVNVIPF/IP/12G
Model
2110 IP Mini BiDirect 12G Converter
Barcode
9338716009033
  • 12G-SDI to 2110 IP Convertor
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SMPTE-2110 IP
  • 5-Pin XLR Talkback Control

Overview

Blackmagic 2110 IP Mini BiDirect 12G Converter by Blackmagic. Listed under Signal Converters in our Video range.

Weight: 10.41 oz / 295 g.

Key features

  • 12G-SDI to 2110 IP Convertor
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SMPTE-2110 IP
  • 5-Pin XLR Talkback Control
  • Windows/macOS Software Utility
  • PoE and 10G Ethernet Power

Specifications

Key Specs

Video I/OInput 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female
Audio I/OInput 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female
Video ResolutionBNC Input/Output (4:2:2) 4096 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p up to 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps
WirelessNo
Other I/OInput/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) 1x USB-C (Device)
Expansion SlotsNo
Embedded AudioLAN (RJ45)/SDI

Standards

HDCP SupportNo

Power

Power I/O1x Barrel (12 VDC ) Input
PoE SupportPoE++ 802.3bt

General

Operating Conditions41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions-4 to 113°F / -20 to 45°C up to 90% Humidity
Dimensions5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm
Weight10.41 oz / 295 g

In the box

  • Blackmagic 2110 IP Mini BiDirect 12G Convertor
