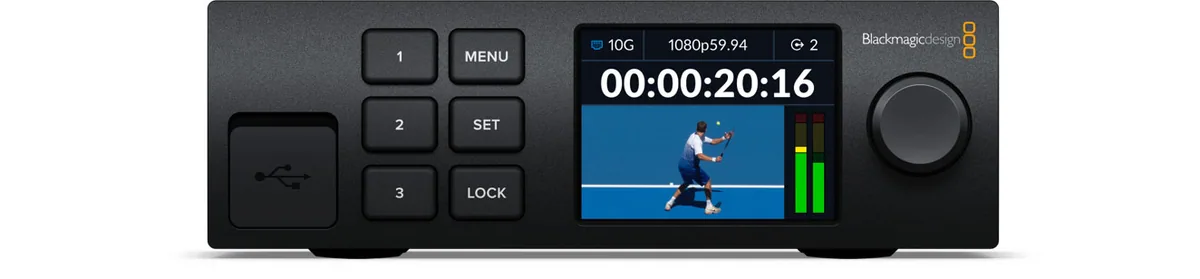

Blackmagic 2110 IP Converter 3x3G
Blackmagic

Blackmagic 2110 IP Converter 3x3G

SKU
CONVNVIPA3/3G
Barcode
9338716008395
  • Convert SDI Equipment to 2110 IP Video Systems
  • Rack Mount for Installation into Broadcast Systems
  • Compact Rack Mountable Design
  • Connect to any 3G‑SDI Equipment

Overview

Blackmagic 2110 IP Converter 3x3G by Blackmagic, model CONVNVIPA3/3G. Listed under Signal Converters in our Video range.

Key features

  • Convert SDI Equipment to 2110 IP Video Systems
  • Rack Mount for Installation into Broadcast Systems
  • Compact Rack Mountable Design
  • Connect to any 3G‑SDI Equipment
  • 10G Ethernet for Multiple SMPTE 2110 IP Channels

Specifications

Connections

SDI Inputs3
SDI Loop Outputs3
SDI Outputs3
SDI Audio Inputs16 channels embedded audio.
SMPTE 2110 Input / Output10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
10G Ethernet Port1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Reference OutputTri-Sync or Black Burst
Computer InterfaceUSB-C for updates, configuration and control.

Video Standards

SD Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITUR BT.656, ITU-R BT.601.
SDI Metadata SupportRP 188/SMPTE 12M-2 and closed captioning
Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
Colour Precision8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color SpaceREC 601, REC 709

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)IGMP v2
SMPTE 2110-21 (Traffic Shaping)Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time Protocol.IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
NMOS IS-04 Discovery and Registrationv1.3.2 Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Managementv1.1.2
NMOS BCP-002-01Natural Grouping
NMOS BCP-004-01Receiver capabilities

Control

Built in Control Panel6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External ControlRJ-45 10Gb/s Ethernet and USB-C.
DisplayBuilt in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu setting
Power Supply1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE power supplies.

In the box

  • Blackmagic 2110 IP Converter 3x3G
  • Welcome wallet with QR code for software download
