DJI

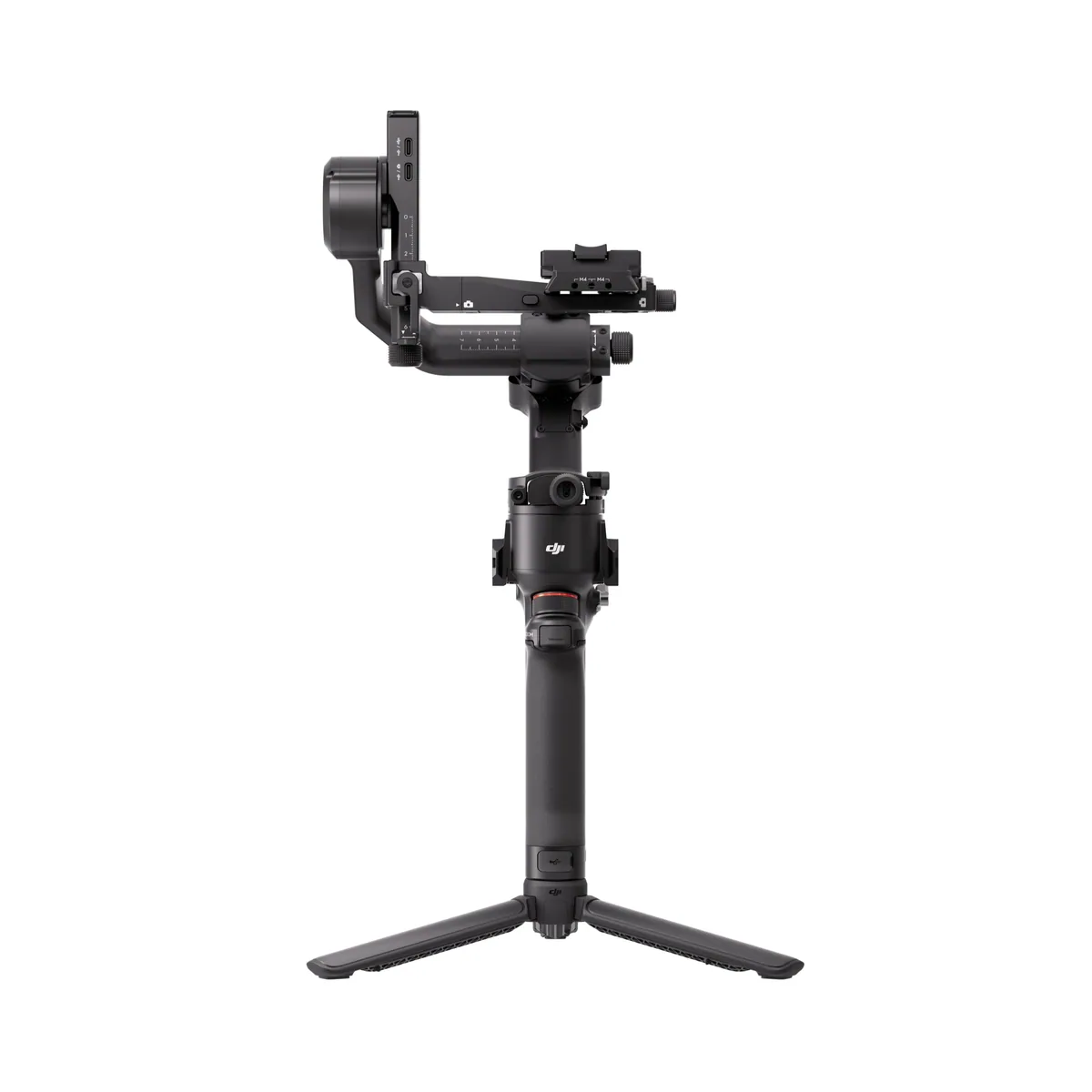

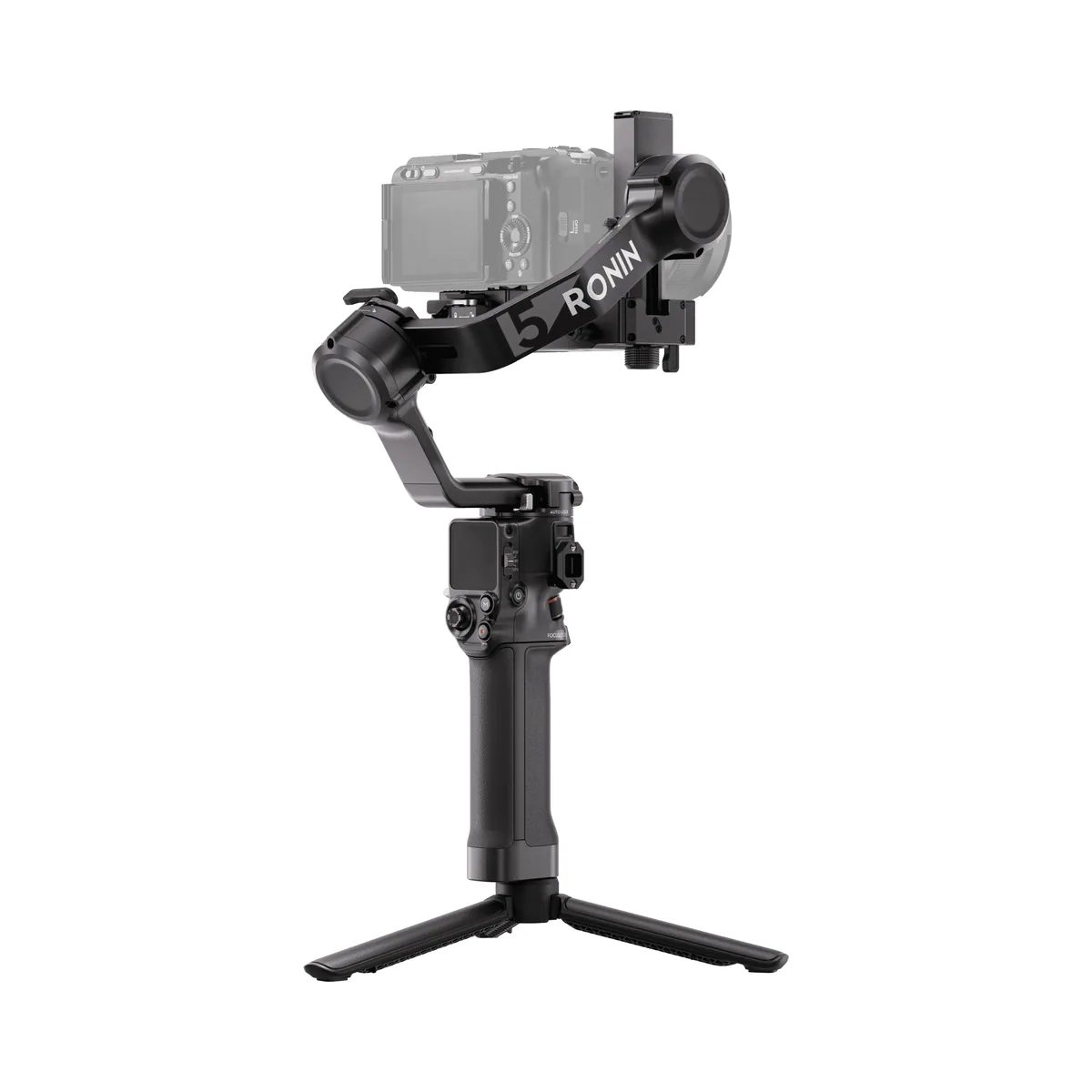

DJI RS 5 Gimbal Stabilizer
- SKU
- CP.RN.00000496.03
- Model
- RS 5
- Barcode
- 190021157170
- Lightweight 3.2 lb Body, 6.6 lb Payload
- Z-Axis Indicator
- One-Hour Full Charge with 65W PD Charger
- 2nd Gen Automated Axis Locks
Overview
DJI RS 5 Gimbal Stabilizer by DJI. Listed under Gimbal Stabilisers in our Video range.
Weight: 2.630 lb / 1.193 kg.
Key features
- Lightweight 3.2 lb Body, 6.6 lb Payload
- Z-Axis Indicator
- One-Hour Full Charge with 65W PD Charger
- 2nd Gen Automated Axis Locks
- Separate AI Tracking and Framing Module
- Separate Electronic Control Handle
Specifications
Gimbal
| Load Capacity | 6.6 lb / 3 kg |
|---|---|
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Mechanical Range Yaw (Pan): 360° Roll: 335° (-95 to 240°) Pitch (Tilt): 326° (-112 to 214°) |
| Follow Speed | Pan/Tilt/Roll: 360°/s |
| Counterweight | Available, Not Included |
| Joystick Controller | No |
Compatibility
| Camera Control | On Compatible Models ( See Full Compatibility List ) |
|---|---|
| Camera Compatibility | Universal |
| Camera Mounting Screw | 1x 1/4"-20 Male |
Connectivity
| Inputs/Outputs | 1x USB-C (Power) |
|---|---|
| Wireless | 2.4 GHz Radio/RF / Bluetooth 5.1 |
| Mobile App Compatible | Yes: Android & iOS App Name: Ronin App |
Battery
| Battery Type | Built-In |
|---|---|
| Battery Runtime | 14 Hours |
| Battery Charging Time | 1 Hours |
Power
| Operating Voltage | 7.2 VDC |
|---|
General
| Display Type | Fixed Touchscreen OLED |
|---|---|
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Material | Aluminium Alloy |
| Accessory Mounting | 1 x 1/4"-20 Female 2 x NATO Rail |
| Dimensions | 16.5 x 8.8 x 7.6" / 418.8 x 223.2 x 192.2 mm 10.2 x 9.7 x 4.6" / 258.7 x 247.4 x 115.7 mm (Folded) |
| Weight | 2.630 lb / 1.193 kg |
Transmitter
| Transmitter I/O | 2 x NATO 2 x USB-C |
|---|---|
| Transmission System | Bluetooth 5.1 2.4 GHz |

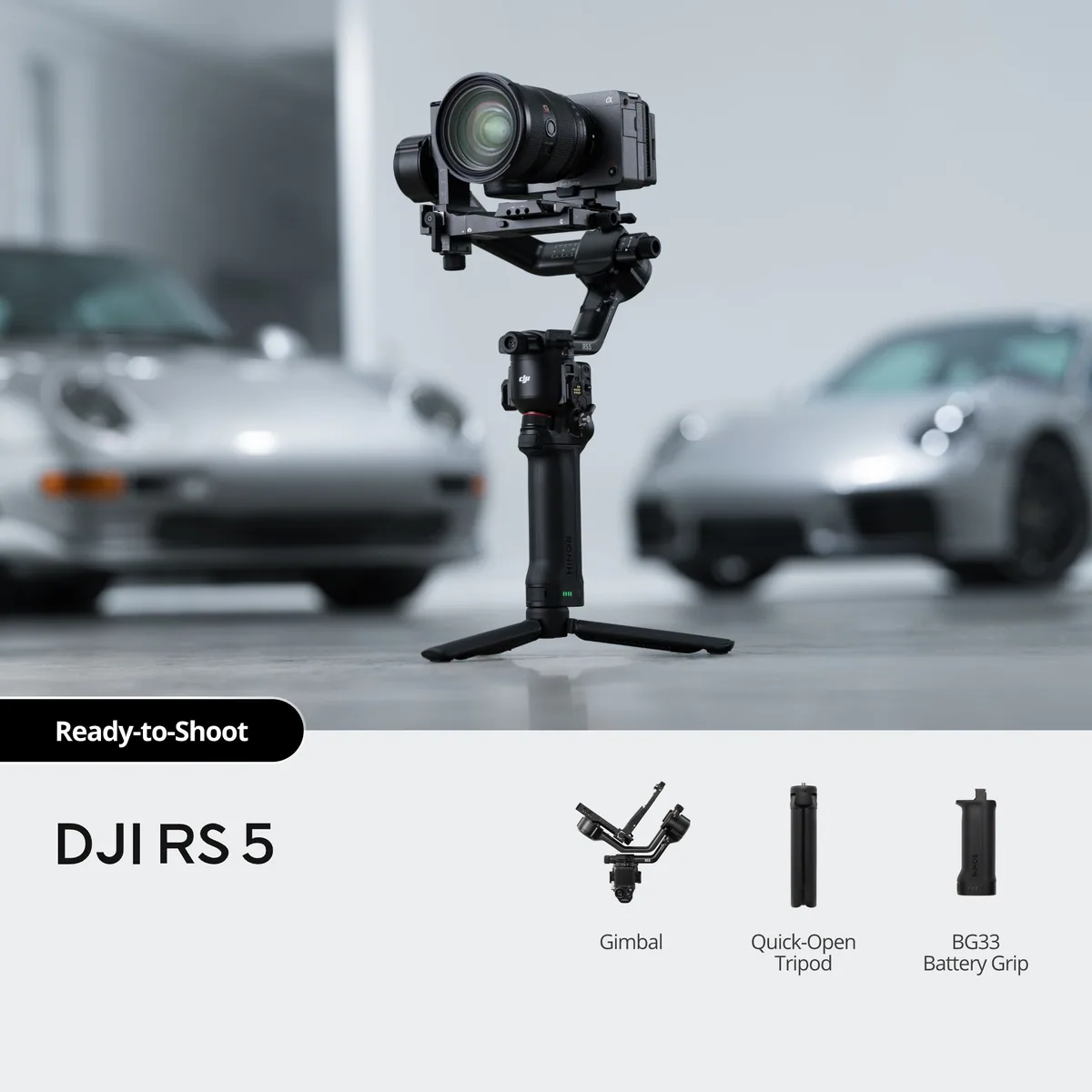

In the box
- DJI RS 5 Gimbal Stabiliser
- Quick-Open Tripod
- Lens Support
- Screw Kit
- DJI Upper Quick Release Plate for RS 5/4 Pro/4
- DJI Lower Quick Release Plate for RS 5
- DJI RS BG33 Battery Grip
- USB-C Multicamera Control Cable (11.8")
- DJI Logo Sticker
