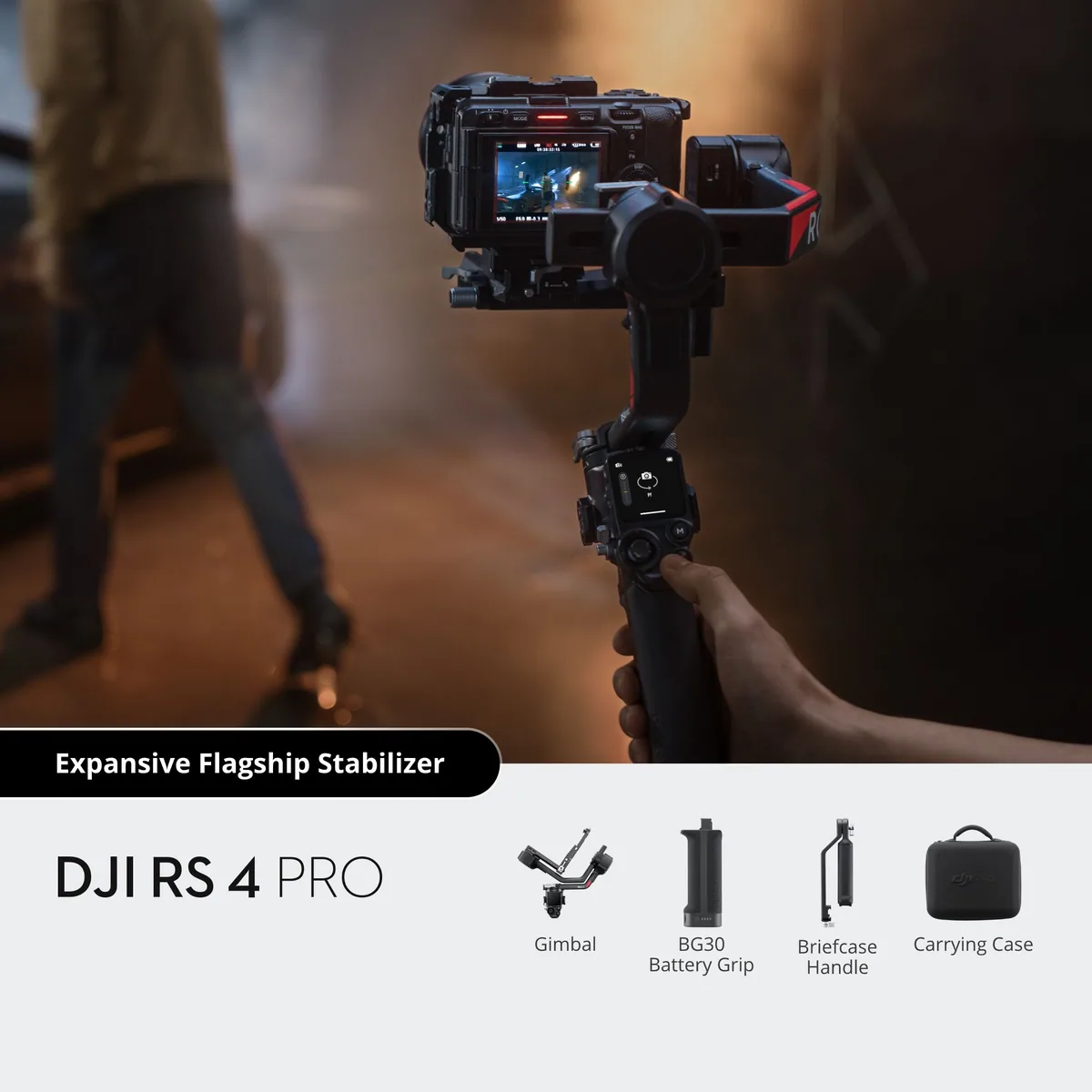

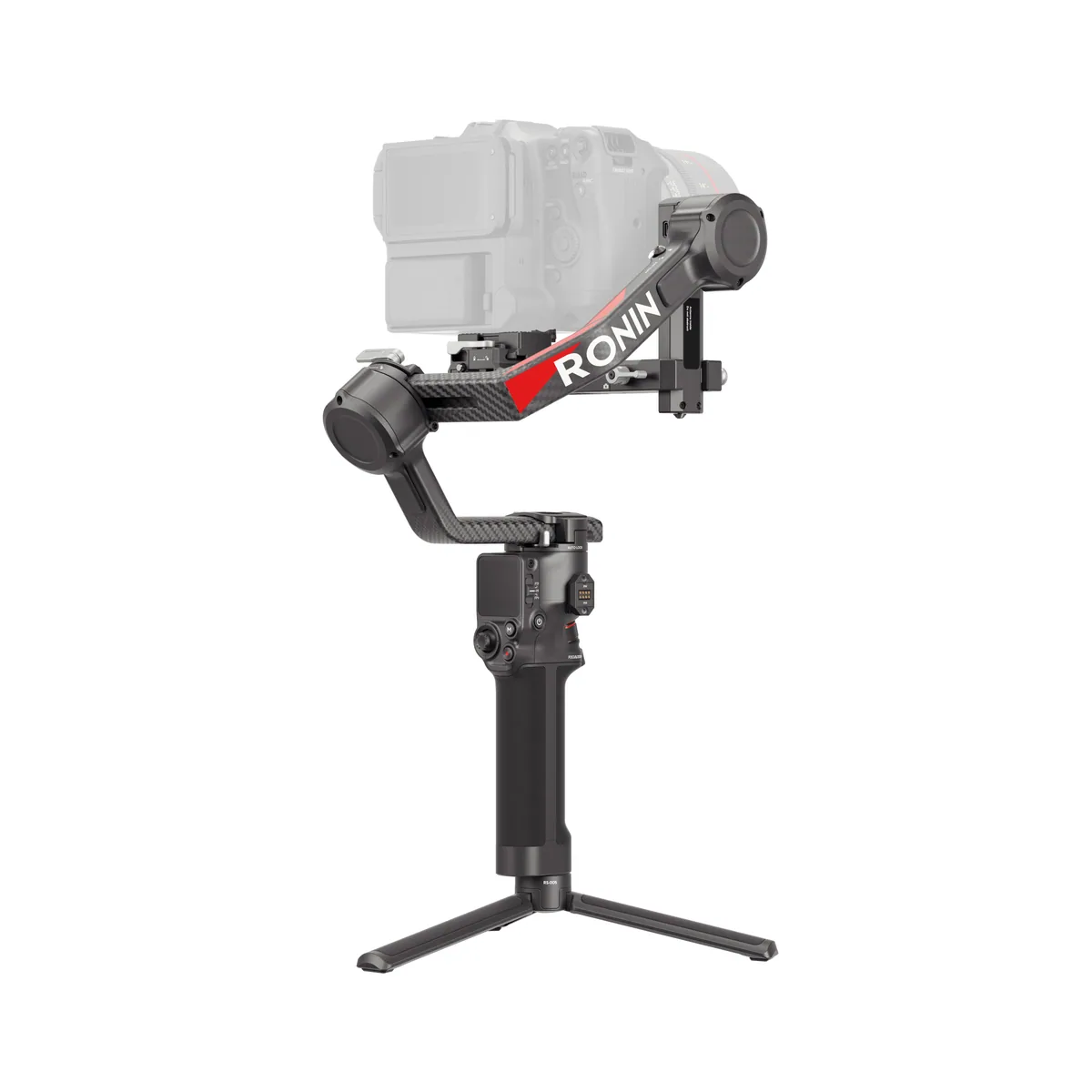

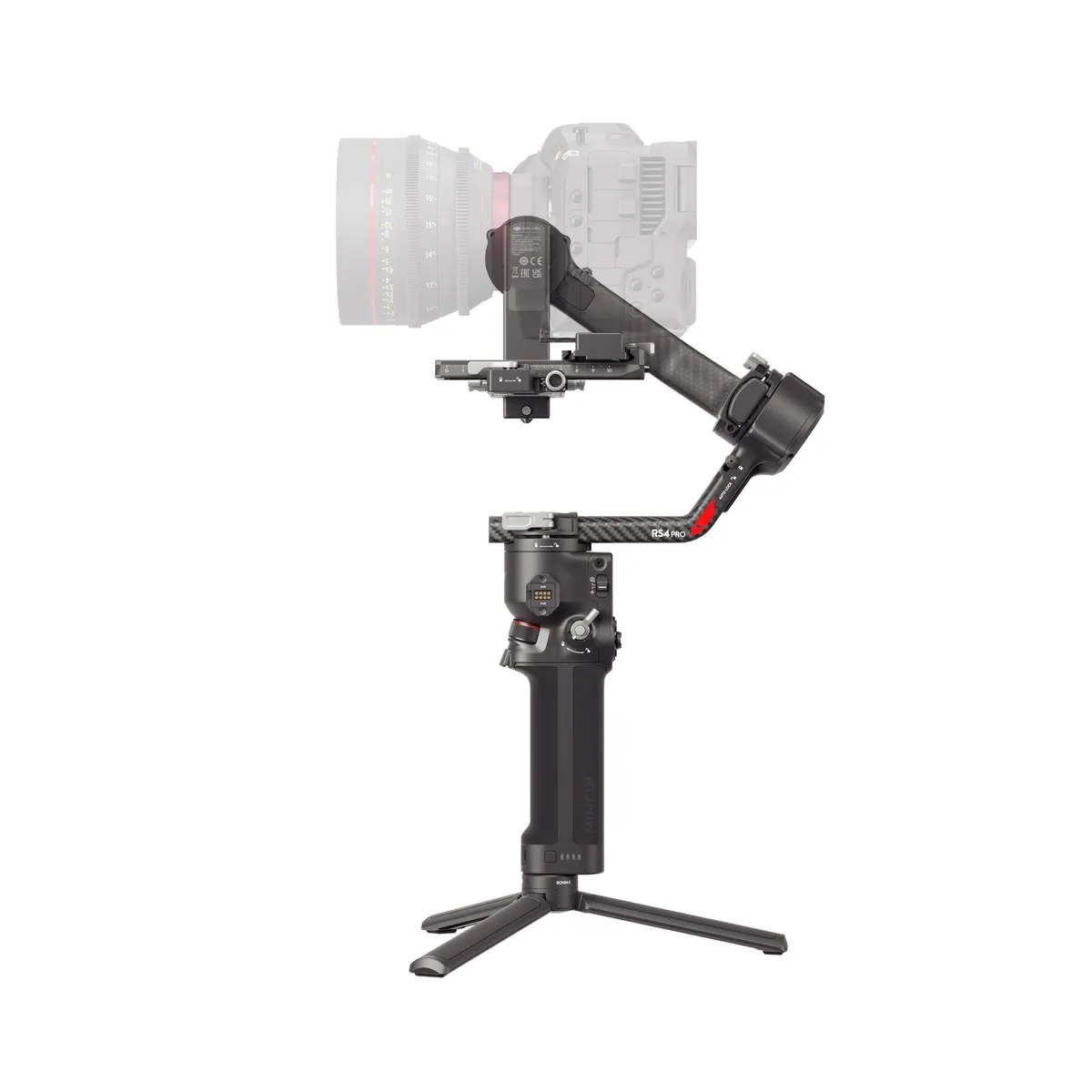

DJI RS 4 Pro Gimbal Stabiliser
- SKU
- 190021099784
- Barcode
- 190021099784
- 2nd-gen native vertical shooting
- Teflon-coated axis arms
- 4.5kg payload
- Extended Tilt Axis
Overview
DJI RS 4 Pro Gimbal Stabiliser by DJI, model 190021099784. Listed under Gimbal Stabilisers in our Video range.
Weight: Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs).
Key features
- 2nd-gen native vertical shooting
- Teflon-coated axis arms
- 4.5kg payload
- Extended Tilt Axis
- High-capacity battery grip
Specifications
Peripheral
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission/LiDAR Range Finder Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
|---|---|
| Battery | Model: BG30-1950mAh-15.4V Type: LiPo 4S Capacity: 1950 mAh Energy: 30 Wh Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
Working Performance
| Tested Payload | 4.5 kg (10 lbs) |
|---|---|
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
Mechanical & Electrical Properties
| Operating Frequency | 2.400-2.4835 GHz |
|---|---|
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs) |
| Extended Grip/Tripod (Metal) | Approx. 226 g (0.49 lbs) |
| Upper and Lower Quick-Release Plates | Approx. 110 g (0.24 lbs) |
| Dimensions | Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
DJI Ronin Image Transmitter
| Expansion Port | Cold Shoe |
|---|---|
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference. |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
In the box
- DJI RS 4 Pro Gimbal Stabiliser
- BG30 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Metal)
- Briefcase Handle
- Lens-Fastening Support (Extended)
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- DJI Logo Sticker
- Screw Kit
- Carrying Case
