Blackmagic

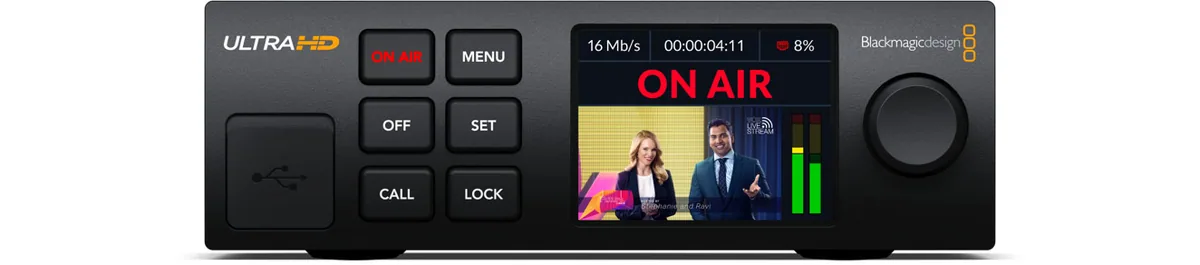

Blackmagic Design Streaming Encoder 4K
- SKU
- BDLKWEB/D/SED4K
- Model
- Streaming Encoder 4K0
- Barcode
- 9338716010046
- H.264 & H.265 Streaming to SRT or RTMP
- 12G-SDI Input & Loop Output
- DCI 4K Streaming up to 60 fps
- Ethernet 10/100/1000BASE-T Support
Overview
Blackmagic Design Streaming Encoder 4K by Blackmagic, model Streaming Encoder 4K0. Listed under Streaming Media Solutions in our Streaming & Podcasting range.
Weight: 1.66 lb / 753 g.
Key features
- H.264 & H.265 Streaming to SRT or RTMP
- 12G-SDI Input & Loop Output
- DCI 4K Streaming up to 60 fps
- Ethernet 10/100/1000BASE-T Support
- SDI & HDMI Monitor Outputs
- Integrated 2.2″ LCD Screen
Specifications
IP Encoding/Decoding
| IP Video | H.264/H.265: 4096 x 2160 Encoding |
|---|---|
| Transport Protocols | RTMP, SRT |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
Wireless
| Wireless | No |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cellular Support | 5G NR / 4G LTE via Unspecified SIM Type |
Interfaces
| Video I/O | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output 1x HDMI Monitor Output |
|---|---|
| Other I/O | 1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output |
| Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output |
Power
| Power I/O | 1x IEC C14 Input 1x XLR 4-Pin Input |
|---|---|
| Power Consumption | (25 W) |
General
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
|---|---|
| Storage Conditions | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display | LCD |
| Rackmount Size | 1 U |
| Dimensions | 6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm |
| Weight | 1.66 lb / 753 g |
In the box
- Blackmagic Design Streaming Encoder 4K
- Welcome Wallet with QR Code for Software Download
