Blackmagic

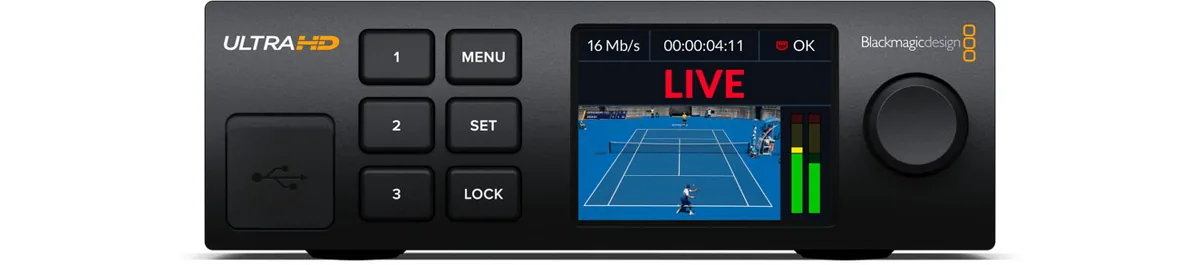

Blackmagic Design Streaming Decoder 4K
- SKU
- BDLKWEB/J/DES4K
- Barcode
- 9338716010053
- Decodes H.264 & H.265 to SDI & HDMI
- Camera Control, Talkback & Tally Support
- USB-C Ports for Phone Tethering
- Tethers to 4G & 5G Phones for Streaming
Overview
Blackmagic Design Streaming Decoder 4K by Blackmagic, model BDLKWEB/J/DES4K. Listed under Streaming Media Solutions in our Streaming & Podcasting range.
Weight: 1.66 lb / 753 g.
Key features
- Decodes H.264 & H.265 to SDI & HDMI
- Camera Control, Talkback & Tally Support
- USB-C Ports for Phone Tethering
- Tethers to 4G & 5G Phones for Streaming
- Blackmagic Streaming Utility Software
Specifications
IP Encoding/Decoding
| IP Video | H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding |
|---|---|
| Transport Protocols | RTMP, SRT |
Wireless
| Wireless | No |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cellular Support | 5G NR / 4G LTE via Unspecified SIM Type |
| SIM Card Slots | Not Specified by Manufacturer |
Interfaces
| Video I/O | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1x HDMI (HDMI 2.0) Output |
|---|---|
| Other I/O | 1x RJ45 Fast Ethernet Input/Output |
| Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel SDI Output: 2-Channel HDMI Output: 8-Channel LAN (RJ45)/USB |
Power
| Power I/O | 1x IEC C14 Input 1x Mini-XLR 4-Pin (12 VDC) Input |
|---|
General
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
|---|---|
| Storage Conditions | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display | LCD |
| Rackmount Size | 1 U |
| Dimensions | 6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm |
| Weight | 1.66 lb / 753 g |
In the box
- Blackmagic Design Streaming Decoder 4K
Reviews
Only logged in customers who have purchased this product may leave a review.
