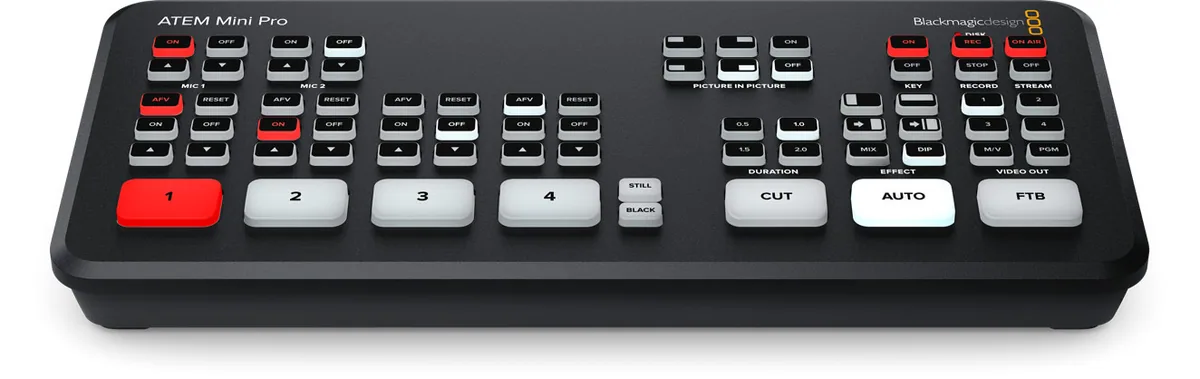

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
Blackmagic

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

SKU
SWATEMMINIBPR
Model
ATEM Mini Pro
Barcode
9338716006797
  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview

Overview

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher by Blackmagic. Listed under Video Switchers in our Video range.

Weight: 19.4 oz / 550 g.

Key features

  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer Per Source

Specifications

Input/Output

Inputs4 x HDMI Type A 2 x 3.5 mm Stereo Analogue Audio 1 x RJ45 Ethernet
Outputs1 x HDMI 1 x USB Type-C

Video & Audio

Video Input FormatsHDMI Video: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 HDMI Resolutions for Computers: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50
Video Output Formats1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs4 x HDMI
Video Output1 x HDMI
Audio Input2 x 3.5 mm Stereo
Other I/O1 x USB Type-C 1 x RJ45, Gigbit Ethernet
Video Sampling4:2:2 YUV
Colour Precision10-Bit
Colour SpaceRec. 709
Colour Space ConversionHardware-Based, Real Time
Embedded Audio2-Channel Input and Output
Audio Mixer6-Input, 2-Channel
Media Player1 x Player with Fill and Key
Still Image Capacity20
Image Format SupportPNG, TGA, BMP, GIF, JPEG, TIFF

General

Keyers1 x Upstream 1 x Downstream 1 x Advanced Chroma 2 x Linear/Luma 1 x Transition (DVE Only)
LayersUp to 5
Generators1 x Pattern 2 x Colour
DVETransition Keyer
Monitor Resolution1366 x 768 or Greater
Operating System SupportmacOS 10.13, 10.14, or Later Windows 10
Power Input1 x Barrel- 5.5 x 2.5 mm
Voltage12 V
Power Draw18 W
Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature14 to 140°F / -10 to 60°
Relative Humidity0 to 90% Non-Condensing
Dimensions9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight19.4 oz / 550 g

In the box

  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Control Panel Software
  • Limited 1-Year Warranty
