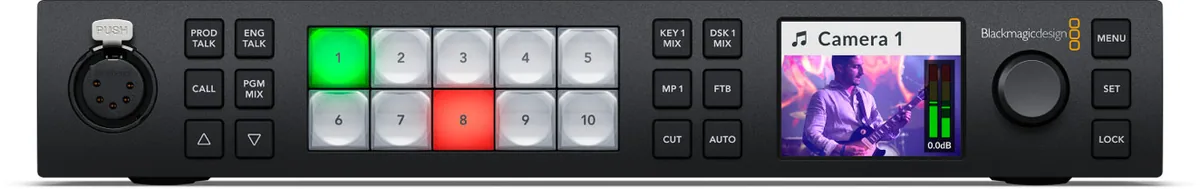

Blackmagic ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)
Blackmagic

Blackmagic ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)

SKU
SWATEMSCN2/2ME1/4K
Model
Atem Constellation 4K 1 M/E
Barcode
9338716008692
  • Supports 12G/3G/HD-SDI at 10-Bit
  • 10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
  • Up to 16-Multiview Monitoring Windows
  • Webcam Output via USB-C

Overview

Blackmagic ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU) by Blackmagic, model Atem Constellation 4K 1 M/E. Listed under Video Switchers in our Video range.

Weight: 4.12 lb / 1.87 kg.

Key features

  • Supports 12G/3G/HD-SDI at 10-Bit
  • 10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
  • Up to 16-Multiview Monitoring Windows
  • Webcam Output via USB-C
  • Frame Rate/Format Convertor per Input
  • 28-Channel Audio Mixer

Specifications

Available M/E Layers1 M/E
Effect Types4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE
Downstream Keys1x Chroma, Luma, DVE
Generators2x Colour 5x Pattern
Audio Mixing48-Channel Mixing

Processing

Switching TypePushbutton, Software
Latency10 Lines
Processing ResolutionUHD 4K
Colour Processing10-Bit 4:2:2

Input

Number of Video Input Sources10
Video Inputs10x BNC (12G-SDI) Female
Input Video FormatSDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs2x 1/4" TRS
Embedded Audio InputSDI: 16-Channel

Output

Video Output Channels6
Video Outputs6x BNC (12G-SDI) Female
Output Video FormatSDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio OutputSDI: 16-Channel
Multiview Output16-Way Multiview

Connectivity

Other I/O1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input
Video Standard ComplianceSMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10

Display

Display Size2.2"

Hardware

OS CompatibilityWindows 10 to 11 macOS 13.0 to 14.0
ProcessorNot Specified by Manufacturer
Wi-FiYes
BluetoothNo
Power I/O1x IEC C13 Input
Power ConsumptionDevice: 100 to 240 VAC (90 W)

Environmental

Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90%

General

Rack Form Factor1 RU
Dimensions11 x 8.91 x 1.74" / 27.9 x 22.63 x 4.42 cm
Weight4.12 lb / 1.87 kg

In the box

  • Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)
