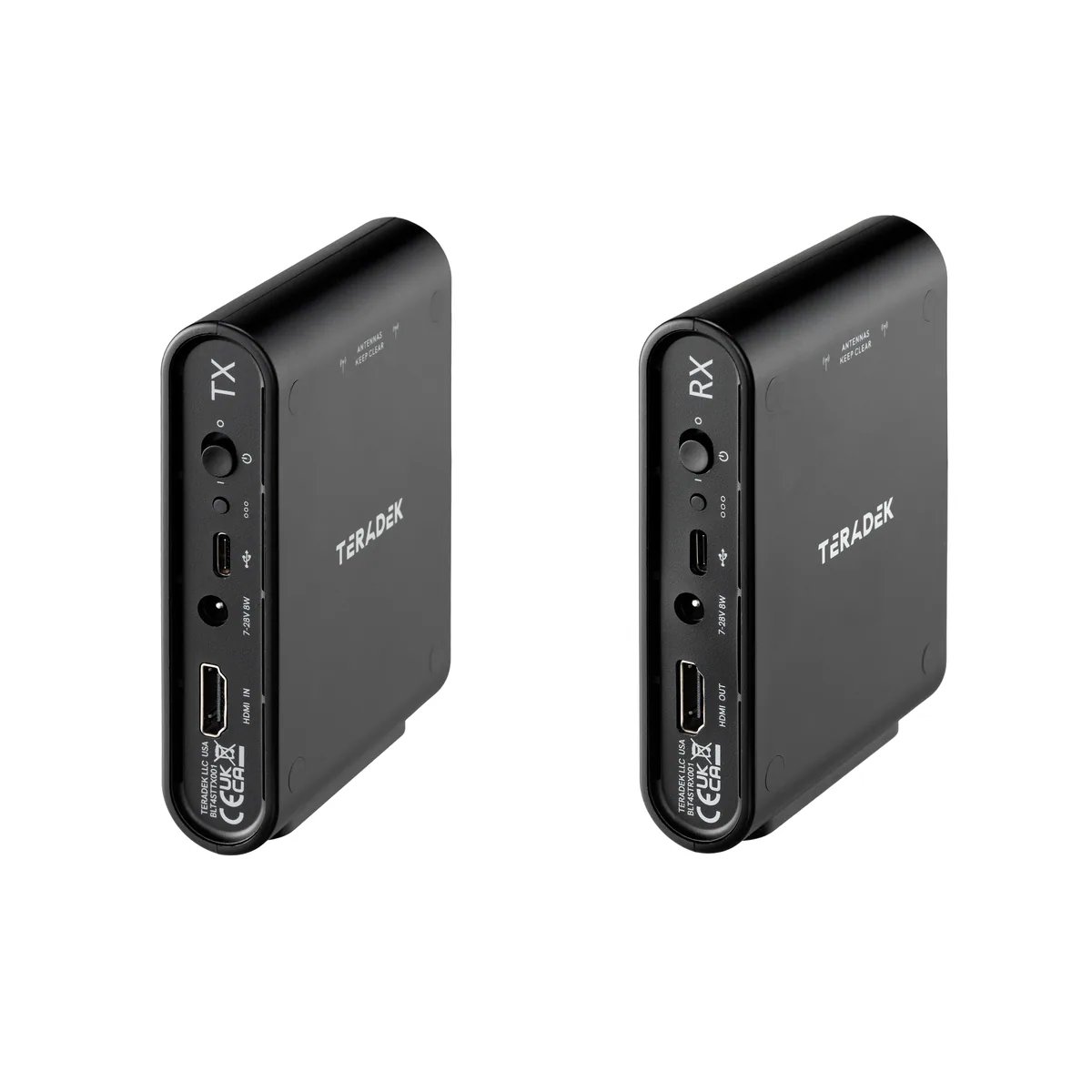

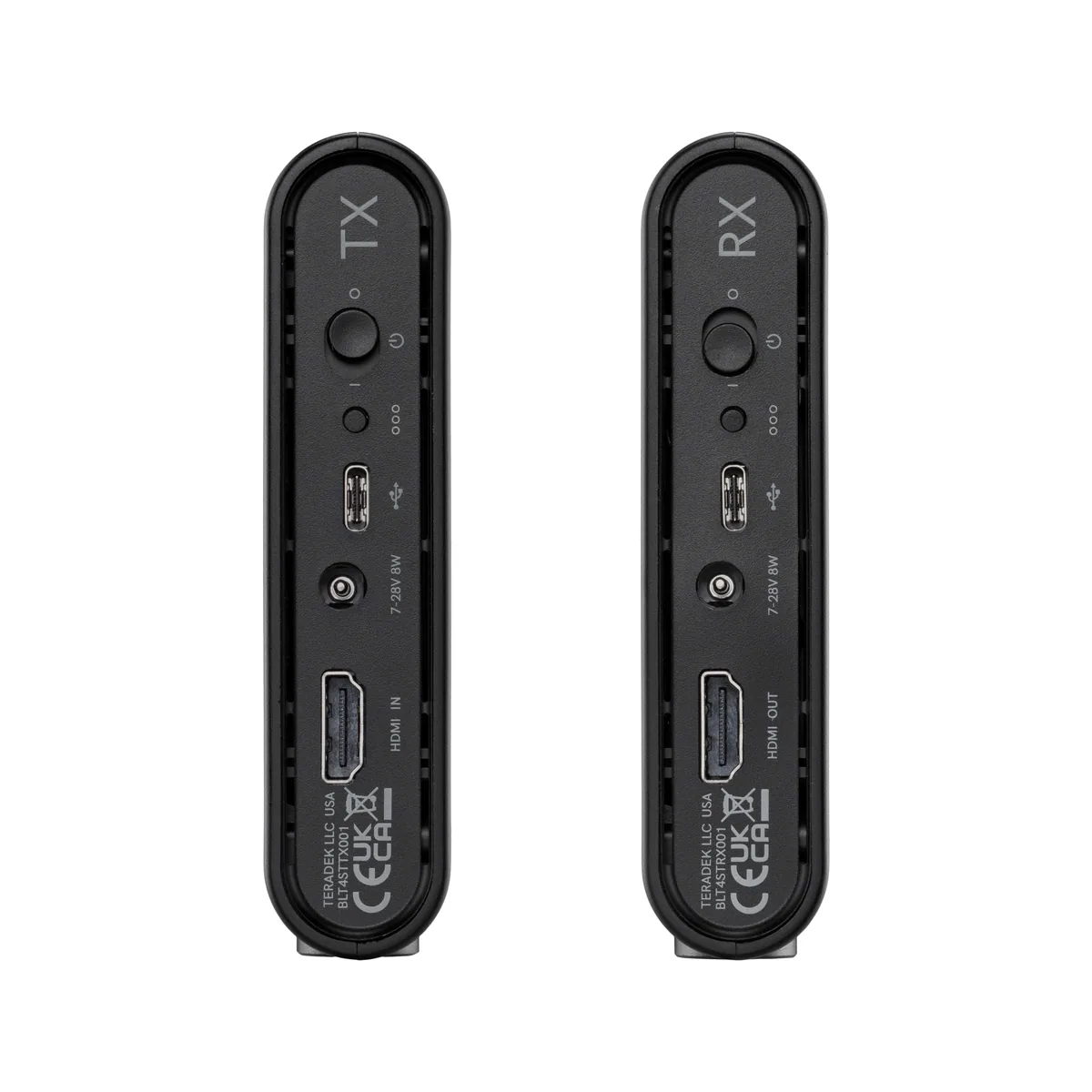

Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
Teradek

Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set

SKU
53.10-2240
Barcode
810156140280
  • Includes Transmitter and Receiver Units
  • Transmit/Receive up to 4K30 HDR Video
  • Compatible with Bolt 4K and Bolt 6 Units
  • Transmission up to 750' Line of Sight

Overview

Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set by Teradek, model 53.10-2240. Listed under Wireless Video Systems in our Video range.

Weight: 6.6 oz / 187 g.

Key features

  • Includes Transmitter and Receiver Units
  • Transmit/Receive up to 4K30 HDR Video
  • Compatible with Bolt 4K and Bolt 6 Units
  • Transmission up to 750′ Line of Sight
  • HDMI Input/Output, Built-In Antennas
  • Transmit to up to 6 Receivers/Devices

Warranty: 1 year manufacturer warranty.

Specifications

Key Specs

Video I/O1x HDMI 1.4b Input
Embedded AudioHDMI: 2-Channel
Latency< 0.01 ms
Video FormatHDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94
Power Consumption6 W
Mounting1x 1/4"-20 Female

Inputs / Outputs

Antenna I/ONo
Audio I/ONo
Power I/O1x Barrel Input
Other I/O1x USB-C (Firmware) Input
Encryption256-Bit AES

Wireless

Wireless Range750' / 228.6 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
RF Power19 dBm
Wi-FiNo
BluetoothYes
Mobile App CompatibleYes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup
Cellular SupportNo

Format Support

Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes

Power

Input Power7 to 18 VDC

Environmental

Environmental ProtectionNo
CertificationsNo
Operating Temperature32 to 104°F / 0 to 40°C

General

MaterialPlastic
Dimensions4.4 x 3.2 x 1" / 112 x 81 x 25 mm
Weight6.6 oz / 187 g

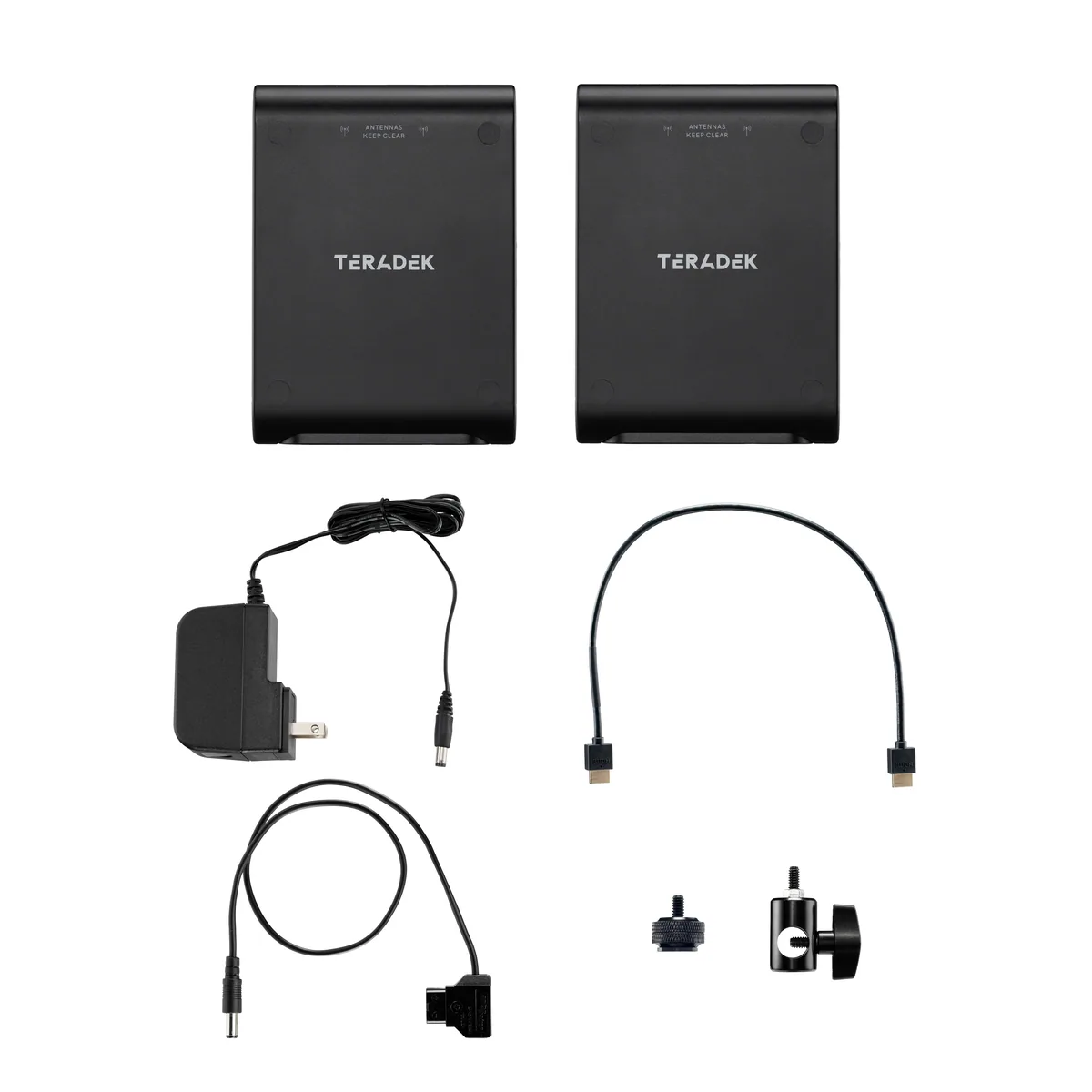

In the box

  • Teradek Ace 750 Wireless Video Transmitter
  • Teradek Ace 750 HDMI Wireless Video Receiver
