Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)
Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)
Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)
Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)
Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)
Sennheiser

Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz)

SKU
509147
Model
XSW IEM SET
Barcode
615104356214
  • B Band (572 - 596 MHz)
  • Live Stage, Rehearsal, House of Worship
  • XSW IEM SR Stereo Transmitter
  • XSW IEM EK Stereo Receiver

Overview

Sennheiser XSW IEM SET Stereo In-Ear Wireless Monitoring System (B: 572 – 596 MHz) by Sennheiser. Listed under Wireless In-Ear Monitors in our Music & Audio range.

Weight: Approximately 700 g.

Key features

  • B Band (572 – 596 MHz)
  • Live Stage, Rehearsal, House of Worship
  • XSW IEM SR Stereo Transmitter
  • XSW IEM EK Stereo Receiver
  • IE 4 Stereo Earphones
  • 960 Frequencies, 8 Banks

Warranty: 2 year manufacturer warranty.

Specifications

Transmitter

Frequency BandB: 572 - 596 MHz
Wireless TechnologyAnalog, UHF
ModulationFM Stereo
Transmitting RF Power30 mW
Number of RF Channels960
Switching Bandwidth24 MHz
Frequency Step Size25 kHz
Frequency Banks8 Banks with 12 Aligned and Precalculated Frequencies Each
Frequency ScanningManual
Max Transmitters per Band12
Max Operating Range100 m (Line of Sight)
Nominal/Peak Deviation±15 kHz / ±24 kHz
Antenna OutputBNC Socket, 50 Ohms
Frequency Response45 Hz to 15 kHz
InputsL + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced
Output1/4" / 6.3 mm TRS, Headphones Out
Total Harmonic Distortion (THD)<0.9%
Signal-to-Noise Ratio≥88 dB, at Nominal Load and Peak Deviation
Power Input Rating+12 VDC
Current ConsumptionApproximately 400 mA
HousingMetal
Temperature Range0 to 40°C
DimensionsApproximately 200 x 128 x 42 mm
WeightApproximately 700 g

Receiver

Sync MethodIR
Squelch10 µV, Fixed
Output Level2 x 1.25 Veff at 16 Ohms
EqualizationHigh Boost EQ: +10 dB at 13 kHz
Limiter-10 dB
CrosstalkTypically 45 dB (50 Hz to 10 kHz)
Power Supply2 x AA Batteries, 1.5 V
Nominal Voltage3 V
Operating TimeApproximately 6 Hours, Depending on Volume Level

Earphones

TransducerDynamic
SPL106 dB, (1 kHz, 1 mW)
Nominal Impedance6 Ohms
Cable Length1.4 m
Connector1/8" / 3.5 mm TRS, Stereo, Gold-Plated

In the box

  • XSW IEM SR Transmitter

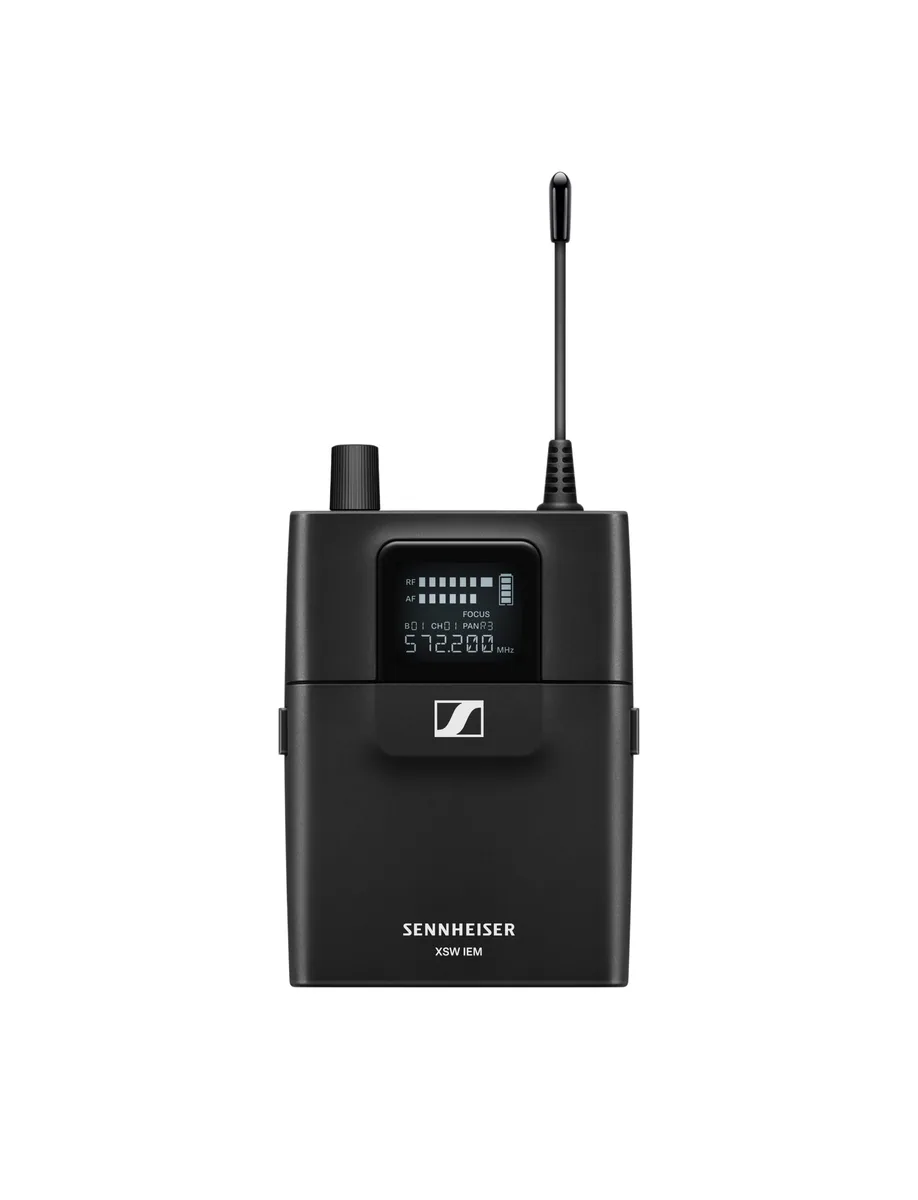

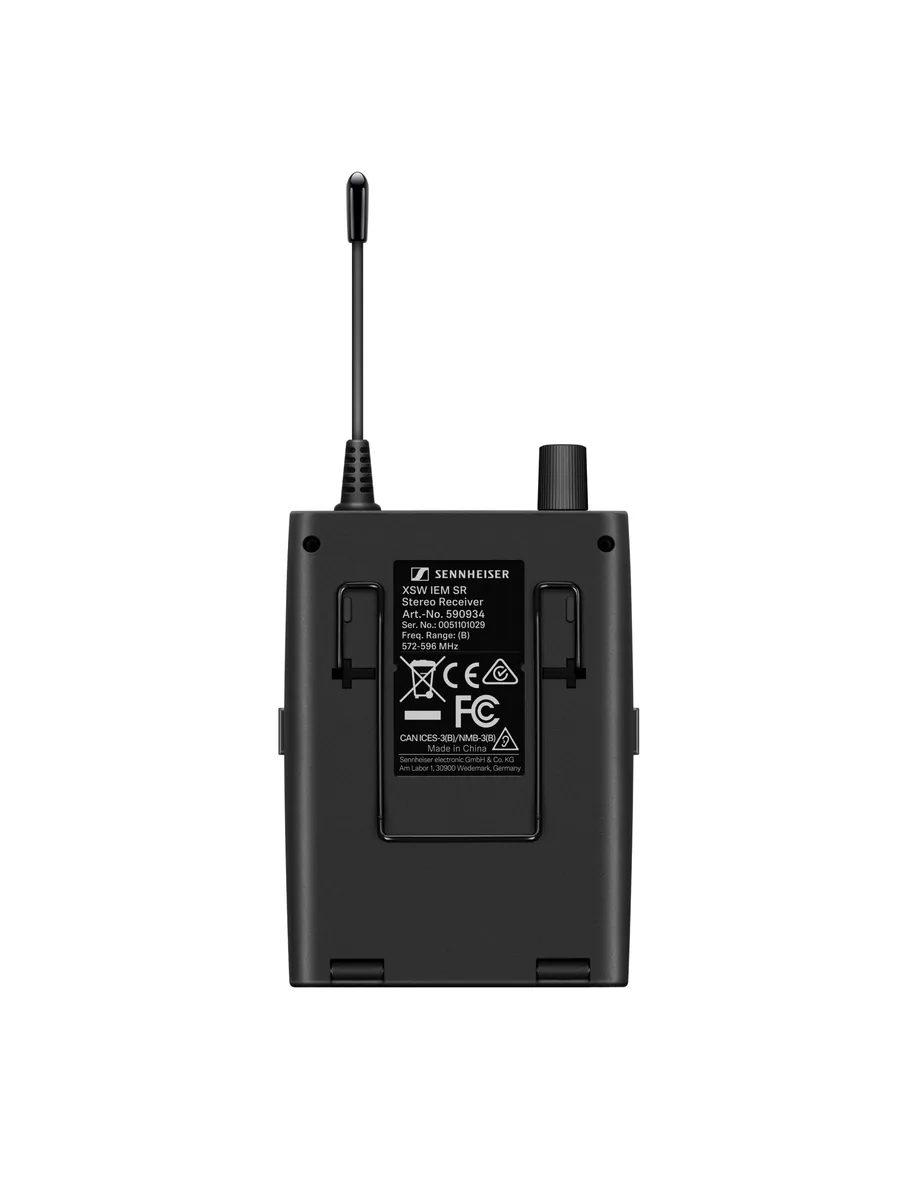

  • XSW IEM EK Receiver
  • IE 4 In-Ear Headphones

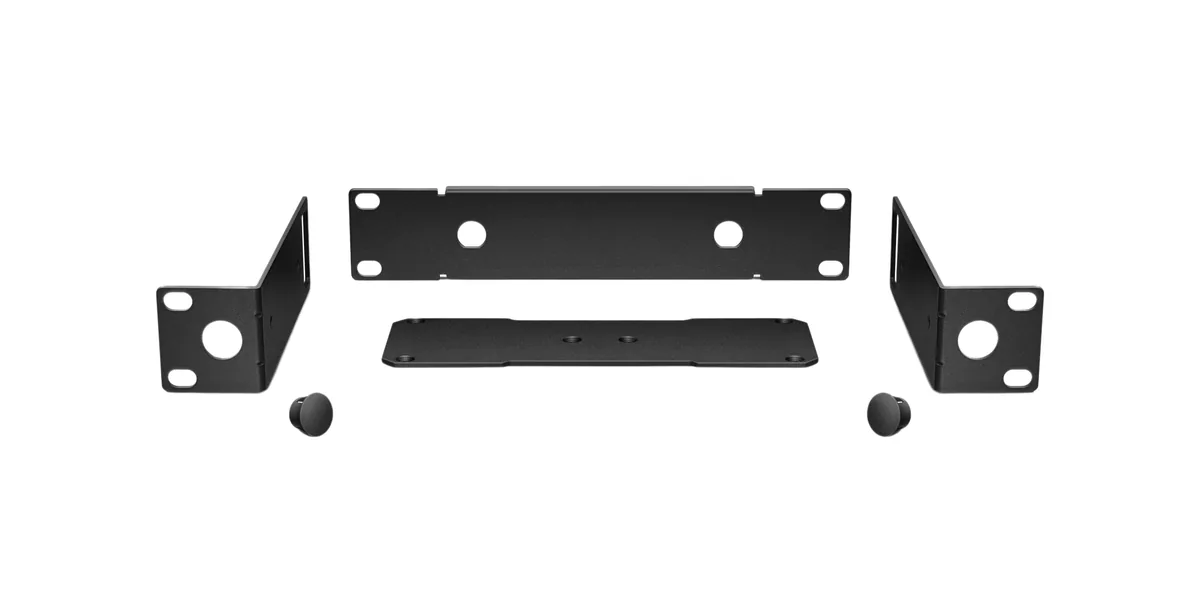

  • XSW Rack Mount Kit

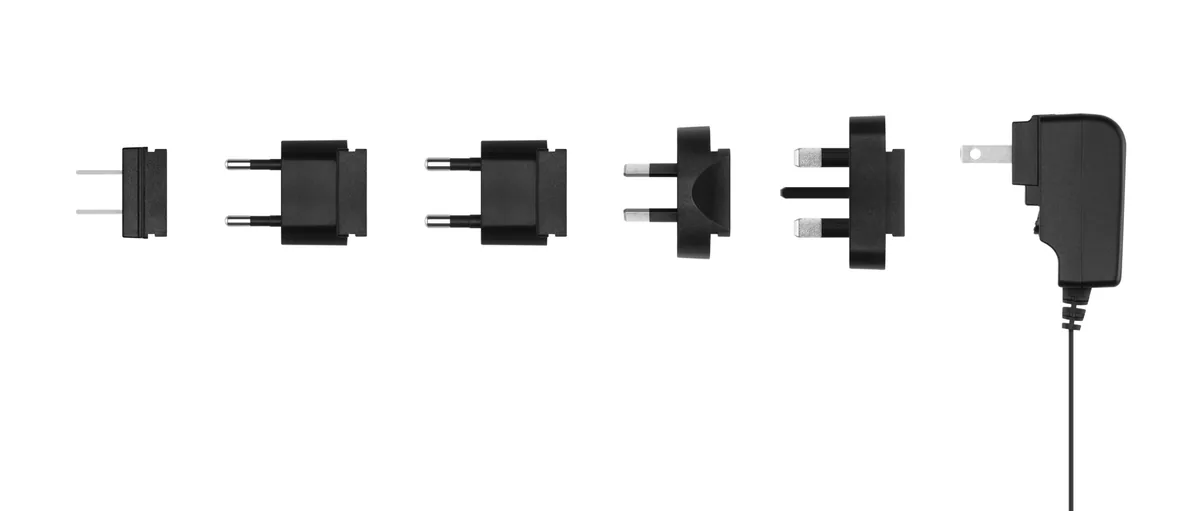

  • NT 12-5 CW Power Supply
  • 2 x AA Batteries
