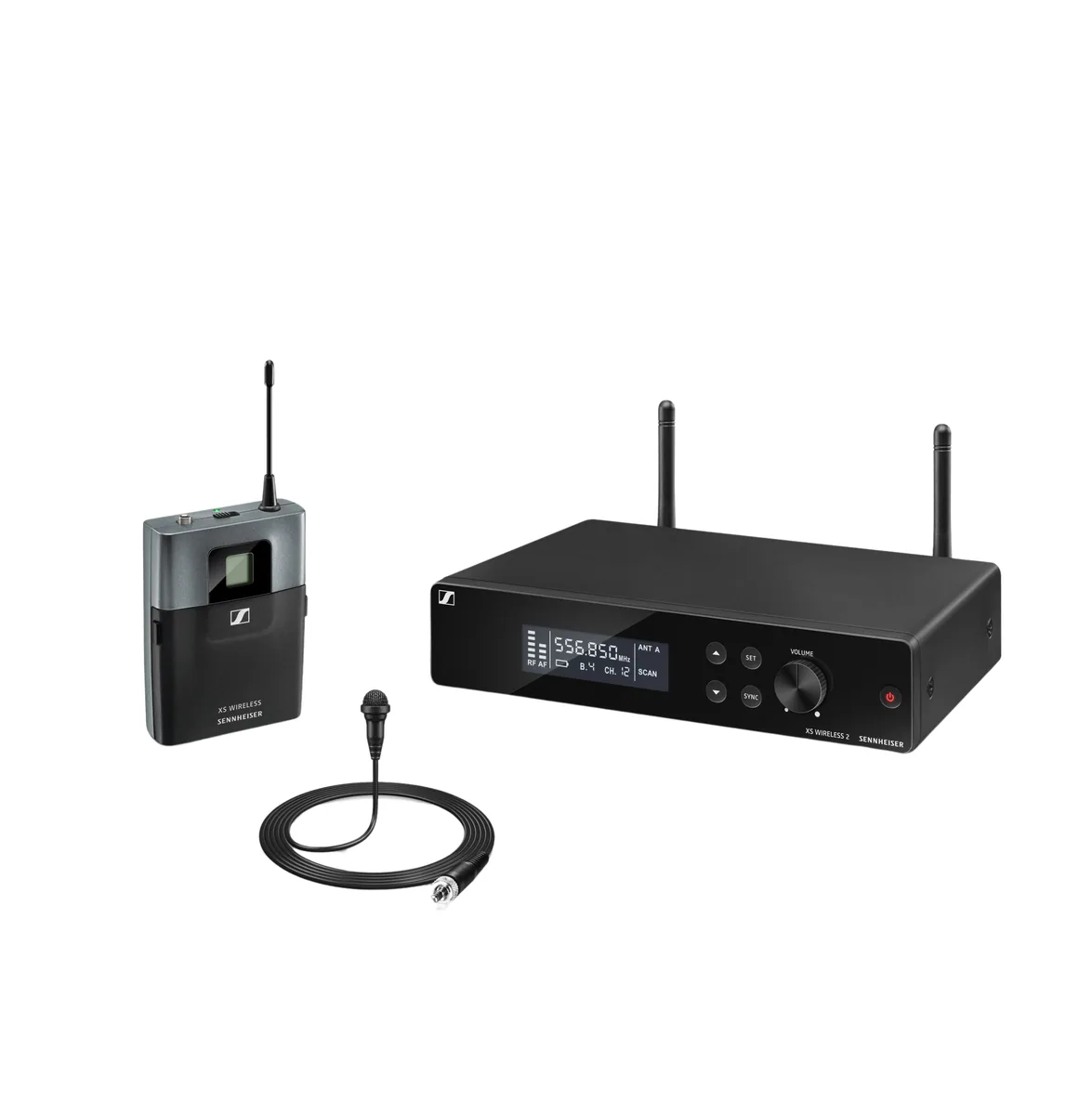

Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)
Sennheiser

Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz)

SKU
507457
Model
XSW 2-ME2
Barcode
615104303560
  • BC Band (670 - 694 MHz)
  • For Presenter and Moderator Applications
  • ME 2-2 Lavalier Microphone
  • True Diversity Receiver

Overview

Sennheiser XSW 2-ME2 Wireless 2 Lavalier Microphone System (BC: 670 – 694 MHz) by Sennheiser. Listed under Wireless Systems in our Music & Audio range.

Weight: 680 g.

Key features

  • BC Band (670 – 694 MHz)
  • For Presenter and Moderator Applications
  • ME 2-2 Lavalier Microphone
  • True Diversity Receiver
  • Up to 12 Compatible Channels
  • External Antennas

Warranty: 2 year manufacturer warranty.

Specifications

System

ModulationWideband FM
Frequency RangeBC: 670 - 694 MHz
Switching BandwidthUp to 24 MHz
FrequenciesAdjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels
Signal to Noise Ratio≥ 103 dBA
Total Harmonic Distortion (THD)≤ 0.9%
Temperature RangeOperation: 0 to +40°C Storage: -20 to +70°C
Transmitter Synchronisation2.4 GHz, low power OQPSK (only active during synchronisation)

Receiver

Principle of OperationDouble superheterodyne
Diversity MethodTrue diversity
Sensitivity< 3 µV at 52 dBA rms S/N at (peak deviation)
Frequency Response50 Hz to 16 kHz (-3 dB)

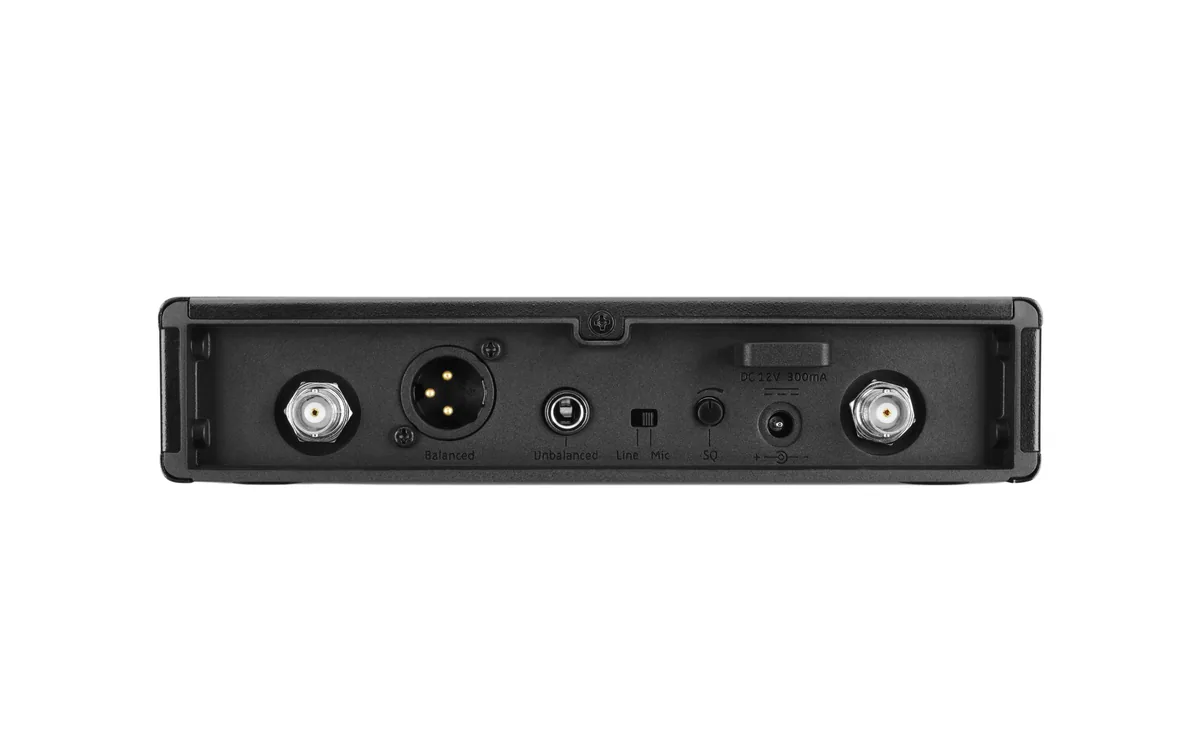

Maximum AF Output VoltageAt peak deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu At peak deviation, 1 kHz AF
Adjustment RangeAudio: 40 dB, adjustable in 5-dB steps
Power SupplyNominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA
SquelchAdjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone)
Line/Mic Level20 dB, switchable
Housing MaterialRugged metal housing
Dimensions (W x H x D)200 x 42 x 127 mm
Weight680 g

Transmitter

RF Output Power10 mW
AF Frequency Response50 Hz to 16 kHz (Line) 80 Hz to 16 kHz (Mic)
Audio Input1/8" (3.5 mm) jack socket
Input VoltageMaximum at 3% THD: Mic: Typ. 1.5 V rms Line: Typ. 2.6 V rms @ -30 dB gain
Operating TimeApproximately 10 hours
Sensitivity AdjustmentRange: 0 to -30 dB, adjustable in 10-dB steps

Microphone

Transducer PrincipleCondenser, pre-polarised
Pickup PatternOmnidirectional
Maximum SPL130 dB
DimensionsNot specified by manufacturer

In the box

  • Sennheiser XSW 2-ME2-A Wireless 2 Lavalier Microphone System (BC: 670 - 694 MHz)

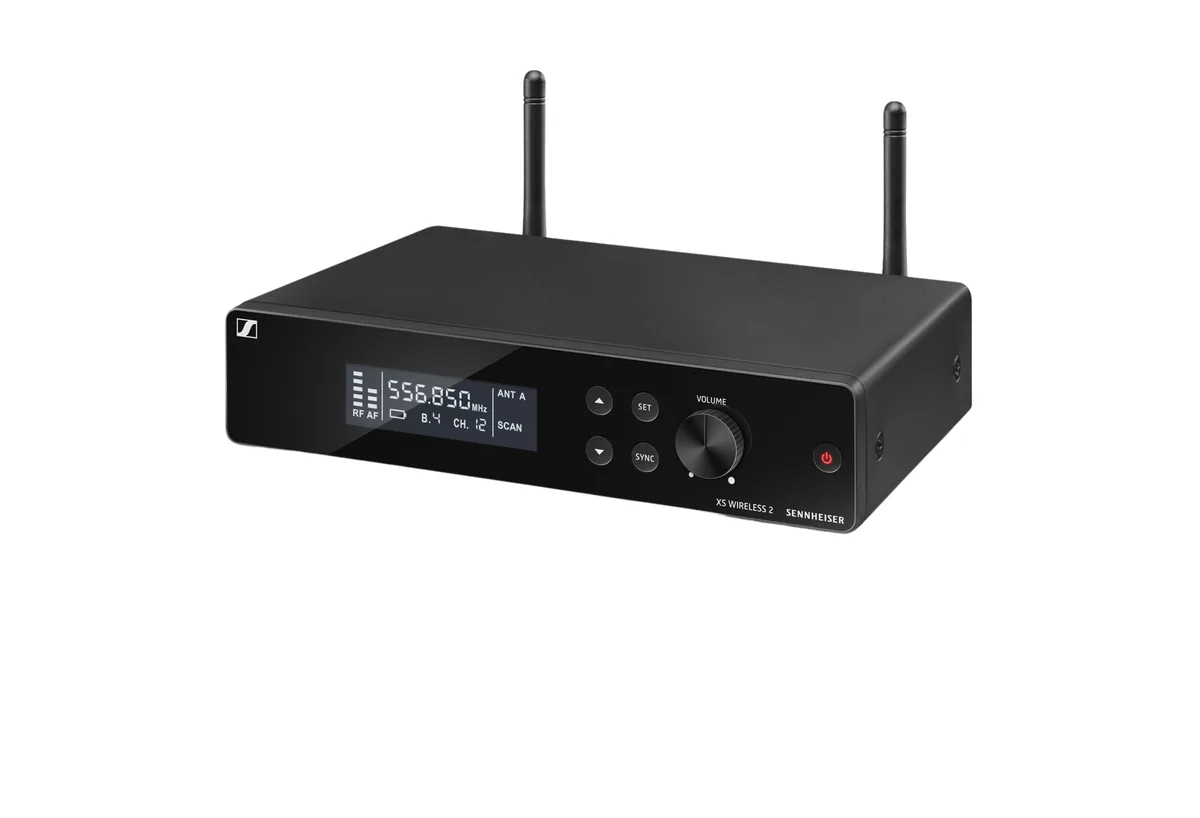

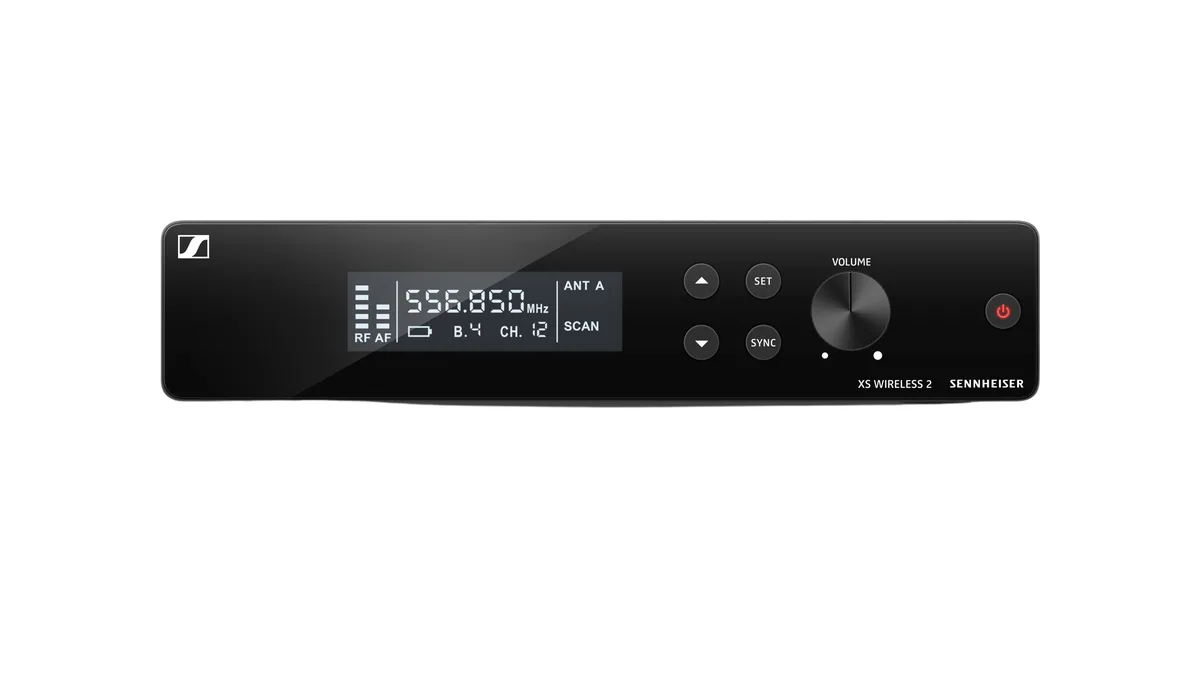

  • EM-XSW 2 Receiver

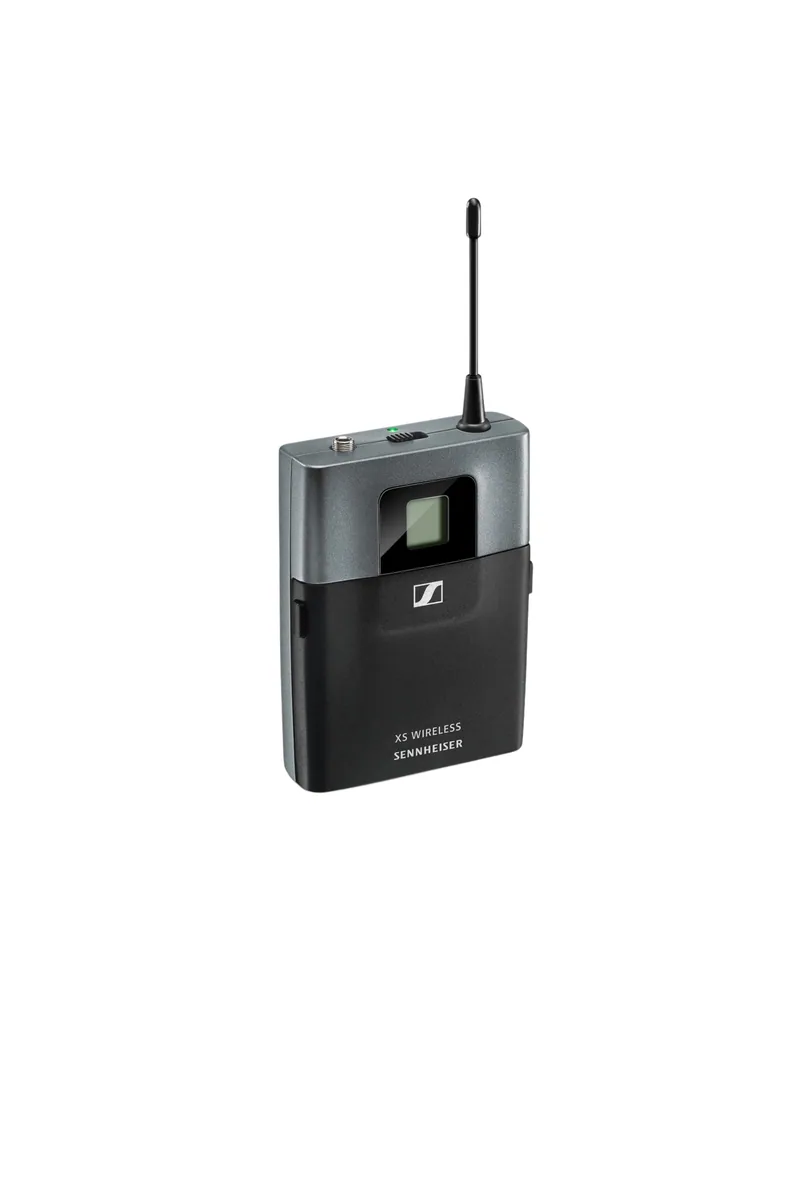

  • SK-XSW Bodypack Transmitter
  • ME 2-II Omnidirectional Lavalier Microphone (Black)
  • 2 x AA Batteries
  • NT 12-5 CW Power Supply
  • Rackmount Kit
  • Protective Pouch
  • Limited 2-Year Warranty
