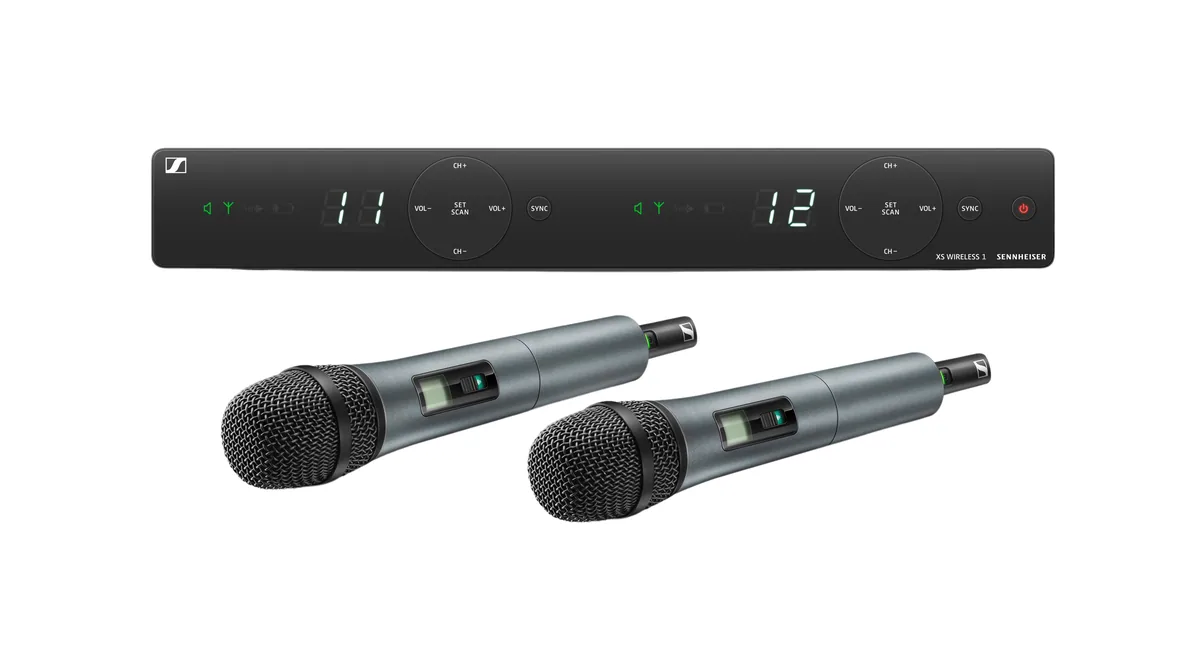

Sennheiser XSW 1-835 DUAL-BC Dual-Vocal Set with Two 835 Handheld Microphones (BC: 670 – 694 MHz)
Sennheiser

Sennheiser XSW 1-835 DUAL-BC Dual-Vocal Set with Two 835 Handheld Microphones (BC: 670 – 694 MHz)

SKU
508618
Model
XSW 1-835 DUAL
Barcode
615104331396
  • BC Band (670 - 694 MHz)
  • EM-XSW 1 Dual-Channel Receiver
  • 2 x SKM 835-XSW Handheld Transmitters
  • 2 x MZQ 1 Microphone Clips

Overview

Sennheiser XSW 1-835 DUAL-BC Dual-Vocal Set with Two 835 Handheld Microphones (BC: 670 – 694 MHz) by Sennheiser. Listed under Wireless Systems in our Music & Audio range.

Weight: 620 g.

Key features

  • BC Band (670 – 694 MHz)
  • EM-XSW 1 Dual-Channel Receiver
  • 2 x SKM 835-XSW Handheld Transmitters
  • 2 x MZQ 1 Microphone Clips
  • 4 x AA Batteries
  • Includes Power Supply

Warranty: 2 year manufacturer warranty.

Specifications

EM-XSW 1 Dual-Channel Stationary Receiver

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies80
DiversityAntenna Diversity
RF Frequency BandBC: 670 to 694 MHz
RF BandwidthUp to 24 MHz
RF Channel ScanningAuto-Scan
Max Transmitters per Band10
Timecode SupportNo
Control App SupportNo
ModulationWideband FM
Receiver TypeTabletop
Mounting OptionsTabletop
Antenna2 x Internal
Number of Audio Channels2
Audio I/O2 x XLR 3-Pin Male Balanced Mic/Line Output 2 x 1/4" TS Balanced Mic/Line Output
Gain Range45 dB (5 dB Steps)
Audio Output LevelXLR Outputs: +12 dBu (Max, Balanced) 1/4" Outputs: +6 dBu (Unbalanced)
Frequency Response50 Hz to 16 kHz -3 dB
RF PrincipleDouble Superheterodyne
Approximate RF Sensitivity52 dB / 3 µV
SquelchAdjustable, 3 to 28 dBμV
Power RequirementsAC/DC Power Adapter
AC/DC Power Adapter12 VDC at 300 mA (Included)
Display & Indicators2 x LCD
HousingABS
Operating Temperature0 to 40°C
Storage Temperature-20 to 70°C
Dimensions320 x 126.5 x 42 mm
Weight620 g

SKM 835-XSW Handheld Transmitter w/ E835 Capsule

Max Operating Range100' / 30.5 m
Built-In RecorderNo
Transmitter TypeHandheld
RF Output Power10 mW
Included Cable ConnectorNone
PadNone
MutingMute Switch
Auto-Level ControlNo
Signal ProcessingNone
Sync Method 2.4 GHz QPSK
Battery Type2 x AA (Included)
Approx. Battery Life10 Hours
USB/Lightning ConnectivityNone
Microphone TypeHandheld Capsule
ColourBlack
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Length10.2" / 260 mm
Diameter2.0" / 50 mm

In the box

  • Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas
  • 2 x Sennheiser SKM 835-XSW Handheld Transmitter with e835 Capsule
  • 2 x Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
  • 4 x AA Batteries
