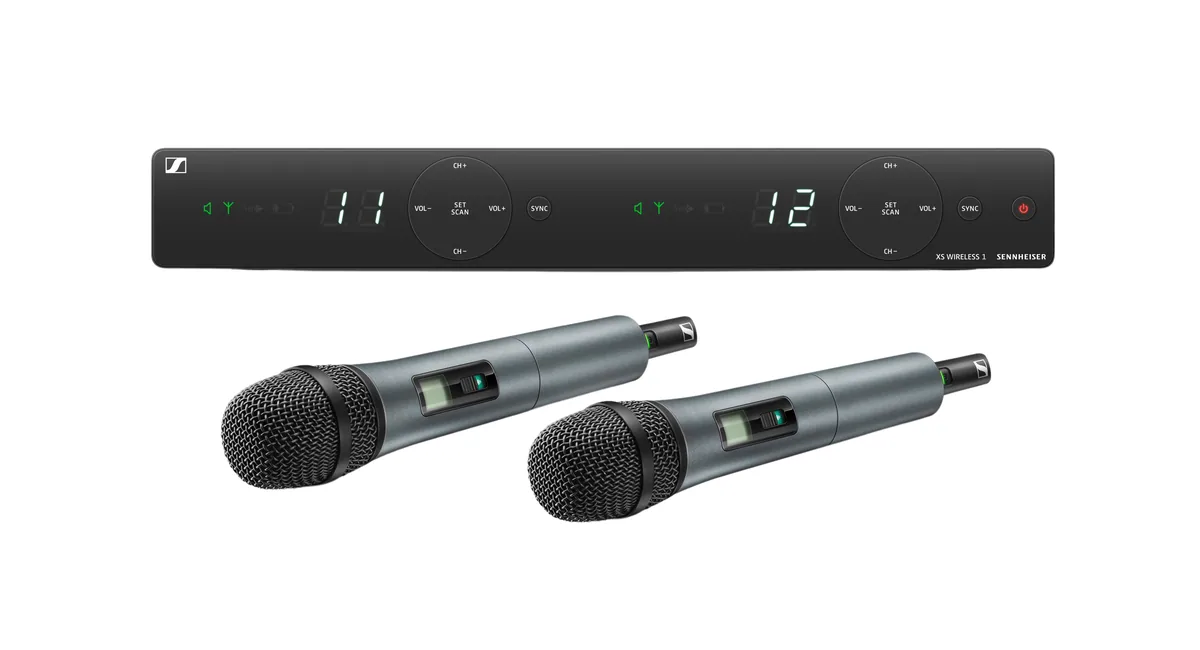

Sennheiser XSW 1-825 Dual-Vocal Set with Two 825 Handheld Microphones (A: 548 – 572 MHz)
Sennheiser

Sennheiser XSW 1-825 Dual-Vocal Set with Two 825 Handheld Microphones (A: 548 – 572 MHz)

SKU
508263
Model
XSW 1-825 DUAL
Barcode
615104315471
  • A Band (548 - 572 MHz)
  • EM-XSW 1 Dual-Channel Receiver
  • 2 x SKM 825-XSW Handheld Transmitters
  • 2 x MZQ 1 Microphone Clips

Overview

Sennheiser XSW 1-825 Dual-Vocal Set with Two 825 Handheld Microphones (A: 548 – 572 MHz) by Sennheiser. Listed under Wireless Systems in our Music & Audio range.

Weight: 21.9 oz / 620 g.

Key features

  • A Band (548 – 572 MHz)
  • EM-XSW 1 Dual-Channel Receiver
  • 2 x SKM 825-XSW Handheld Transmitters
  • 2 x MZQ 1 Microphone Clips
  • 4 x AA Batteries
  • Includes NT 12-5 CW Power Supply

Warranty: 2 year manufacturer warranty.

Specifications

EM-XSW 1 Dual-Channel Stationary Receiver

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies80
DiversityAntenna Diversity
RF Frequency BandA: 548 - 572 MHz
RF BandwidthUp to 24 MHz
RF Channel ScanningAuto-Scan
Max Transmitters per Band10
Timecode SupportNo
Control App SupportNo
ModulationWideband FM
Receiver TypeTabletop
Mounting OptionsTabletop
Antenna2 x Internal
Number of Audio Channels2
Audio I/O2 x XLR 3-Pin Male Balanced Mic/Line Output
2 x 1/4"TS Balanced Mic/Line Output
Gain Range45 dB (5 dB Steps)
Audio Output LevelXLR Outputs: +12 dBu (Max, Balanced) 1/4" Outputs: +6 dBu (Unbalanced)
Frequency Response50 Hz to 16 kHz -3 dB
RF PrincipleDouble Superheterodyne
Approximate RF Sensitivity52 dB / 3 µV
SquelchAdjustable, 3 to 28 dBμV
Power RequirementsAC/DC Power Adapter
Display & Indicators2 x LCD
HousingABS
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 158°F / -20 to 70°C
Dimensions12.6 x 5 x 1.7" / 320 x 126.5 x 42 mm
Weight21.9 oz / 620 g

SKM 825-XSW Handheld Transmitter With E825 Capsule

Max Operating Range100' / 30.5 m
Built-In RecorderNo
Transmitter TypeHandheld
RF Output Power10 mW
Included Cable ConnectorNone
PadNone
MutingMute Switch
Auto-Level ControlNo
Signal ProcessingNone
Sync Method2.4 GHz QPSK
Battery Type2 x AA (Included)
Approx. Battery Life10 Hours
USB/Lightning ConnectivityNone
Microphone TypeHandheld Capsule
ColourBlack
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Length10.2" / 260 mm
Diameter2.0" / 50 mm

In the box

  • Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 - 572 MHz)
  • 2 x Sennheiser SKM 825-XSW-A Handheld Transmitter with e825 Capsule (A: 548 - 572 MHz)
  • 2 x Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
  • 4 x AA Batteries
