Sennheiser EW-DX 835-S SET Digital Wireless System with Two Handheld Mics & MMD 835 Capsules (S4-10)
Sennheiser

Sennheiser EW-DX 835-S SET Digital Wireless System with Two Handheld Mics & MMD 835 Capsules (S4-10)

SKU
509306
Model
EW-DX 835-S SET (S4-10)
Barcode
615104360846
  • For Two Presenters or Performers
  • 2 Handheld Transmitters, e-Ink Displays
  • 2 MMD 835 Dynamic Cardioid Mic Capsules
  • 2-Channel Diversity Receiver

Overview

Sennheiser EW-DX 835-S SET Digital Wireless System with Two Handheld Mics & MMD 835 Capsules (S4-10) by Sennheiser, model EW-DX 835-S SET (S4-10). Listed under Wireless Systems in our Music & Audio range.

Weight: 2.2 lb / 1 kg (without Antenna).

Key features

  • For Two Presenters or Performers
  • 2 Handheld Transmitters, e-Ink Displays
  • 2 MMD 835 Dynamic Cardioid Mic Capsules
  • 2-Channel Diversity Receiver
  • 134 dB of Dynamic Range
  • AES-256 Encryption, RJ45 Networking

Warranty: 2 year manufacturer warranty.

Specifications

System

Wireless TechnologyDigital UHF
Number of RF Channel Frequencies3200
Included Transmitters2 x Handheld
DiversityIntelligent Switching Diversity
RF Frequency BandS4-10: 630 - 693.8 MHz
RF Channel ScanningAuto-Scan
Max Operating Range328.1' / 100 m (Line of Sight)
Max Transmitters per Band269
Built-In RecorderNo
Control App SupportYes, Available for Android/iOS
Bluetooth5.1 LE
Bluetooth Operating Distance120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution24-Bit
Latency1.9 ms
Dynamic Range134 dB
EncryptionAES 256

Receiver

Receiver TypeTabletop / Rackmount
Mounting OptionsRackmount (with Included Hardware)
Rackmount Size1 RU (1/2 Rack)
Antenna2 x 1/4 Wave Rod, BNC (Rear-Mount)
Number of Audio Channels2
Audio I/O2 x XLR 3-Pin Male Balanced Output 2 x 1/4" TS Female Unbalanced Output
Audio Output Level+18 dBu (Max) +12 dBu (Max)
Frequency Response20 Hz to 20 kHz ±3 dB
Network I/O1 x RJ45
Word Clock I/ONone
USB/Lightning ConnectivityNone
RF Output Power10 mW (EIRP)
Power RequirementsAC/DC Power Adapter, PoE
AC/DC Power Adapter11 to 13 VDC (Included)
DC Input Power12 VDC
AC Input Power100 to 240 VAC, 50 / 60 Hz
Display & Indicators1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Operating Humidity5 to 95%
Dimensions8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
Weight2.2 lb / 1 kg (without Antenna)

Transmitter

Transmitter TypeHandheld
MutingMute Switch
Audio Input Level2 to 4.35 V
Auto-Level ControlNo
Sync MethodBluetooth
Battery Type1 x Sennheiser Battery Pack (Included) 2 x AA (Not Included)
Approx. Battery Life12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline)

Microphone Capsule

Microphone TypeHandheld Capsule
ColourBlack
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Maximum SPL154 dB SPL
Sensitivity2.1 mV/Pa

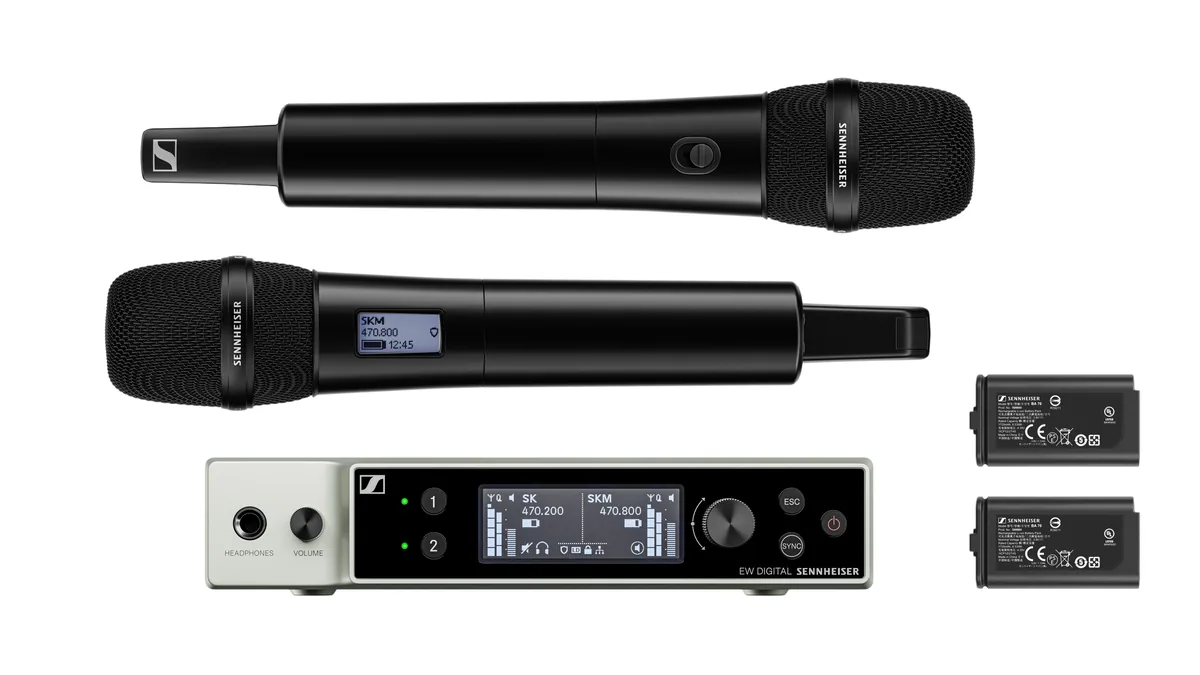

In the box

  • Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver (S4-10)
  • 2 x Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with MMD 835 Capsule & Mute Switch (S4-10)
  • 2 x Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
  • 2 x Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
  • 2 x Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
  • 2 x Rod Antenna
  • GA 3 Rackmount Set
  • 4 x Rubber Feet
  • Sennheiser Universal Power Supply for EW-D EM Wireless Receiver
