Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)
Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)
Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)
Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)
Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)
Sennheiser

Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz)

SKU
700014
Model
EW-DP ME2 SET
Barcode
615104376403
  • S4-7 Band(630 - 662 MHz)
  • Creators, Videographers, Newsgatherers
  • ME 2 Omnidirectional Lavalier Mic
  • Lightweight Bodypack Transmitter

Overview

Sennheiser EW-DP ME-2 SET Evolution Wireless Digital Lavalier Set (S4-7: 630 – 662 MHz) by Sennheiser, model EW-DP ME2 SET. Listed under Wireless Systems in our Music & Audio range.

Weight: 0.3 lb / 140 g.

Key features

  • S4-7 Band(630 – 662 MHz)
  • Creators, Videographers, Newsgatherers
  • ME 2 Omnidirectional Lavalier Mic
  • Lightweight Bodypack Transmitter
  • True-Diversity Camera-Mount Receiver
  • Pro Features with Fast & Easy Setup

Warranty: 2 year manufacturer warranty.

Specifications

System

Wireless TechnologyDigital UHF
Included Transmitters1 x Bodypack
DiversityIntelligent Switching Diversity
RF Frequency BandS4-7: 630 - 662 MHz
RF Bandwidth56 MHz
Frequency Step Size25 kHz
RF Channel ScanningAuto-Scan
Max Operating Range328.1' / 100 m (Line of Sight)
Max Transmitters per Band58
Built-In RecorderNo
Mobile App CompatibleYes: Android & iOS App Name: Sennheiser Smart Assist Functionality: Adjust Settings, Remote Control, Setup *As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility
Bluetooth5.1 LE
Bluetooth Operating Distance120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution24-Bit
Latency1.9 ms
Dynamic Range134 dB
EncryptionNone

Receiver

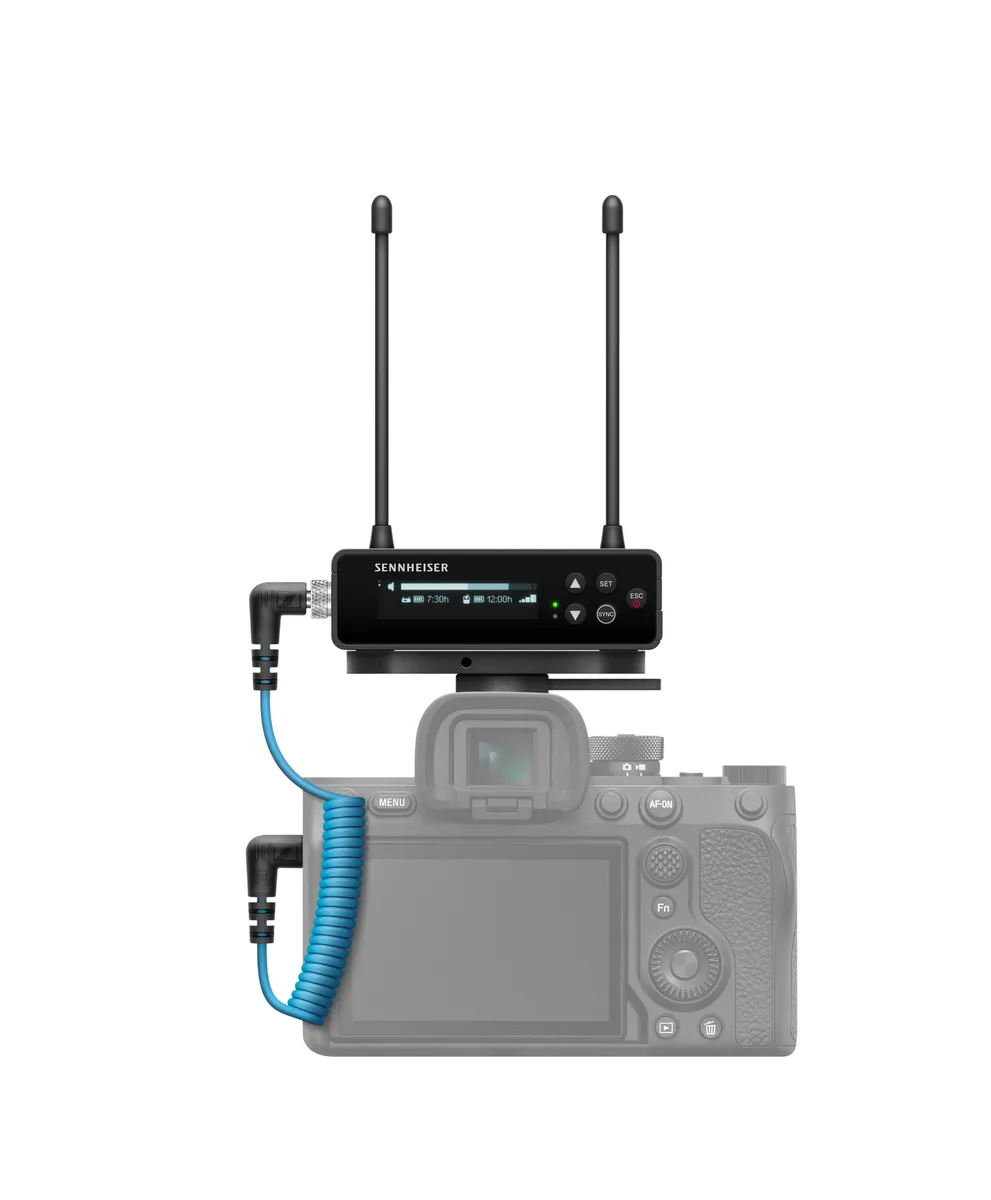

Receiver TypeCamera-Mount
Mounting OptionsBelt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)

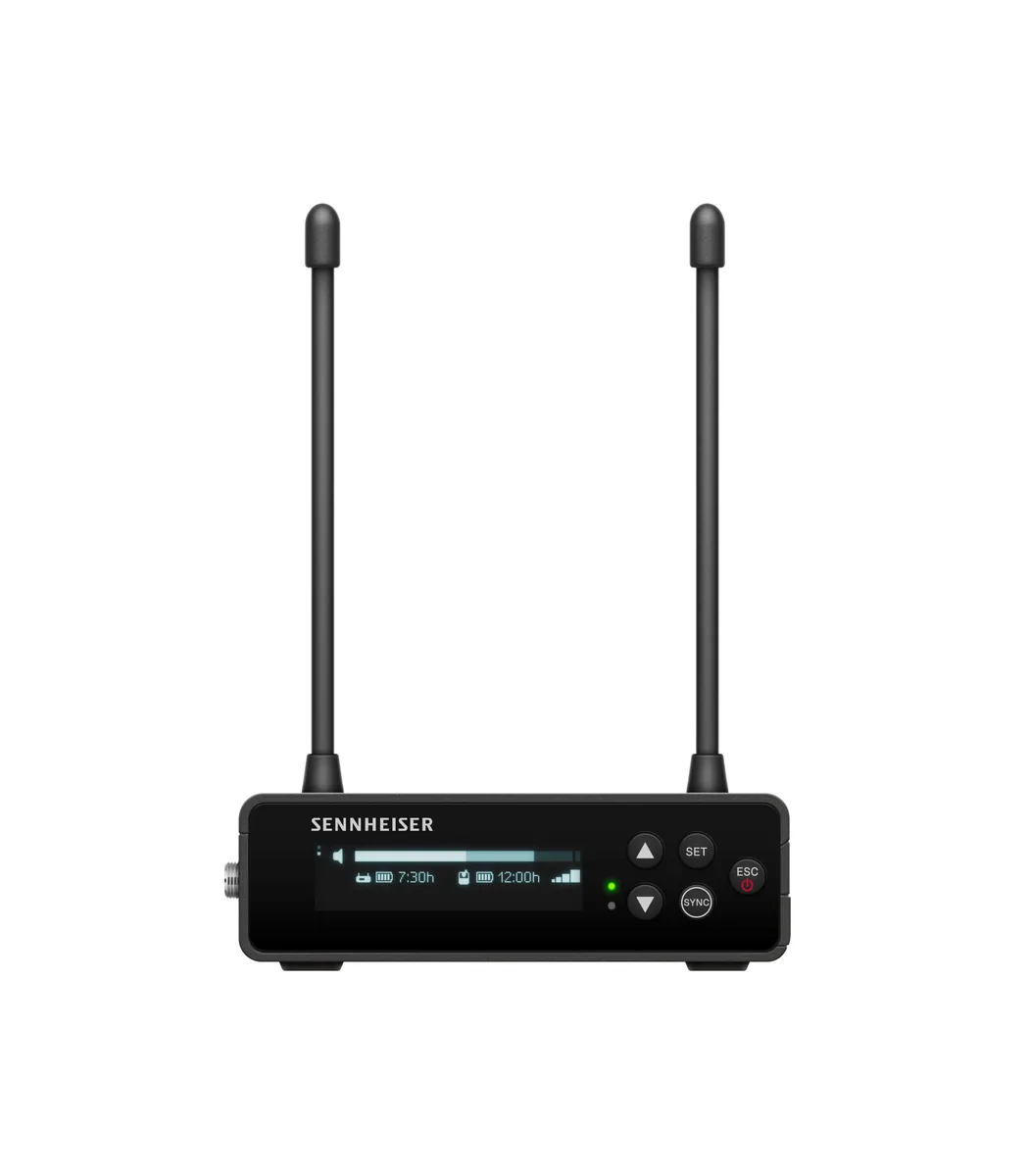

Antenna2 x 1/4 Wave Rod, Fixed
Number of Audio Channels1
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking)
Audio Output Level1/8" / 3.5 mm Output: 2 dBV (Max, Unbalanced)
Frequency Response20 Hz to 20 kHz ±3 dB
Network I/ONone
Word Clock I/ONone
USB/Lightning Connectivity1 x USB-C Female (Bus Power, Charging)
RF Output Power10 mW (EIRP)
Power RequirementsBattery, Bus Power (USB)
Battery Type2 x AA (Included) 1 x Sennheiser Battery Pack (Included)
Approx. Battery Life7 Hours

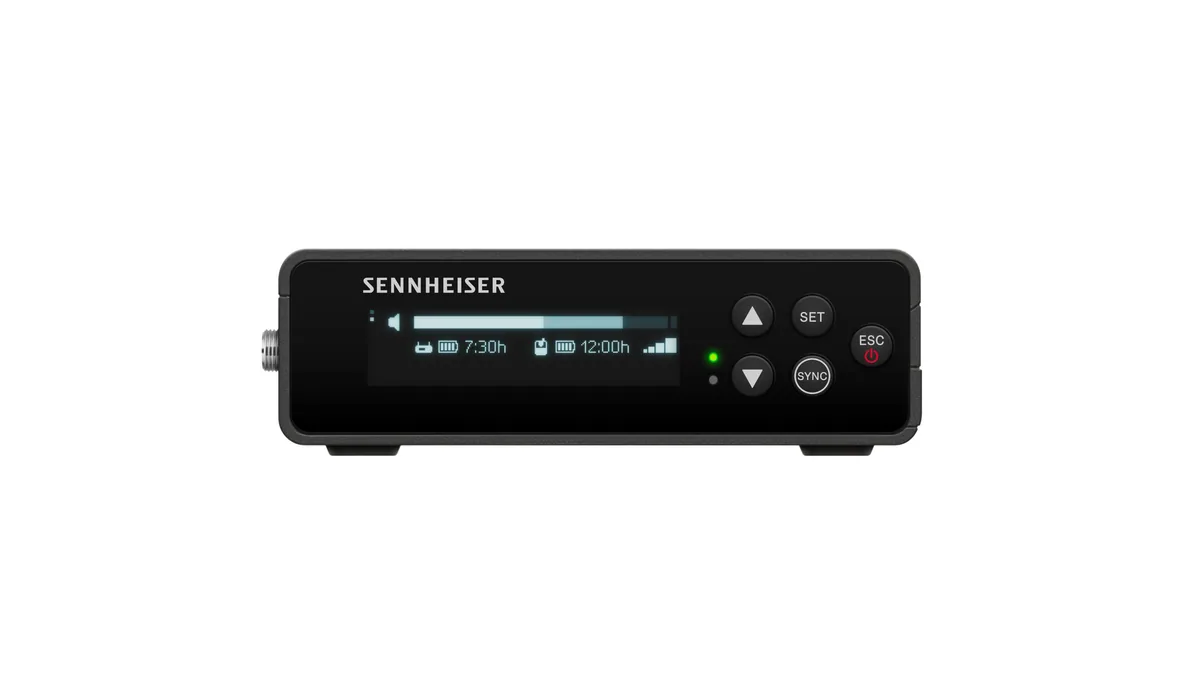

Display & Indicators1 x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
Operating Temperature14 to 131°F / -10 to 55°C
Operating Humidity5 to 95%
Dimensions3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
Weight0.3 lb / 140 g

Transmitter

Transmitter TypeBodypack
MutingMute Switch
Audio Input Level2 to 4.35 V RMS
Auto-Level ControlNo
Sync MethodBluetooth
HousingMetal

Microphone

Microphone TypeLavalier
ColourBlack
Sound FieldMono
CapsuleElectret Condenser
Polar PatternOmnidirectional
Frequency Range50 Hz to 18 kHz
Equivalent Noise Level32 dB
Maximum SPL130 dB SPL
Sensitivity17 mV/Pa at 1 kHz
Output Connector1 x 1/8" / 3.5 mm TRS Male (Lockable)
Cable Length5.2' / 1.6 m
Operating Voltage7.5 V

Charging Case

CapacityNot Specified by Manufacturer

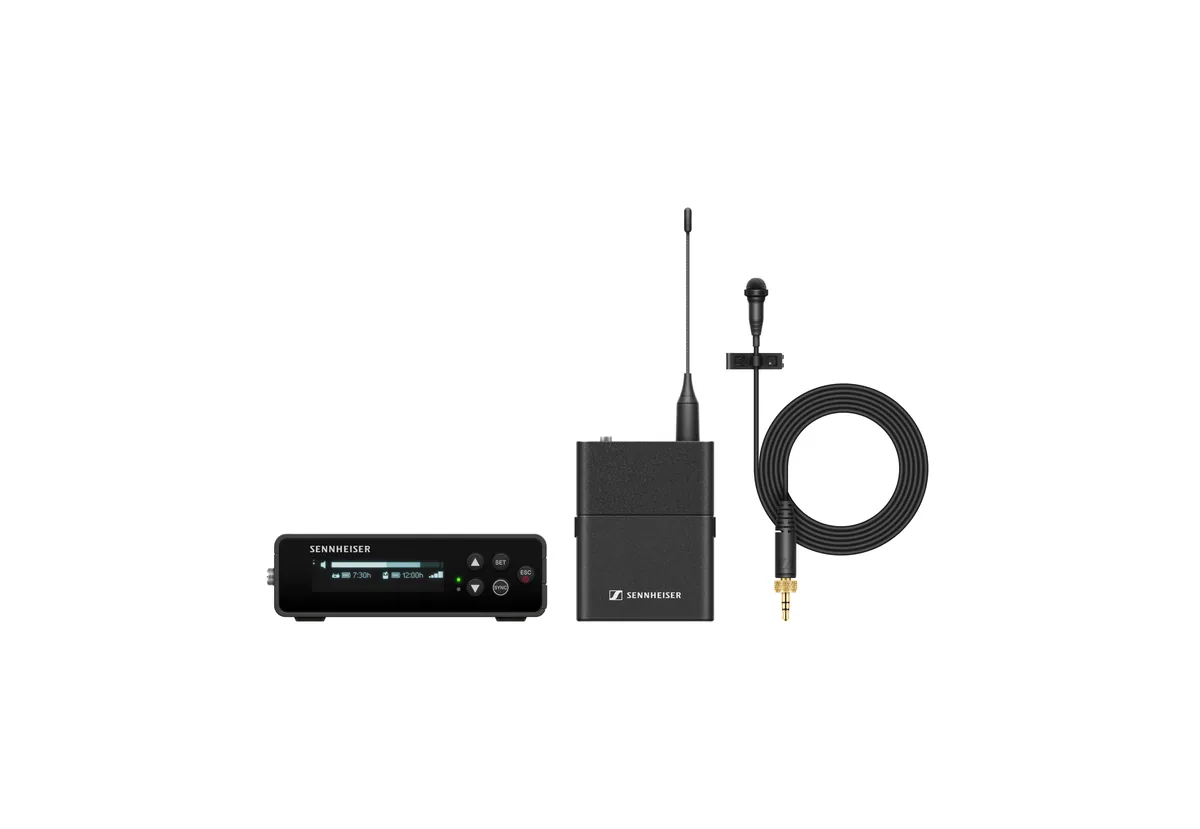

In the box

  • EW-DP EK digital portable single channel receiver
  • EW-D SK digital bodypack transmitter
  • ME 2 omnidirectional lavalier microphone
  • Mounting kit (cheese plate, cold shoe, belt clip & screws)
  • BA 70 li-ion battery & (2) AA battery
  • Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
  • Locking 3.5 mm TRS plug to XLR plug cable
  • USB-C charging cable
