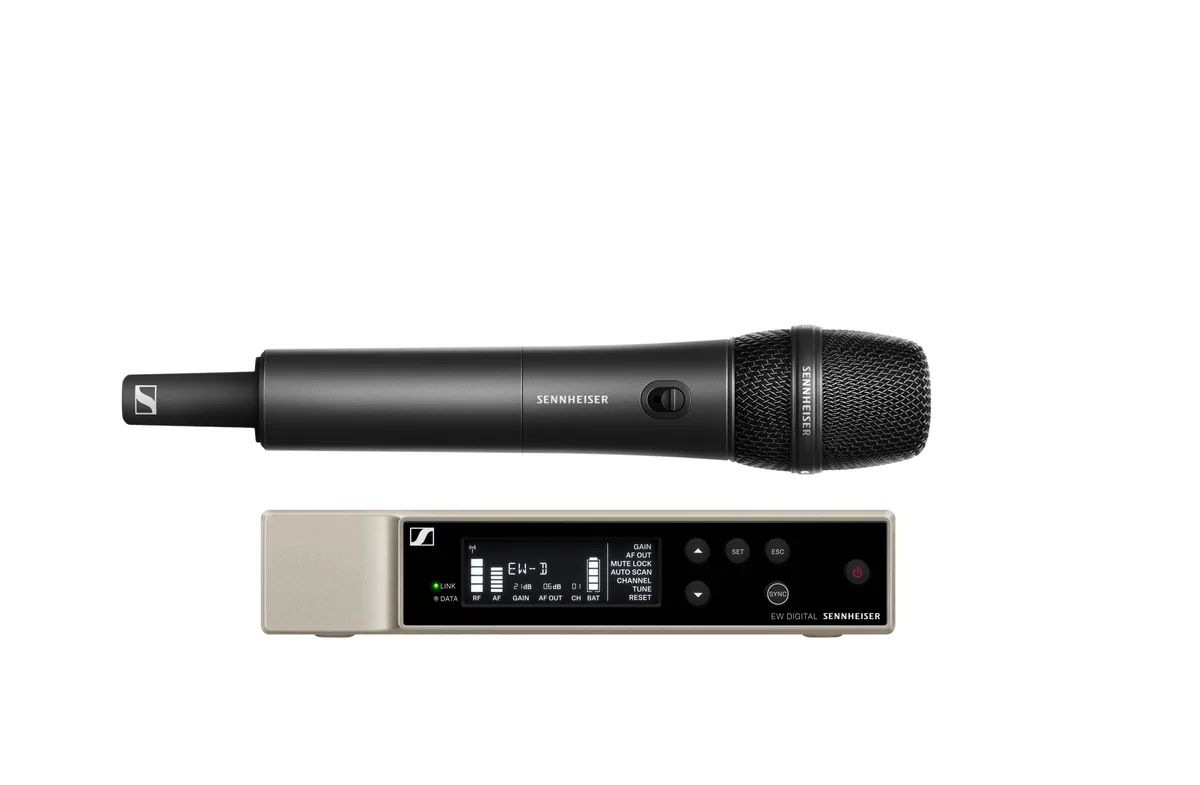

Sennheiser EW-D 835-S Handheld Set (R1-6: 520 – 576 MHz)
Sennheiser

Sennheiser EW-D 835-S Handheld Set (R1-6: 520 – 576 MHz)

SKU
508751
Model
EW-D 835-S SET
Barcode
615104335554
  • R1-6 Band (520 - 576 MHz)
  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus

Overview

Sennheiser EW-D 835-S Handheld Set (R1-6: 520 – 576 MHz) by Sennheiser, model EW-D 835-S SET. Listed under Wireless Systems in our Music & Audio range.

Weight: Approx. 1000 g (without antennas and power supply).

Key features

  • R1-6 Band (520 – 576 MHz)
  • Digital wireless eliminates noise, interference and static bursts
  • UHF transmission greatly enhances range, reliability and scalability
  • Mobile App streamlines setup and operation and eliminates complicated menus
  • Automated setup creates reliable connections with minimal time and effort

Warranty: 2 year manufacturer warranty.

Specifications

System

Audio Link Frequency RangesR1-6: 520 - 576 MHz
Bluetooth Low Energy (BLE) Frequency Range2402 - 2480 MHz
Audio Frequency Response20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating Temperature-10°C - +55°C (14°F - 131°F)
Relative Humidity5 - 95 % (non-condensing)

EW-D EM (Rack Receiver)

Input Voltage11 - 13 V ⎓
Input Current≤ 300 mA
Transmit Power (Radiated)BLE: max. 10 mW EIRP
Audio Output Power18 dBu max.
Dimensions212 x 44 x 189 mm
WeightApprox. 1000 g (without antennas and power supply)

EW-D SKM-S (Handheld Transmitter)

Power Supply2 AA batteries 1.5 V (alkali manganese) or BA 70 Rechargeable Battery Pack
Occupied Bandwidth200 kHz
Dimensions (ø x l)50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
Weight (Without Batteries)Approx. 304 g (incl. MMD 835 microphone module) Approx. 195 g (without microphone module)

MMD 835 (Microphone Module)

Transducer PrincipleDynamic
Sensitivity2.1 mV/Pa
Sound Pressure Level154 dB SPL
Pick-up PatternCardioid

In the box

  • EW-D EM Rack Receiver
  • EW-D SKM-S Handheld Transmitter
  • MMD 835 Microphone Module
  • MZQ 1 Microphone Clamp
  • 2 x Rod Antennas
  • Power Supply with Country Adapters
  • Rackmount Set
  • 4 x Rubber Feet
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
