Radial

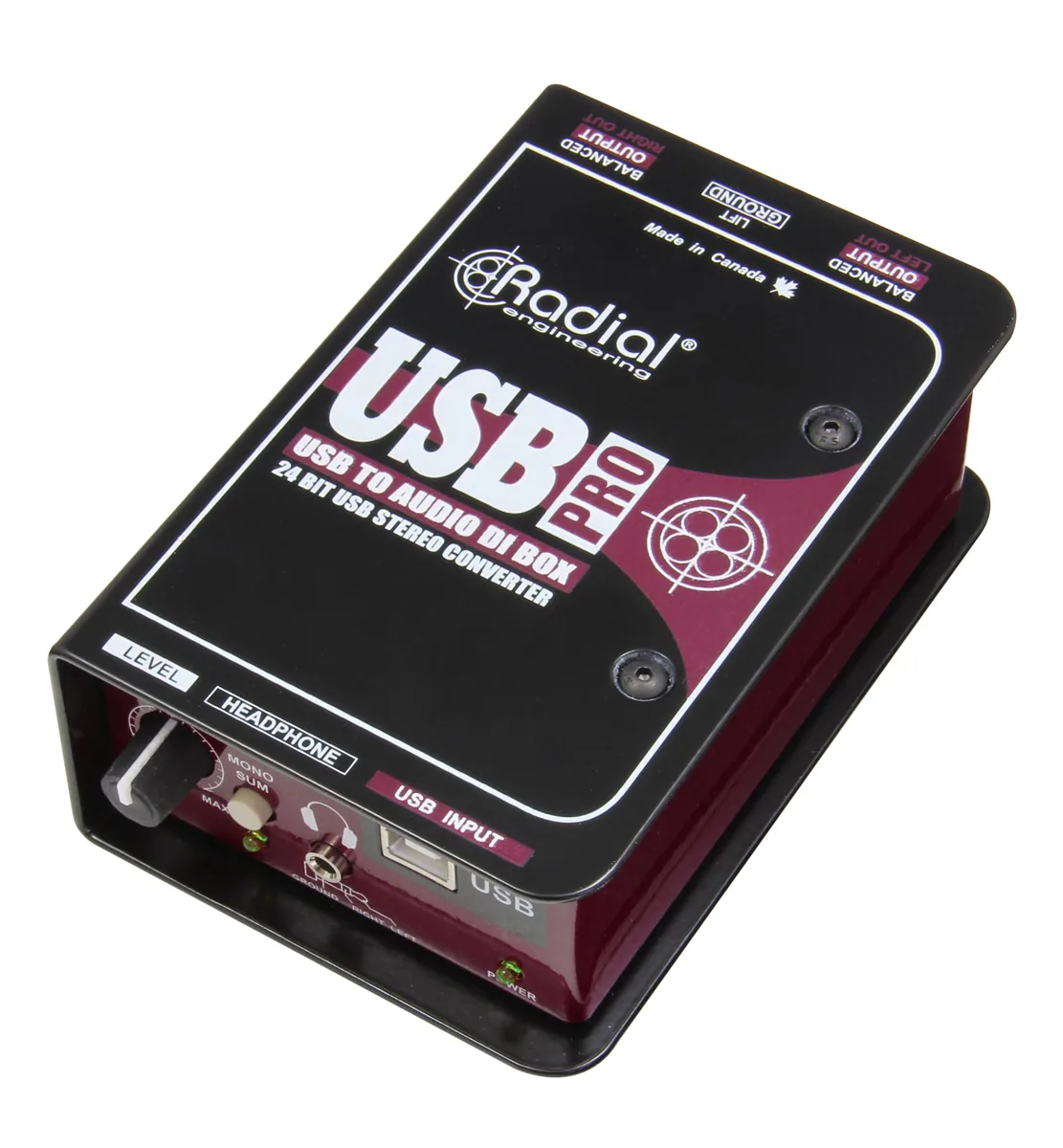

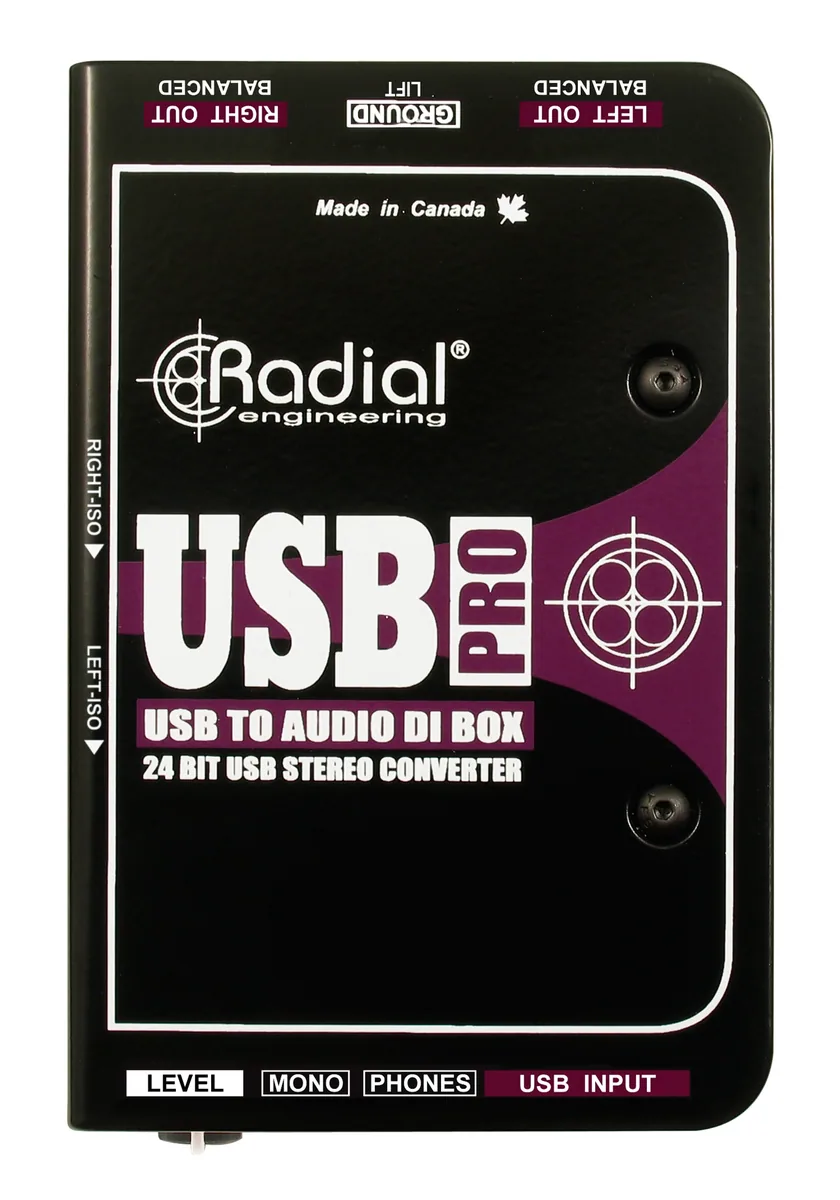

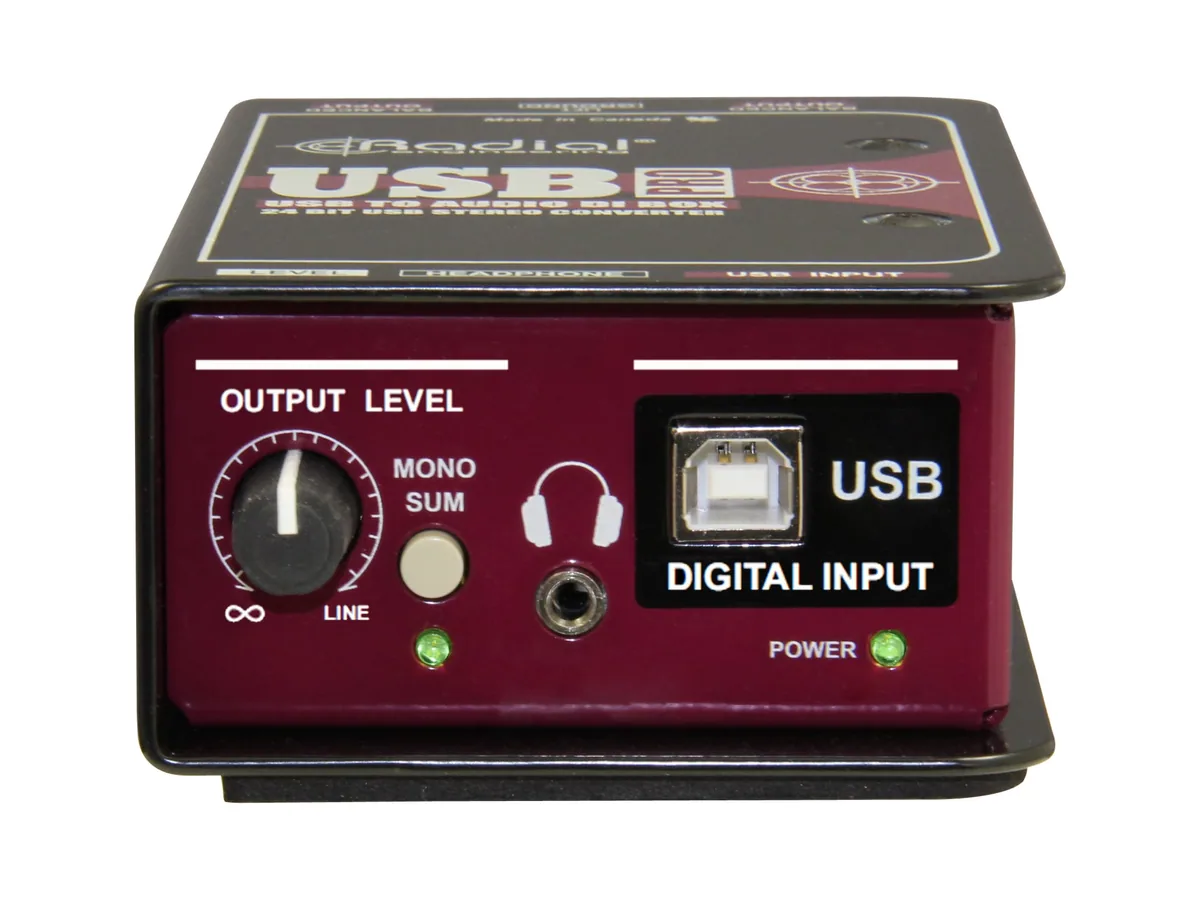

Radial Engineering USB-Pro Stereo USB Laptop DI

Name: Radial Engineering USB-Pro Stereo USB Laptop DI
Brand: Radial
SKU: RA-USB-PRO
Price: 599.00 AUD
Availability: InStock

Overview

Radial Engineering USB-Pro Stereo USB Laptop DI by Radial, model R800 1050. Listed under Direct Injection (D.I.) Boxes in our Music & Audio range.

Weight: 1.5 lb / 0.7 kg.

Warranty: 5 year manufacturer warranty.

Circuit Type	Custom Decoder with Analogue Line Drive
Inputs	1 x USB Type-B
Outputs	2 x XLR 3-Pin Male Balanced Mic/Line Outputs 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
USB Compatibility	USB 1.1 Full Speed
Bit Depth	24-Bit, 16-Bit
Sampling Rate	44.1, 48, 88.2, or 96 kHz (Set by Host Computer)
File Compatibility	WDM, MME, ASIO, CoreAudio, DirectSound, WASAPI, and WAV
System Requirements	macOS Windows XP or Later
Frequency Response	5 Hz to 40 kHz (30 Hz to 18 kHz with Isolation)
Dynamic Range	>90 dB
Noise	<-90 dB
Maximum Output Level	+8 dBu
Total Harmonic Distortion	<0.01%
Stereo Separation	75 dBu
Output Impedance	XLR Output: 250 Ohms (Nominal) Headphone Output: 8 to 400 Ohms
Isolation	Switchable per Channel
Ground Lift	Switchable (Lifts Pin 1 on Both XLR Outputs)
Power Requirements	USB Bus Power, 500 mA Maximum
Operating Temperature	41 to 104°F / 5 to 40°C
Construction	14-Gauge Steel Chassis and Outer Shell
Dimensions	3.3 x 5 x 2" (83.8 x 127 x 50.8 mm)
Weight	1.5 lb / 0.7 kg
