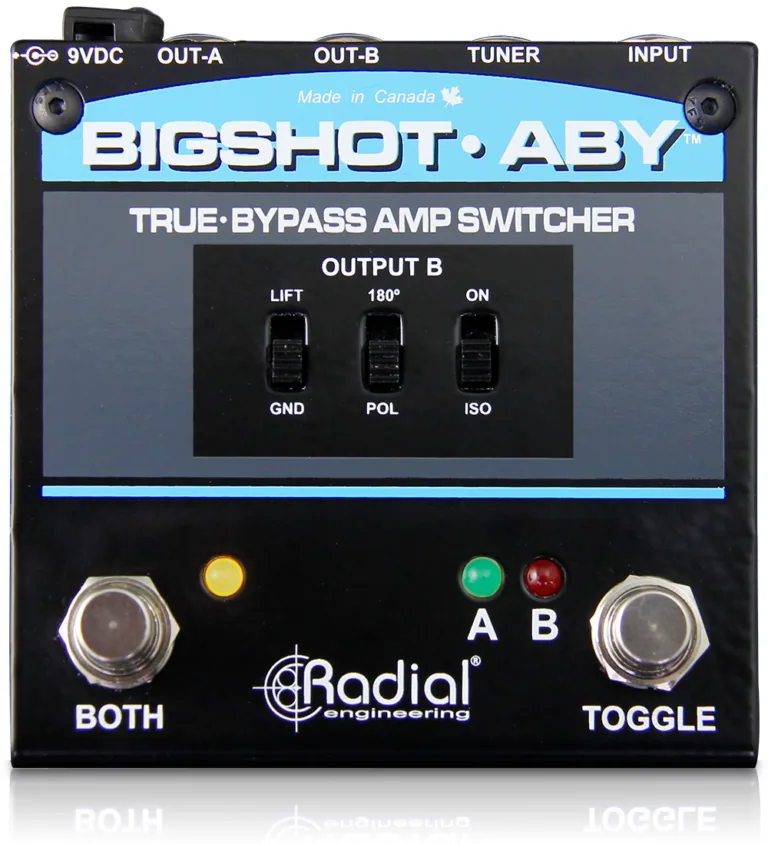

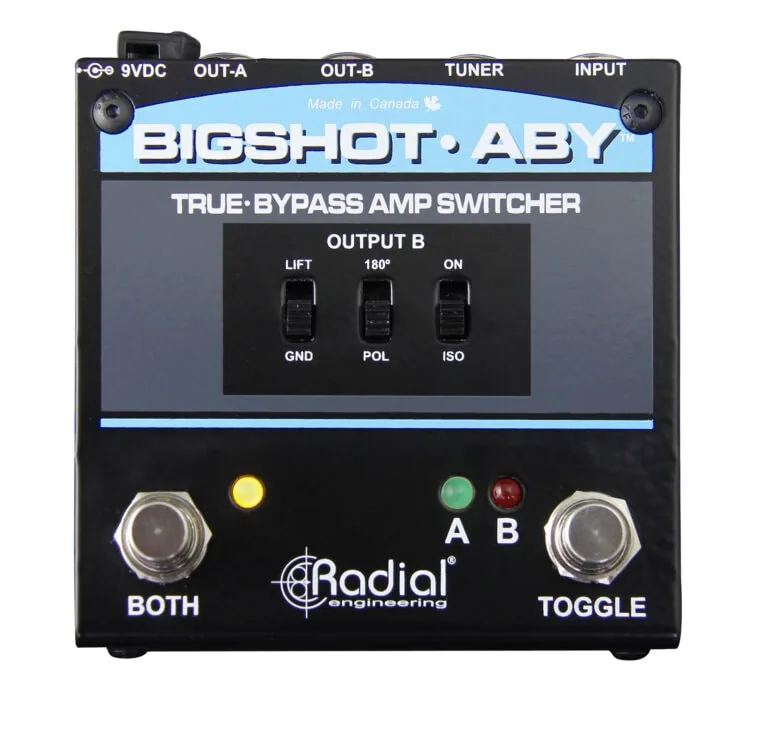

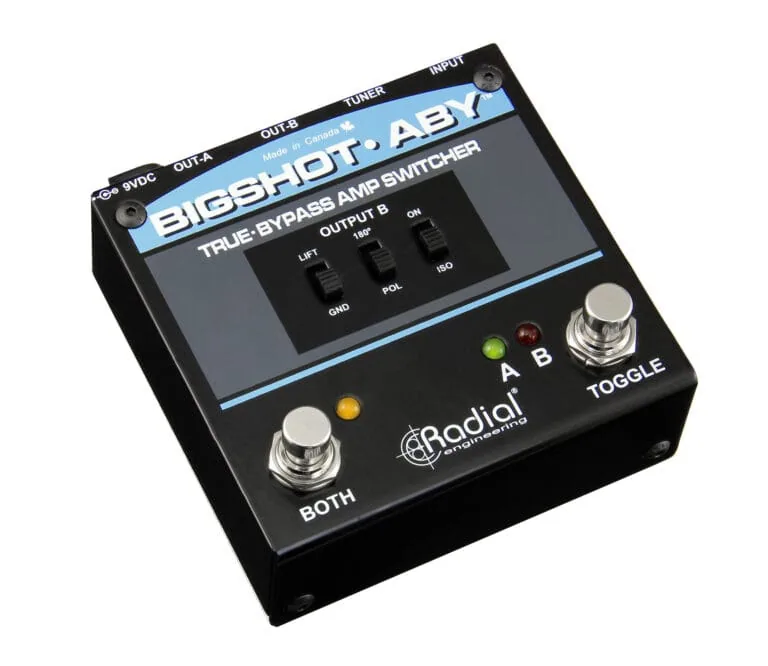

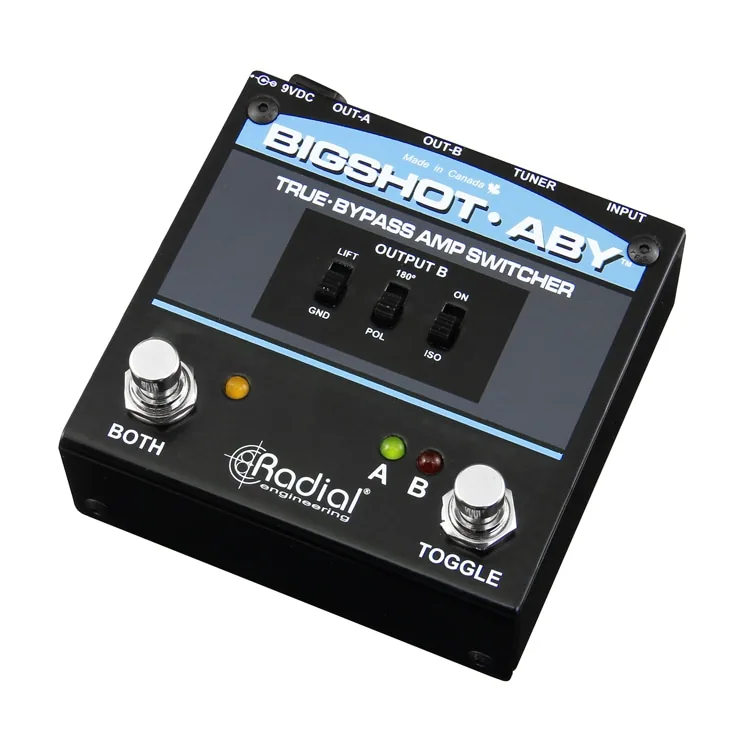

Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
Radial

Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights

SKU
RA-BIGSHOT-ABY
Barcode
676101044283
  • 100% Passive Analog Circuitry
  • Switch Between 2 Amps or Use Both
  • Iso-Transformer & Ground-Lift
  • 180° Polarity Switch

Overview

Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights by Radial, model RA-BIGSHOT-ABY. Listed under Pedals in our Music & Audio range.

Weight: 0.6 kg.

Key features

  • 100% Passive Analog Circuitry
  • Switch Between 2 Amps or Use Both
  • Iso-Transformer & Ground-Lift
  • 180° Polarity Switch
  • Dedicated Tuner Output
  • LEDs Powered by 9V Battery or Power Jack

Warranty: 5 year manufacturer warranty.

Specifications

Circuit TypePassive, true bypass
Frequency Response20 Hz to 20 kHz
Gain-0.3 dB
Phase Response<1°
SwitchingPassive
Outputs1 x 1/4" direct output, output-A 1 x 1/4" switchable transformer-isolated or direct output, output-B 1 x 1/4" tuner output
LED IndicatorLarge 3 mm OD ultra-bright LEDs
Ground LiftLifts ground at output-B
Polarity Reverse180° (phase) reverse at output-B
Transformer IsolationSwitchable isolation transformer on output-B
Power Supply9 VDC, centre pole negative
Construction14-gauge steel
FinishPowder coat
Operating ConditionsFor use in dry locations at temperatures of 5 to 40°C
Dimensions9.1 x 9.9 x 5.1 cm
Weight0.6 kg

In the box

  • Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights
