Neutrik

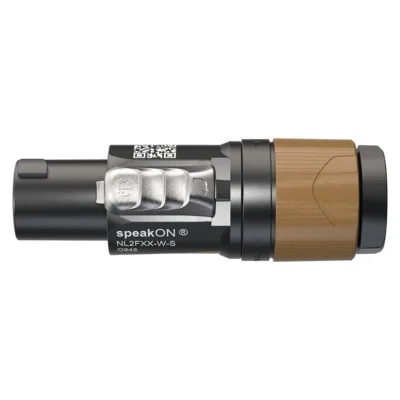

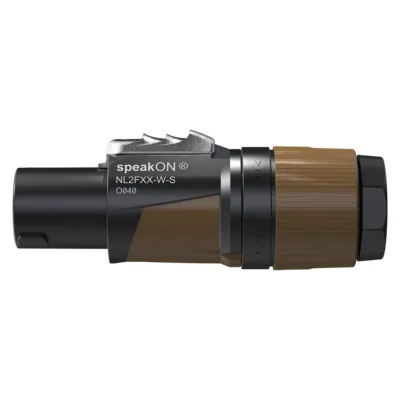

Neutrik NL2FXX-W-S Two-Pole speakON Connector (Brown)
- SKU
- NU-NL2FXX-W-S
- Model
- NL2FXX-W-S
- Barcode
- 7613187017650
- NL2 speakON Connector
- Easy Assembly
- Screw Terminal Assembly
- Chuck-Type Strain Relief
Overview
Neutrik NL2FXX-W-S Two-Pole speakON Connector (Brown) by Neutrik. Listed under Speakon in our Cables & Connectors range.
Compatible with Not Specified by Manufacturer. Weight: Not Specified by Manufacturer.
Key features
- NL2 speakON Connector
- Easy Assembly
- Screw Terminal Assembly
- Chuck-Type Strain Relief
- Cable Diameter: 0.2 to 0.5″
- Current Rating 37A RMS Continuous
Warranty: 1 year manufacturer warranty.
Specifications
General
| Compatibility | Not Specified by Manufacturer |
|---|---|
| Electrical | Contact Resistance: ≤ 2 Megaohms Dielectric Strength: 2.8 kVac Insulation Resistance: > 10 Gigohms (Initially) Electronical Contacts: 2 Rating Europe: IEC 61984: 37 A 250 VAC Rating USA: UL1977: 35 A 250 VAC Rating Canada CSA C22.2 No.182.3: 24 A 250 VAC |
| Specifications | Mechanical Cable Diameter: 0.2 to 0.5" / 6 to 12 mm Lifetime: Typically 5000 Mating Cycles Wire Size (mm):1.5 to 4 mm² Wire Size (AWG): 17 to 11 AWG Locking Device: Twist Lock Termination: Screw Type Terminals |
Environmental
| Environmental Protection | No |
|---|---|
| Operating Temperature | -27 to 176°F / -33 to 80°C |
Physical
| Colour | Brown / Black |
|---|---|
| Material | Copper Alloy Contacts, Zinc Diecast Lock, Polyamide Shell and Insert, Polypropylene Bushing, Polyketone Strain Relief |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
In the box
- Neutrik NL2FXX-W-S Two-Pole speakON Connector (Brown)
