LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone
LD Systems

LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone

SKU
LDU306HHDUS
Barcode
4049521395956
  • Diversity UHF wireless system with FM technology
  • 12 selectable channels
  • 100m transmission range in ideal conditions
  • Simultaneous operation of up to 6 systems

Overview

LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone by LD Systems, model LDU306HHDUS. Listed under Dynamic Microphones in our Music & Audio range.

Weight: 0,94 kg.

Key features

  • Diversity UHF wireless system with FM technology
  • 12 selectable channels
  • 100m transmission range in ideal conditions
  • Simultaneous operation of up to 6 systems
  • ASC infrared transmitter and receiver syncing

Specifications

Product typeWireless Microphone Systems
TypeSet
Transmission frequency range655 - 679 MHz
Weight0,94 kg

Receiver

Modulation TypeFM
Channels12
Groups1
Antenna inputs2 x fixed
Frequency response25 - 16,000 Hz
Noise reductionSquelch
Transmission optimizationPilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio104 dB
Audio output, balancedXLR
ControlsVolume
Audio output, unbalanced6.3 mm jack, switchable unbalanced output level
IndicatorsLC display
Operating voltage12 V DC - 18 V DC (500 mA), external power supply
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu

Microphone

Microphone typeDynamic
DirectivityCardioid
Rated HF output power10 mW
Operating time>10 h

In the box

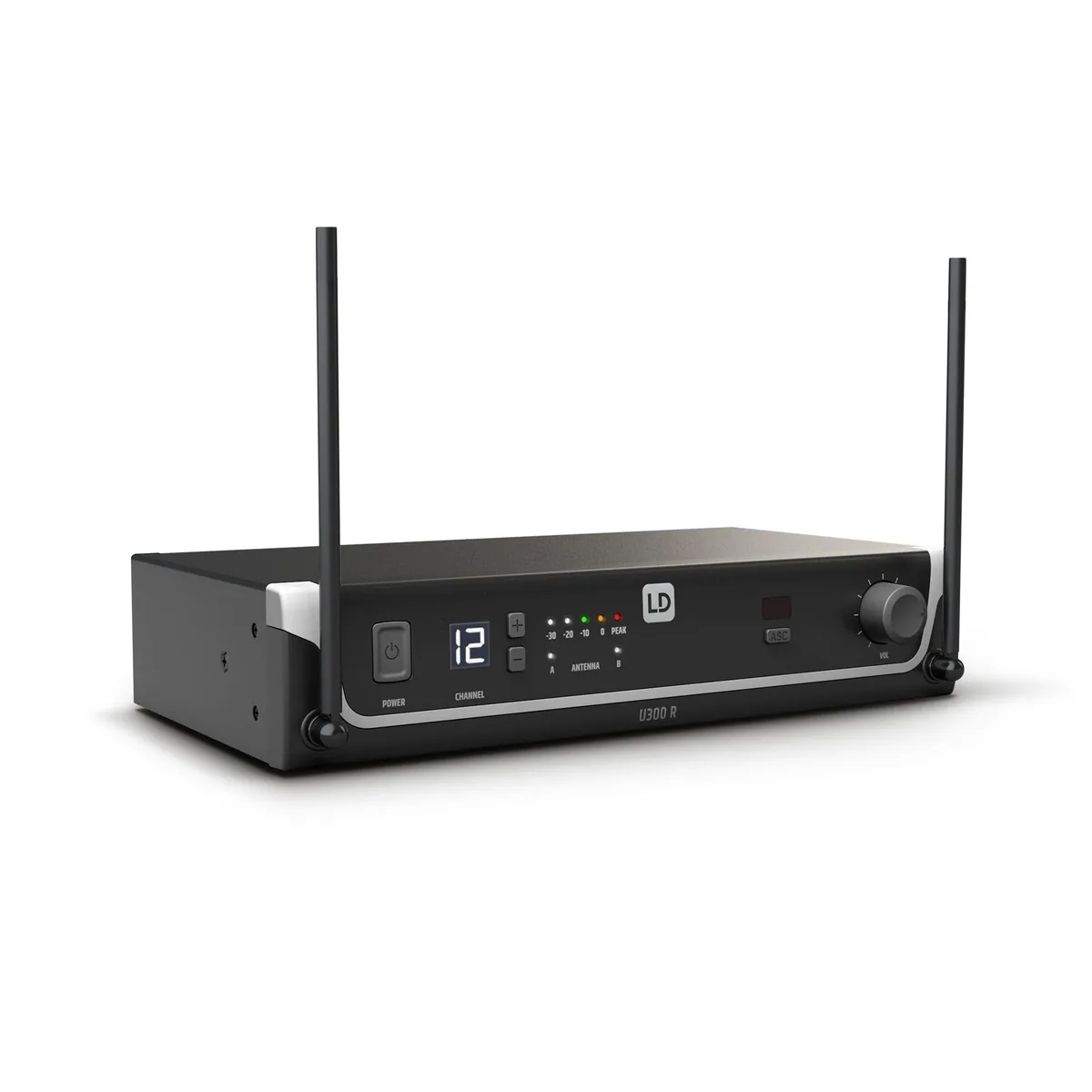

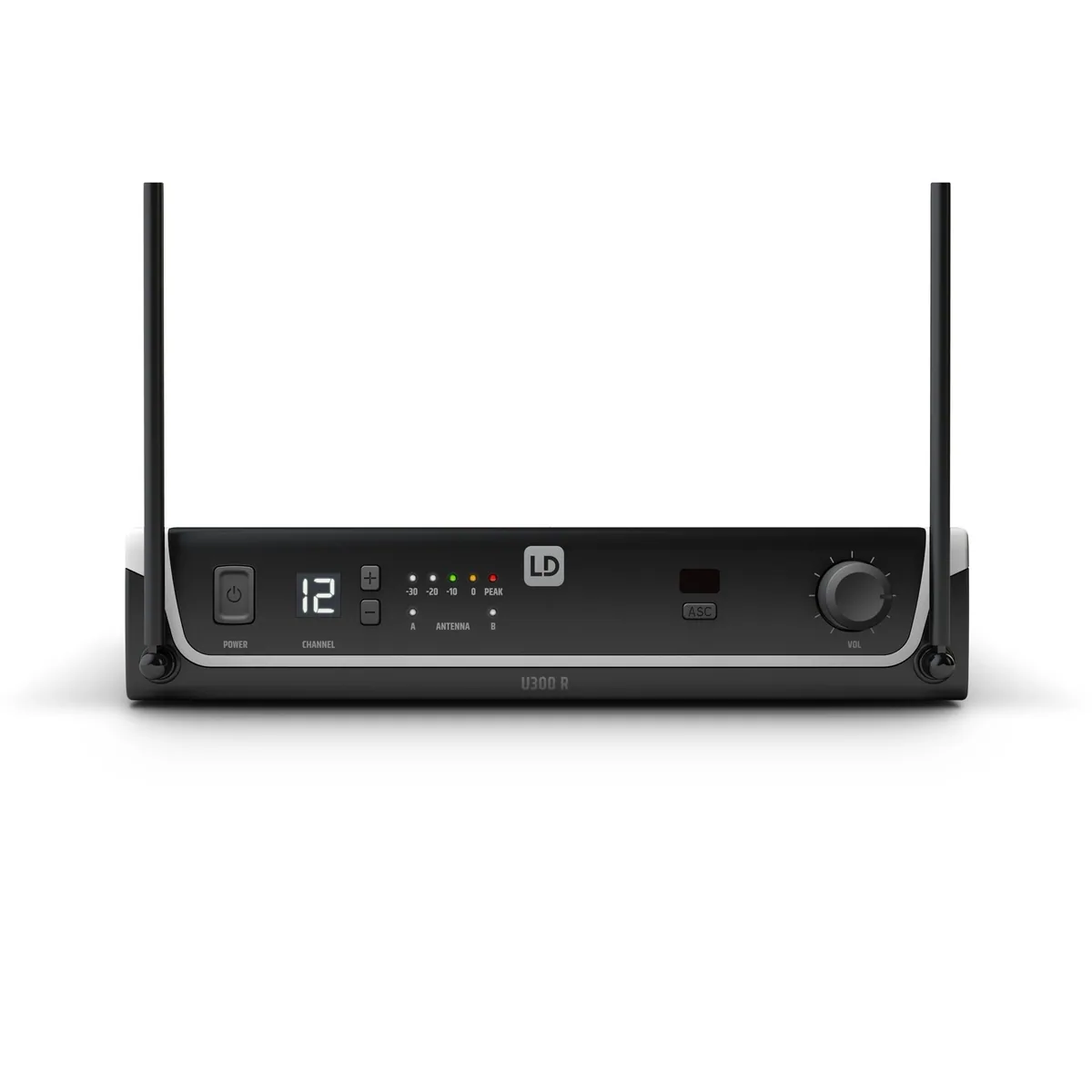

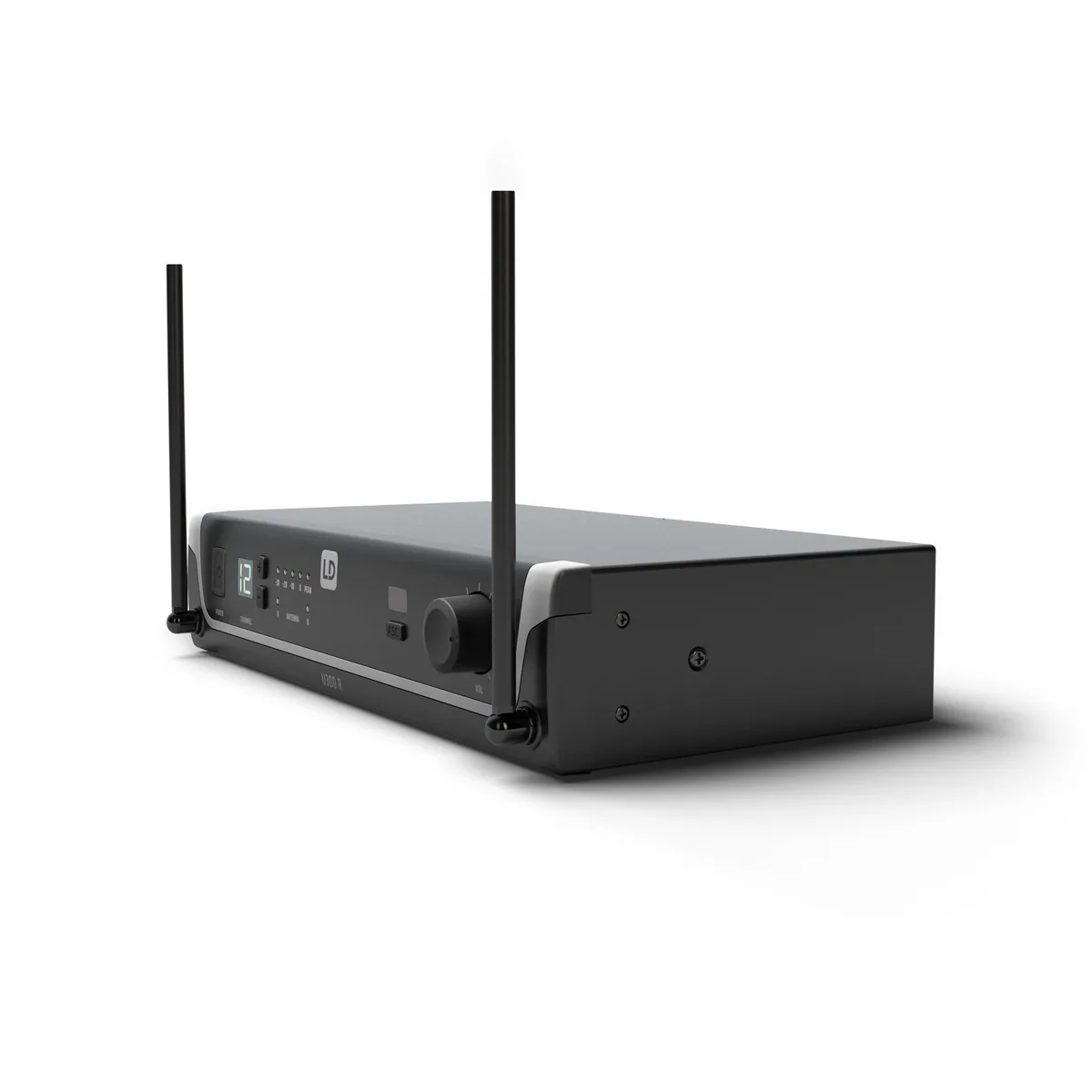

  • LDU306R - LD Systems U306 HHD Receiver
  • LDU306MD - LD Systems U306 HHD Dynamic handheld microphone
