LD Systems

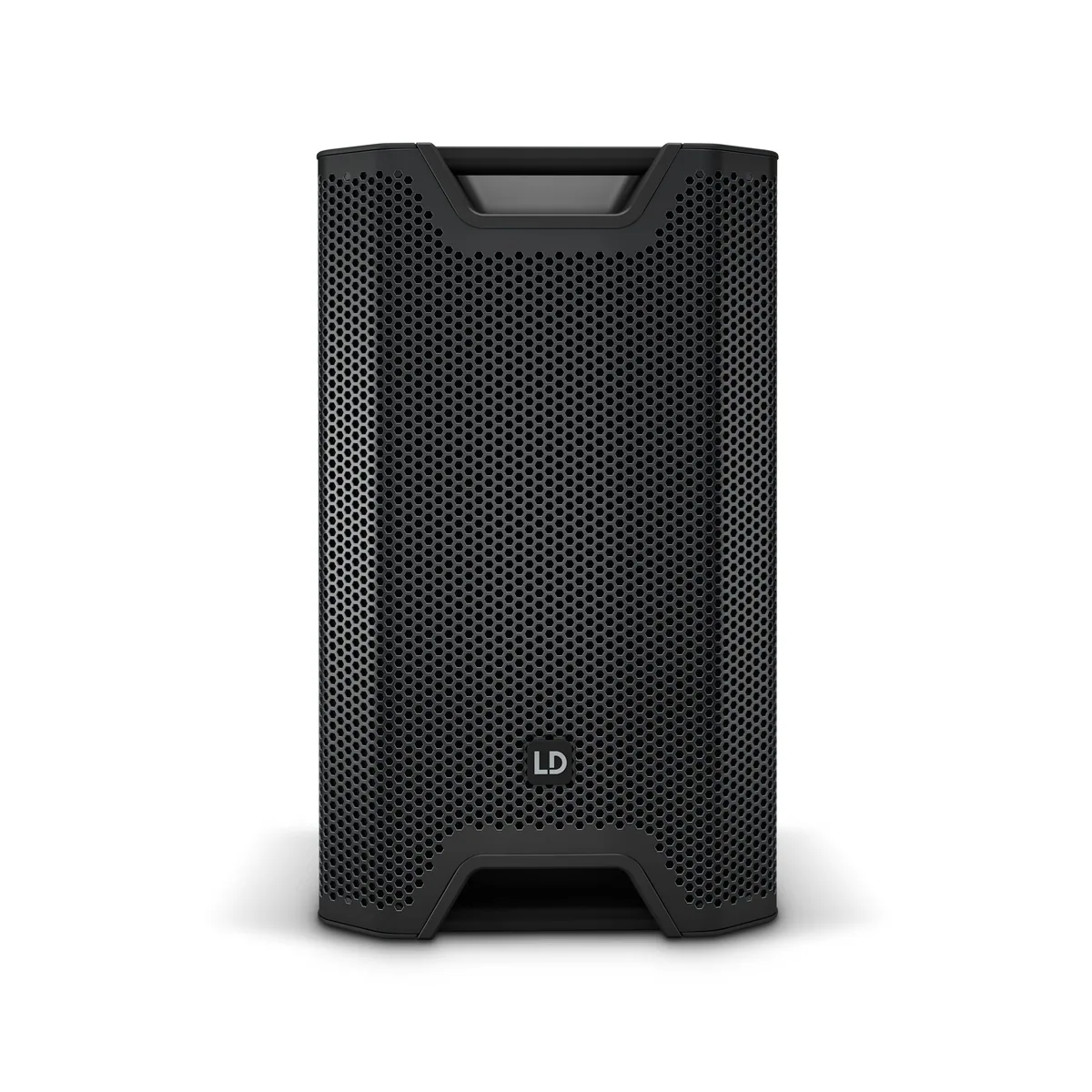

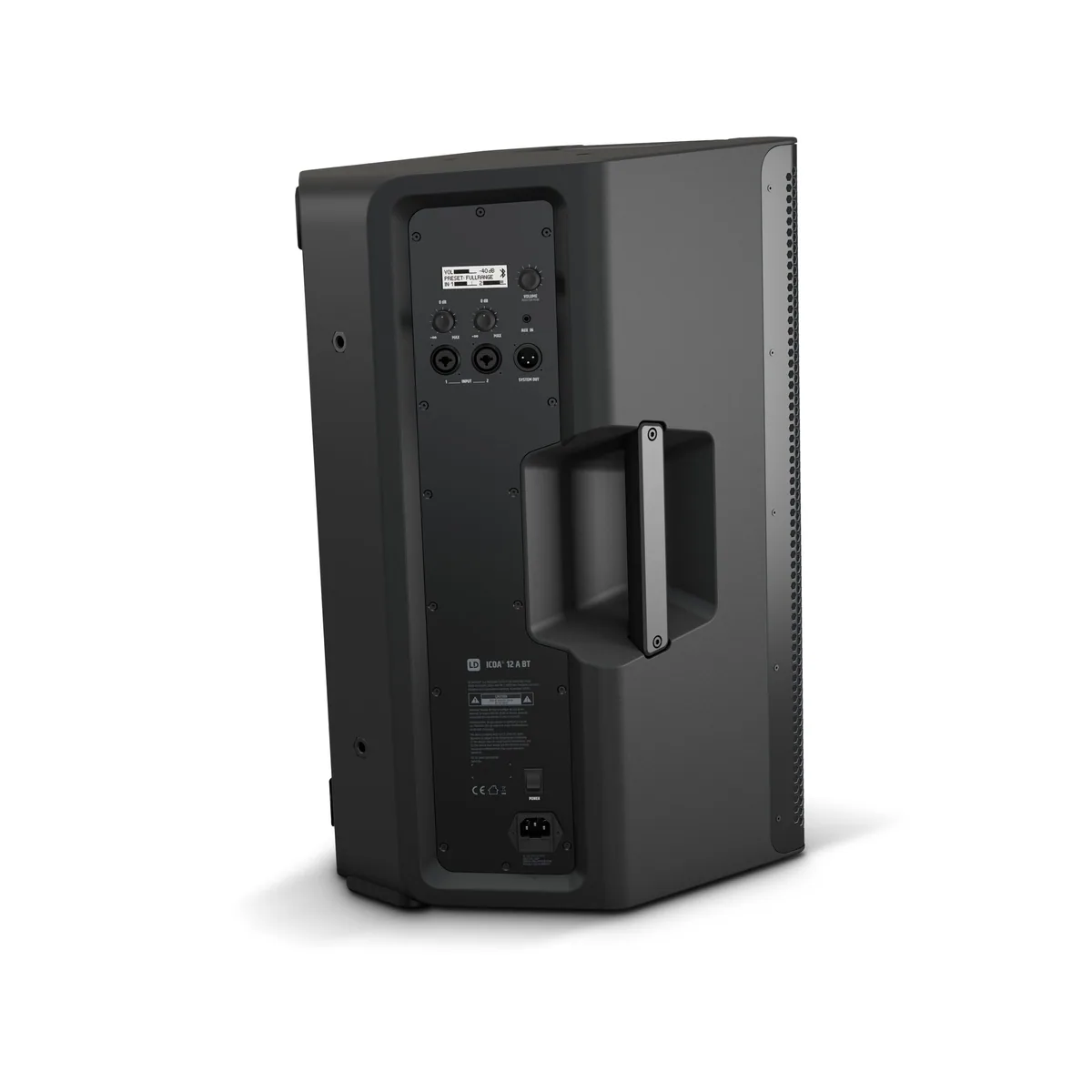

LD Systems ICOA 12″ Powered Coaxial PA Loudspeaker with Bluetooth
- SKU
- LDICOA12ABTINT
- Barcode
- 4049521436772
- A Genuine All-Rounder for Full-Range, Satellite and Monitor Applications
- Horn-Loaded Woofer
- DynX DSP with Four Presets, 3-band EQ and Delay Function
- 126 dB Max. SPL and 1200 W Peak Power
Overview
LD Systems ICOA 12″ Powered Coaxial PA Loudspeaker with Bluetooth by LD Systems, model LDICOA12ABTINT. Listed under Powered Speakers in our Music & Audio range.
Weight: 19.95 kg.
Key features
- A Genuine All-Rounder for Full-Range, Satellite and Monitor Applications
- Horn-Loaded Woofer
- DynX DSP with Four Presets, 3-band EQ and Delay Function
- 126 dB Max. SPL and 1200 W Peak Power
Specifications
| Product type | PA loudspeaker |
|---|---|
| Type | Powered |
| Bluetooth Audio Decoder | Bluetooth 4.0 |
| Low/mid driver dimensions | 12 " |
| Woofer size | 304.8 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Horn | BEM optimized CD Horn |
| HF driver dimensions | 1 " |
| HF driver size | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1.4 " |
| Amplifier | Class D |
| Dispersion (H x V) | 90° x 50° |
| RMS | 300 W |
| Peak power | 1200 W |
| Frequency response | 50 - 20000 Hz |
| Crossover frequency kHz | 2 kHz |
| Max. SPL (peak) | 126 dB |
| Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
| Controls | 2 x gain, On / off switch, Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical), XLR |
| Line inputs | 1 |
| Line input connectors | 3.5 mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Operating voltage | SMPS |
| Power consumption | 150 W |
| Ambient temperature ( in operation ) | 0 - 40 °C |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |
| Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
| Monitor angle | 55 ° |
| Width | 375 mm |
| Height | 635 mm |
| Depth | 396 mm |
| Features | Bluetooth |
| Weight | 19.95 kg |
| Accessories (included) | Power cord |
In the box
- 1x ICOA 12 A BT 12" Speaker
- 1x Power Cord
