HDfury

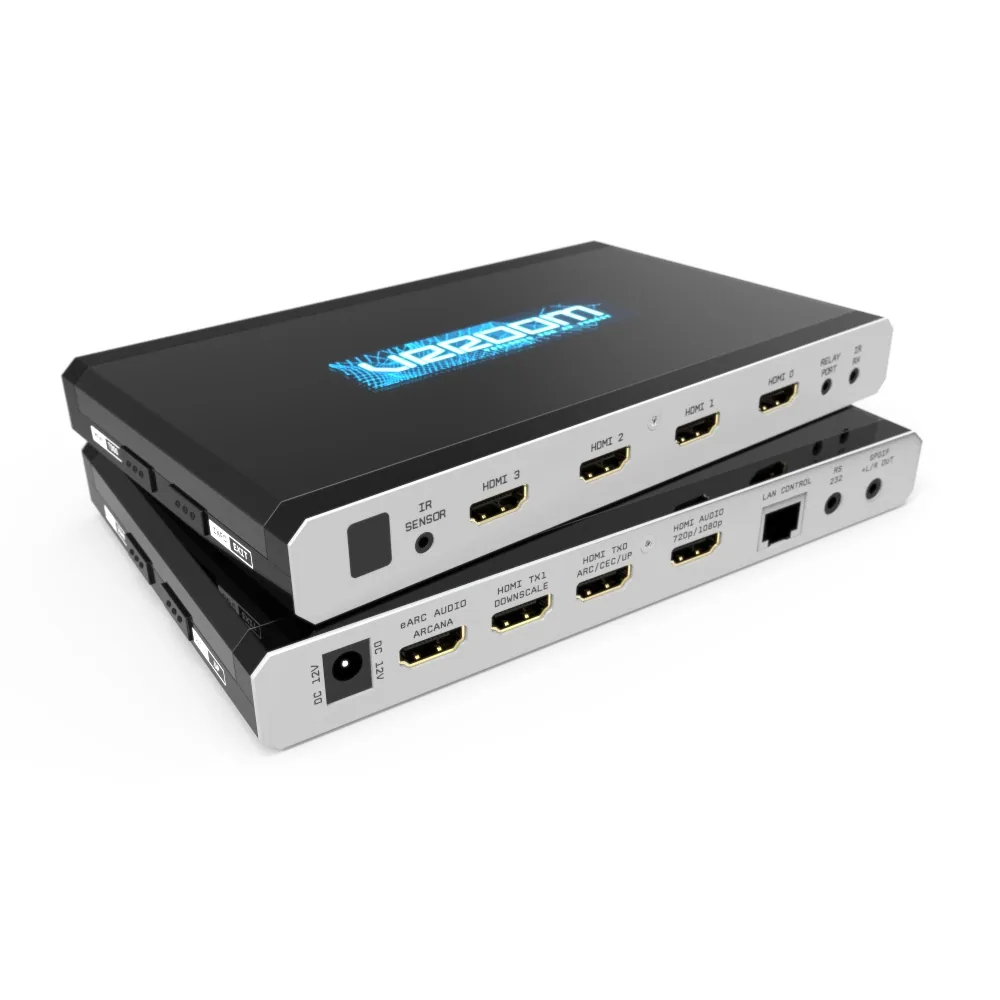

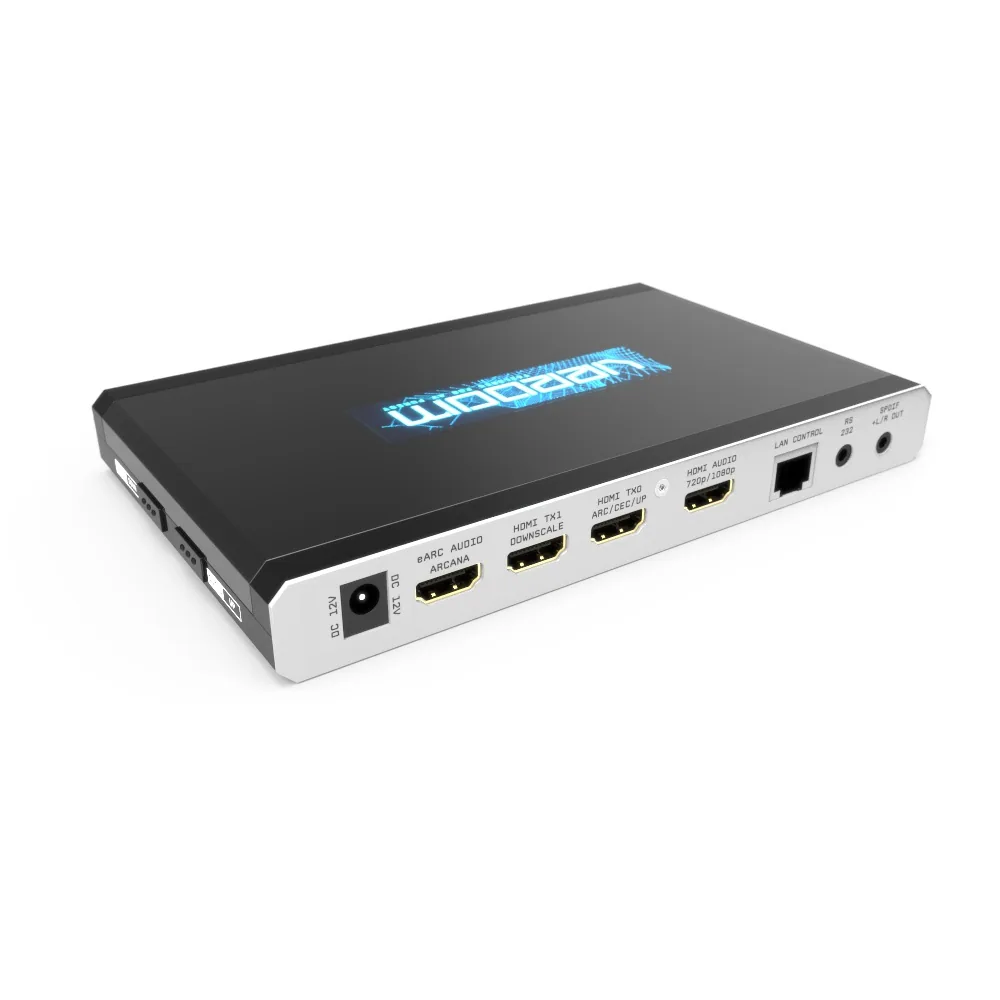

HDFury 8K VRROOM 40Gbps
- SKU
- VRROOM
- Barcode
- 631384548545
- 8K Switcher/Splitter
- 4K Matrix/Scaler
- Web
- eARC /Audio out
Overview
HDFury 8K VRROOM 40Gbps by HDfury. Listed under Video Processors in our Video range.
Weight: 520g – 1.15 LBS.
Key features
- 8K Switcher/Splitter
- 4K Matrix/Scaler
- Web
- eARC /Audio out
- 4 IN/OUT + RJ45
Specifications
| HDMI revision | HDMI 2.1 FRL5(1200Mcsc - 40Gbps) |
|---|---|
| Support | 1200MHz/40Gbps VRR, QMS, QFT, DSC1.2a, HDR10+, HLG, DV & LLDV, ARC, eARC, ALLM, IMAX |
| Max Resolution | 8K60 444 12b DSC, 4K120 422 12b, 4K120 444/RGB 10b VRR/HDR, 8K30 422 12b, 8K30 444/RGB 10b or 8K60 420 10b |
| TOTAL I/O | 4 HDMI In, 2 HDMI Out, 1 HDMI eARC Out, 1 HDMI Audio Out, 1 RS232, 1 RJ45, 2 IR, 1 Relay Control, 1 Analog Jack & Optical Out. |
| Pass & Upscale TX0 port | FHD 1080p, 2K-DCI or UHD 2160p, 4K-DCI -> UHD 2160p & 4K-DCI or 8K FUHD Pass-thru 40Gbps VRR + FRL5 Upscaling supports any Frame Rate signal up to 120Hz |
| Pass & Downscale TX1 port | 8K FUHD, 4K-DCI or UHD 2160p -> 4K-DCI, UHD 2160p or 2K-DCI, FHD 1080p Pass-thru 40Gbps VRR + FRL0 Downscaling supports any Frame Rate signal up to 120Hz |
| Full HDMI Audio Port | Full HDMI/ARC/eARC Audio extraction and forwarding via 720p/1080p self generated stream to any AVR or sound system HDMI input |
| Full Audio eARC Port | Full Audio up to Atmos MAT or Atmos over TrueHD from HDMI source or ARC/eARC display to ARC or eARC sound system |
| TMDS Switching | Autoswitch support for ATV4K, X1X and others sources continuously sending +5V |
| Conversion | Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP |
| HDCP Conversion | Any HDCP to any HDCP with CST1 support |
| Operating Modes | 40Gbps FRL5 Splitter, Switcher, Upscaler + VRR pass and 18Gbps Matrix + FRL0 Downscaler with CEC, eARC, ARC and EDID management |
| Special Modes | CEC hardware enable/disable for all input ports, CEC Command, HTPC, Disable or replace HDR/HLG, RS232 Macro, DV/LLDV to HDR10 display, Boost HDR nits value, Translate HLG>HDR, HDMI Doctor |
| EDID Modes | Automix with flags and algo, copy sinks, 100 EDID Banks (10 custom) + optional LLDV datablock |
| Control Modes | HDfury Webserver, IR, IP, RS232 for Linux/MAC/Win or push buttons via OLED |
| Input Control | Fully disconnect any input from CEC via software. |
| Output Control | Fully disconnect any output via software when not in use. |
| On Screen Display | ON/OFF/timer with choice of text color + Editable custom text and mask. (cover TV channel logo) |
| OLED | 3.12″ Diagonal, 256×64, 16 blue colors |
| Size | 4.5″L x 7.3″W x 0.9″H - in CM: 11.5 x 18.5 x 2.4 |
| Weight | 520g - 1.15 LBS |
| Input Lag | <1ms (nanoseconds count) |
| Other Info | 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1) |
In the box
- 8K VRROOM Unit
- Power Supply
- IR RX Sensor Cable (2.74m)
- DB9 > RS232 Jack Cable (30cm)
- Jack Optical Cable (1.37m)
